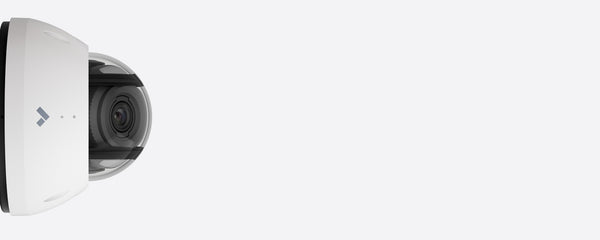

Verkada CD52 Dome Indoor Camera
Verkada CD52 Dome Indoor Camera - LTT Partners
Verkada CD52 Dome Indoor Camera

Verkada

Verkada CD52 Dome Indoor Camera

MFG SKU: CD52-256-HW

Dome cameras are unobtrusive, vandal-resistant, and simple to install.
Cloud License
$199

In stock

Regular price $1,398.00

Tax included

Shipping calculated at checkout

Submit Purchase Order
Request A Quote

Accessories

Product Specifications

Camera Features

Image Sensor 1 / 2.8″ Progressive CMOS
Sensor Resolution1 5MP (2688 x 1944)
Lens Type Varifocal; motorized zoom
Focal Length 2.8 - 8mm
Aperture F1.3 - F2.4
Iris P-Iris
Field of View (after LDC2) Horizontal: 38° - 105° (37° - 84°)
Vertical: 29° - 77° (28° - 68°)
Diagonal: 48° - 126° (45° - 97°)
Sensor Movement Tilt: 60°
Pan: 355°
Rotation: 350°
Shutter Speed 1 / 30 sec. to 1 / 10,000 sec.
Day/Night IR-cut filter for day and night function
IR Cut Filter Yes
IR Range 30m / 98ft
Minimum Illumination 0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
Onboard Storage Capacity: From 256GB to 2TB
Card: MicroSD, SDXC
CPU Ambarella CV25S88

Standard video settings

Compression H.265, H.264
Frame Rate4 24fps
Live Streaming Settings High quality (HQ): 1,000 - 4,500 Kbps (1,500 Kbps default)
Standard quality (SQ) - 600 Kbps
Historical Video Settings Adaptive quality1

Standard audio settings

Audio Supported
Audio Capacity One-way audio
Interface Built-in microphone
Effective Range 5m / 15ft

Power and Network

Power Input3 With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
Power Consumption3 With IR: 37-57V. 0.3-0.2A, 10.98W
Without IR: 37-57V, 0.13-0.08A, 4.74W
Extended temperature range: N/A
Connectivity RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
RTSP RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: Yes

General

Operating Temperature -10°C to 50°C / 14°F to 122°F
Humidity 0 to 90%
Certifications FCC, ICES, CE, UL, CB, NOM, KCC, IK08 impact rating
LED Indicator System power and status indicator
Warranty 10 years
Included Accessories Setup guide, T10 security torx screwdriver, screw pack, mounting template

Mechanical

Weight Camera: 776g / 29.88oz
Mount plate: 140g / 4.94oz
Dimensions Ø: 146mm / 5.75in, H: 104.3mm / 4.11in with mount plate
Ø: 146mm / 5.75in, H: 99.8mm / 3.93in without mount plate
Body Aluminum, plastic dome trim

Software Capabilities

Alerts Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
People Analytics People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis5
Vehicle Analytics Vehicle search, attribute search, motion search, trajectory analysis5
Streaming and storage Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
Sharing and privacy Live Links, live face blur, privacy regions, audit log
Verkada Video Security Camera System

1. All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time.
2. Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3. Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4. Frame rate can be adjusted by support.
5. Both indoor and outdoor variants of the following camera models support trajectory analysis: CM42, CD22/32/42/52/62, CB52/62, CH52-E, CP52-E and CF81-E (in panoramic and ePTZ circle modes only).
Product Resources
Overview PDF Full Installation Guide Mounts for Cameras

Verkada Dome Series

These cameras have powerful edge processing capabilities that deliver advanced computer vision features, including Verkada's People and Vehicle Analytics.

EXPLORE MODELS

Dome Cameras Include

Adaptive Quality

Person of Interest Alerts

Unlimited Cloud Archiving

Up to 10-year Product Warranty

30-Days Cloud Backup

Automatic Firmware & Software Updates

AI-Based Video Analytics

Live-Link Sharing

Play video

Why Verkada?

Verkada is leading the cloud-managed enterprise building security industry by enabling over 17,000 organizations in over 70 countries to protect their people and property in a way that respects individuals' privacy. Designed with simplicity in mind, Verkada offers six product lines that provide unparalleled visibility through a single cloud-based software platform.

LEARN MORE
Play video

Watch Instant Demo

Simplify video security at scale. Verkada replaces obsolete equipment with technology that’s smart, secure and easy to manage. All cameras have built–in onboard storage, including extended storage options with up to 365 days of continuous recording in standard quality.
