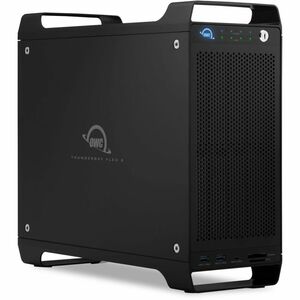

OWC 116TB ThunderBay Flex 8 - 1x 4TB U.2 NVMe, 7x 16TB HDD + Docking + PCIe Expansion Solution
1 NVMe SSD + 7 HDD Maximum Workflow Configuration
Ingest and edit live on a hyper-fast U.2 SSD or use the drive as a swappable transport for fast lab processing while being able to edit and store entire projects on the ultra-capacity HDD RAID 5 array. Plus, enjoy docking convenience and expand your capabilities by selecting a recommended PCIe card or add your own.
Flex Your Way Through Every Workflow
Whether you call it a workflow workhorse, a productivity platform, or a configurable command center, one description of the ThunderBay Flex 8 says it best. It is a groundbreaking workflow solution for digital imaging, VFX, video production, and video editing professionals from the world's leading Thunderbolt accessory manufacturer.
ThunderBay Flex 8 offers eight drive bays that support a mix of SATA/SAS1 and U.2/M.22 NVMe drives for virtually limitless storage capacity. Next, there's a plethora of ports including two Thunderbolt 33, one USB-C, and two USB-A for device docking and charging.
See your work in greater detail by adding up to an 8K display4 via a built-in DisplayPort 1.4 connection. Ingest hi-res images and video via front-side SD 4.0 and CFexpress card readers. And when you want to expand your desktop capabilities, there's a PCIe slot waiting for your specific project needs.
ThunderBay Flex 8 is the one Thunderbolt 3 desktop device that rules them all. With an irresistible economy of scale, this consolidated solution is ideal for anyone waiting for the right moment to invest in Thunderbolt technology.
NVMe. PCIe. What's It Mean to Me?
At the heart of the ThunderBay Flex 8 capabilities are two cutting-edge technology standards: NVMe and PCIe. Non-Volatile Memory Express (NVMe) optimizes the performance of modern flash technology over the Peripheral Component Interconnect Express (PCIe) standard. It enables significantly faster SSD performance with a more direct and optimized path to a computer's processor.
Tying both of these technologies together is the Thunderbolt 3 interface which uses the PCIe bus. This interface offers the fastest data transfers possible on a single cable between computers and peripherals like storage solutions, docks, and expansion devices while also supplying 85W of power to keep your laptop ready to go at a moment's notice.
Muscle-FLEXing Data Performance
Right out of the packaging, the first bay is configured with a U.2 NVMe SSD while the remaining seven bays are configured with high-performance enterprise-class 3.5-inch HDDs. With real-world read/write speeds of 2750MB/s that saturates the Thunderbolt 3 speed threshold, you're ready to handle 4K/8K and even Phantom high-speed files.
Done with the drives but need the docking connectivity?
Eject the ThunderBay Flex 8 drives and any external drives in a single with the free OWC Dock Ejector app. It ensures all data has been written before any drive is unmounted to protect against data loss. It will even warn you from accidentally ejecting an in-use drive.
- Eight drive bays: use a mix of U2/M2 NVMe and SATA drives with real world speeds up to 2,750MB/s
- Future ready: top four bays can use U2 SSDs...the emerging M&E industry storage standard
- Powerfully easy RAID: create, manage, and monitor advanced RAID sets with SoftRAID
- Do more: second Thunderbolt 3 port for daisy chaining devices or additional display(s)
- Connect more: (1) USB-C and (2) USB-A 10Gb/s ports for peripherals and mobile devices
- See more: DisplayPort 14 for connecting up to an 8K display

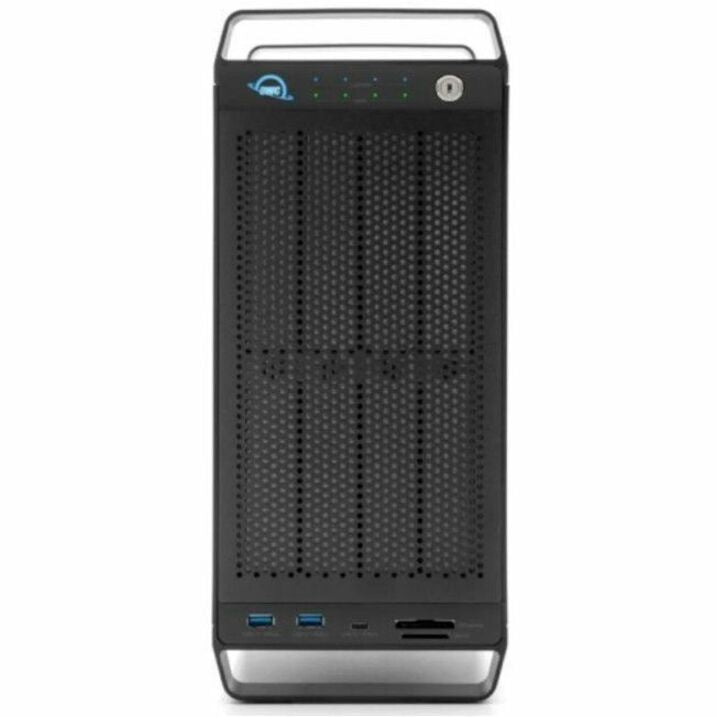

- Fast media ingest: front-side SD 40 and CFexpress card readers with up to 985MB/s speed

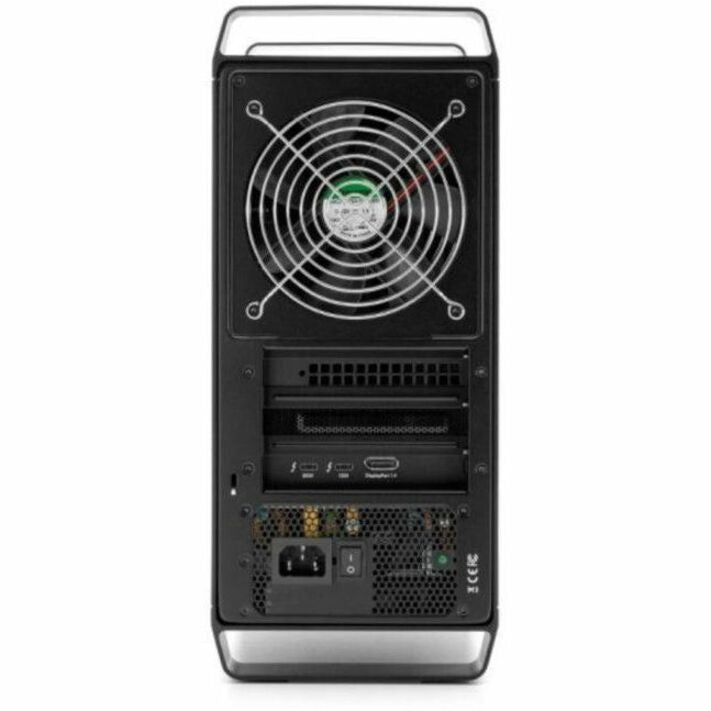

- Play your card: (1) PCIe slot for audio/video capture, networking, SSD storage, hardware RAID card, or I/O card
- OWC 3 Year Limited Warranty
Call for Availability
Shipping calculated at checkout
1 NVMe SSD + 7 HDD Maximum Workflow Configuration
Ingest and edit live on a hyper-fast U.2 SSD or use the drive as a swappable transport for fast lab processing while being able to edit and store entire projects on the ultra-capacity HDD RAID 5 array. Plus, enjoy docking convenience and expand your capabilities by selecting a recommended PCIe card or add your own.
Flex Your Way Through Every Workflow
Whether you call it a workflow workhorse, a productivity platform, or a configurable command center, one description of the ThunderBay Flex 8 says it best. It is a groundbreaking workflow solution for digital imaging, VFX, video production, and video editing professionals from the world's leading Thunderbolt accessory manufacturer.
ThunderBay Flex 8 offers eight drive bays that support a mix of SATA/SAS1 and U.2/M.22 NVMe drives for virtually limitless storage capacity. Next, there's a plethora of ports including two Thunderbolt 33, one USB-C, and two USB-A for device docking and charging.
See your work in greater detail by adding up to an 8K display4 via a built-in DisplayPort 1.4 connection. Ingest hi-res images and video via front-side SD 4.0 and CFexpress card readers. And when you want to expand your desktop capabilities, there's a PCIe slot waiting for your specific project needs.
ThunderBay Flex 8 is the one Thunderbolt 3 desktop device that rules them all. With an irresistible economy of scale, this consolidated solution is ideal for anyone waiting for the right moment to invest in Thunderbolt technology.
NVMe. PCIe. What's It Mean to Me?
At the heart of the ThunderBay Flex 8 capabilities are two cutting-edge technology standards: NVMe and PCIe. Non-Volatile Memory Express (NVMe) optimizes the performance of modern flash technology over the Peripheral Component Interconnect Express (PCIe) standard. It enables significantly faster SSD performance with a more direct and optimized path to a computer's processor.
Tying both of these technologies together is the Thunderbolt 3 interface which uses the PCIe bus. This interface offers the fastest data transfers possible on a single cable between computers and peripherals like storage solutions, docks, and expansion devices while also supplying 85W of power to keep your laptop ready to go at a moment's notice.
Muscle-FLEXing Data Performance
Right out of the packaging, the first bay is configured with a U.2 NVMe SSD while the remaining seven bays are configured with high-performance enterprise-class 3.5-inch HDDs. With real-world read/write speeds of 2750MB/s that saturates the Thunderbolt 3 speed threshold, you're ready to handle 4K/8K and even Phantom high-speed files.
Done with the drives but need the docking connectivity?
Eject the ThunderBay Flex 8 drives and any external drives in a single with the free OWC Dock Ejector app. It ensures all data has been written before any drive is unmounted to protect against data loss. It will even warn you from accidentally ejecting an in-use drive.
- Eight drive bays: use a mix of U2/M2 NVMe and SATA drives with real world speeds up to 2,750MB/s
- Future ready: top four bays can use U2 SSDs...the emerging M&E industry storage standard
- Powerfully easy RAID: create, manage, and monitor advanced RAID sets with SoftRAID
- Do more: second Thunderbolt 3 port for daisy chaining devices or additional display(s)
- Connect more: (1) USB-C and (2) USB-A 10Gb/s ports for peripherals and mobile devices
- See more: DisplayPort 14 for connecting up to an 8K display
- Fast media ingest: front-side SD 40 and CFexpress card readers with up to 985MB/s speed
- Play your card: (1) PCIe slot for audio/video capture, networking, SSD storage, hardware RAID card, or I/O card
- OWC 3 Year Limited Warranty
