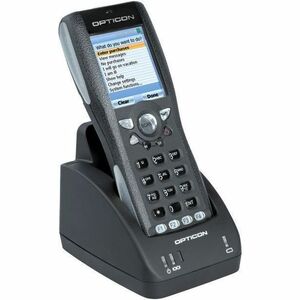

Opticon OPH-1005 Laser Scanner
OPH-1005-SK2
- Application/Usage: Inventory Management,Asset Tracking,Industrial,Retail,Healthcare,Warehouse,Distribution
- Battery Capacity: 1100 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Included: Yes
View all specs
Application/Usage: Inventory Management,Asset Tracking,Industrial,Retail,Healthcare,Warehouse,Distribution
Battery Capacity: 1100 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.70 V
Connectivity Technology: Batch
Display Screen Type: TFT LCD
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Features: Vibration Alert,Moisture Resistant,Lightweight
Flash Memory: 64 MB
Form Factor: Phone-size
Humidity (Non-condensing): 20% to 85%
Ingress Protection (IP) Rating: IP54
Keyboard Type: Alphanumeric
Light Source: Laser
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Battery Run Time: 40 Hour
Memory Card Supported: microSD
Number of Keys: 23
Operating System: Proprietary OS
Operating Temperature: 14°F (-10°C) to 122°F (50°C)
Package Contents:
- OPH-1005 Laser Scanner
- Standard Battery
- RS232/USB Charging Cradle
- Power Supply
- Wrist Strap
Power Supply Included: Yes
Processor Speed: 96 MHz
Product Color: Black
Product Model: OPH-1005
Product Type: Handheld Terminal
Rugged: Yes
Scanning Capability: 1D
Screen Mode: QVGA
Screen Resolution: 320 x 240
Screen Size: 2"
Standard Memory: 4 MB
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
USB: Yes
Weight (With Battery): 4.94 oz
$799

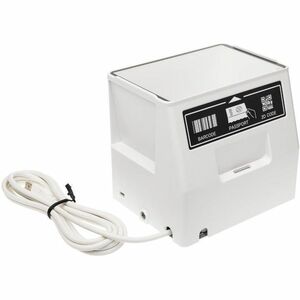

Opticon PR-11 2D CMOS Imager Passport Scanner
PR11WU1-00
- Application/Usage: Passport,Airport Security,Custom,Identification Control
- Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic
2D:
- Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix (ECC200), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code OCR: MRTD comply to ICAO Doc 9303 standard (Passport, Visa-A/B, Official Travel Documents1/2)
Postal Code:
- Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Dutch KIX code, UK Postal, Australian Postal, Postal JPN, POSTNET, PLANET
- Color Family: White
- Connectivity Technology: Cable
View all specs
Application/Usage: Passport,Airport Security,Custom,Identification Control
Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic
2D:
- Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix (ECC200), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code OCR: MRTD comply to ICAO Doc 9303 standard (Passport, Visa-A/B, Official Travel Documents1/2)
Postal Code:
- Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Dutch KIX code, UK Postal, Australian Postal, Postal JPN, POSTNET, PLANET
Color Family: White
Connectivity Technology: Cable
Drop Specification:
2.46 ft (0.75 m) drop onto concrete surface
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Vibration
Host Interface: USB
Humidity (Non-condensing): 10% to 90%
Image Formats: BMP,JPEG
Image Sensor Resolution: 1280 x 800
Image Sensor Type: CMOS,Imager
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 100000 lux
Operating Temperature: 23°F (-5°C) to 113°F (45°C)
Product Color: White
Product Model: PR-11
Product Type: Barcode Scanner
Reading Angle (Pitch): 360°
Reading Angle (Roll): 360°
Reading Angle (Skew): 360°
Scanning Capability: 1D,2D
Scan Mode: Trigger
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
$479
Opticon H-29 Stylus Pen and Cord
28-STYLUS-H28/29
- Compatibility:
Opticon H-28/29 Mobile Computer
- Manufacturer: Opticon Sensors Europe
- Manufacturer Website Address: http://www.opticon.com
- Product Type: Accessory Kit
View all specs
Compatibility:
Opticon H-28/29 Mobile Computer
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Type: Accessory Kit
$39
Opticon L-22X 2D CMOS Image Scanner
L22XWU1-03
- Application/Usage: Hospitality
- Barcode Symbology Supported: BARCODE (1D):
- UPC-A
- UPC-E
- UPC-E1
- UPC-A Add-on
- UPC-E Add-on
- EAN-13
- EAN-8
- EAN-13 Add-on/EAN-8 Add-on
- JAN-8
- JAN-13
- Code 39
- Tri-Optic
- Codabar
- Industrial 2 of 5
- Interleaved 2 of 5
- S-code
- Code 93
- Code 128
- GS1-128
- IATA
- MSI/Plessey
- UK/Plessey
- Telepen
- Code 11
- Matrix 2 of 5
- PDF417
- MicroPDF417
- Codablock F
- QR Code
- Micro QR Code
- Data Matrix (ECC 200)
- Maxi Code (Modes 2 to 5)
- Aztec Code
- Chinese Sensible Code
- OCR-B
- Chinese Post Matrix 2of5
- Korean Postal Authority code
- Japanese Postal
- Intelligent Mail Barcode
- POSTNET
- PLANET
- Netherlands KIX Code
- Australian Postal
- UK Postal
- 4-State Mailmark Barcode
- Color Family: White
- Connectivity Technology: Cable
View all specs
Application/Usage: Hospitality
Barcode Symbology Supported: BARCODE (1D):
- UPC-A
- UPC-E
- UPC-E1
- UPC-A Add-on
- UPC-E Add-on
- EAN-13
- EAN-8
- EAN-13 Add-on/EAN-8 Add-on
- JAN-8
- JAN-13
- Code 39
- Tri-Optic
- Codabar
- Industrial 2 of 5
- Interleaved 2 of 5
- S-code
- Code 93
- Code 128
- GS1-128
- IATA
- MSI/Plessey
- UK/Plessey
- Telepen
- Code 11
- Matrix 2 of 5
- PDF417
- MicroPDF417
- Codablock F
- QR Code
- Micro QR Code
- Data Matrix (ECC 200)
- Maxi Code (Modes 2 to 5)
- Aztec Code
- Chinese Sensible Code
- OCR-B
- Chinese Post Matrix 2of5
- Korean Postal Authority code
- Japanese Postal
- Intelligent Mail Barcode
- POSTNET
- PLANET
- Netherlands KIX Code
- Australian Postal
- UK Postal
- 4-State Mailmark Barcode
Color Family: White
Connectivity Technology: Cable
Drop Specification:
5 ft (1.5 m) drop onto concrete surface
Durability: Dust Resistant
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Ergonomic Design,Curved,Vibration
Flash Memory: 1 GB
Form Factor: Handheld
Host Interface: USB
Humidity (Non-condensing): 0% to 90%
Image Sensor Type: Imager
Ingress Protection (IP) Rating: IP42
Input Current: 340 mA
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 100000 lux
Maximum Element Resolution (Code 39): 20 mil
Maximum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (PDF417): 10 mil
Minimum Element Resolution (Code 39): 5 mil
Minimum Element Resolution (DataMatrix): 6.7 mil
Minimum Element Resolution (PDF417): 6.7 mil
Motion Tolerance: 100 in/s
Operating Temperature: 23°F (-5°C) to 122°F (50°C)
Package Contents:
- L-22X 2D CMOS Image Scanner
- Stand
Processor Speed: 800 MHz
Product Color: White
Product Material: ABS/PC
Product Model: L-22X
Product Type: Barcode Scanner
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Reading Angle (Skew): 65°
Scanning Capability: 1D,2D
Scanning Distance: 12.51"
Scan Mode: Trigger
Stand Included: Yes
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
$299
Opticon Battery
02-BATLION-14
- Application/Usage: Barcode Scanner
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Rechargeable: Yes
- Battery Size: Proprietary Battery Size
View all specs
Application/Usage: Barcode Scanner
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Rechargeable: Yes
Battery Size: Proprietary Battery Size
Compatibility:
Opticon OPH 1004 Barcode Scanner
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Type: Battery
$70

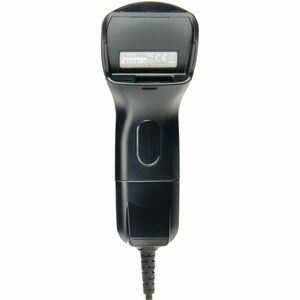

Opticon OPR-3201 Barcode Laser Scanner
OPR3201ZU1-03
- Application/Usage: Retail,Inventory,Logistics
- Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code:
- Chinese Post, Korean Postal Authority code
- Cable Type Included: USB
- Color Family: Black
View all specs
Application/Usage: Retail,Inventory,Logistics
Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code:
- Chinese Post, Korean Postal Authority code
Cable Type Included: USB
Color Family: Black
Connectivity Technology: Cable
Drop Specification:
- 1.5 m / 5 ft drop onto concrete surface
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Notification LED,Vibration,Scan Button
Form Factor: Handheld
Host Interface: USB
Humidity (Non-condensing): 5% to 95%
Ingress Protection (IP) Rating: IP42
Light Source: Laser
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 50000 lux
Maximum Element Resolution (Code 39): 39 mil
Minimum Element Resolution (Code 39): 5 mil
Number of Keys: 1
Operating Temperature: 23°F (-5°C) to 122°F (50°C)
Package Contents:
- OPR-3201 Barcode Laser Scanner
- USB HID Cable
- Stand
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: OPR-3201
Product Type: Barcode Scanner
Reading Angle (Pitch): 35°
Reading Angle (Skew): 50°
Scanner Range: Short Range
Scanning Capability: 1D
Scanning Distance: 15.75"
Scan Mode: Trigger
Scan Pattern: Bi-directional
Scan Rate: 100 scan/s
Stand Included: Yes
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
$159

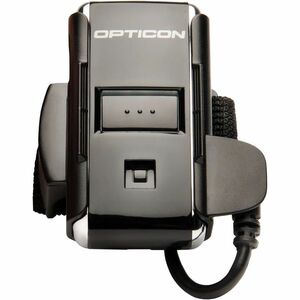

Opticon RS-2006 Bluetooth Ring Barcode Scanner
RS2006-00
- Application/Usage: Transportation,Logistics,Warehouse,Manufacturing,Retail
- Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 DataBar (RSS)
- IATA
- Industrial 2of5
- Interleaved 2of5
- ISBN-ISMN-ISSN
- Matrix 2of5
- MSI/ Plessey-UK/Plessey
- S-Code
- Telepen
- Tri-Optic
Postal Code:
- Chinese Post, Korean Postal Authority code
- Battery Capacity: 240 mAh
- Battery Chemistry: Lithium Polymer (Li-Polymer)
View all specs
Application/Usage: Transportation,Logistics,Warehouse,Manufacturing,Retail
Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 DataBar (RSS)
- IATA
- Industrial 2of5
- Interleaved 2of5
- ISBN-ISMN-ISSN
- Matrix 2of5
- MSI/ Plessey-UK/Plessey
- S-Code
- Telepen
- Tri-Optic
Postal Code:
- Chinese Post, Korean Postal Authority code
Battery Capacity: 240 mAh
Battery Chemistry: Lithium Polymer (Li-Polymer)
Bluetooth: Yes
Color Family: Black
Connectivity Technology: Wireless
Drop Specification:
5 ft (1.5 m) drop onto concrete surface
Durability: Impact Resistant,Dust Resistant
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Ergonomic Design,Vibration
Flash Memory: 512 KB
Form Factor: Wearable
Host Interface: USB
Humidity (Non-condensing): 20% to 85%
Ingress Protection (IP) Rating: IP42
Light Source: Laser
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 80000 lux
Number of Keys: 2
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Platform Supported: iOS,PC,Android
Product Color: Black
Product Line: Companion
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: RS-2006
Product Type: Barcode Scanner
Reading Angle (Pitch): 25°
Reading Angle (Roll): 20°
Reading Angle (Skew): 40°
Scanning Capability: 1D
Scan Mode: Trigger
Scan Rate: 100 scan/s
Standard Memory: 96 KB
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
$449
Opticon Power Supply
32-00601-00
- Compatibility:
Opticon OPL Series Wireless Bluetooth Barcode Laser Scanner
- Manufacturer: Opticon Sensors Europe
- Manufacturer Website Address: http://www.opticon.com
- Output Voltage: 6 V DC
View all specs
Compatibility:
Opticon OPL Series Wireless Bluetooth Barcode Laser Scanner
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Output Voltage: 6 V DC
Product Type: Power Supply
$29
Opticon Scanner Stand
28-3201STD-02
- Application/Usage: Barcode Scanner
- Color Family: White
- Compatibility: Opticon OPR-3201 Barcode Scanner
- Manufacturer: Opticon Sensors Europe
View all specs
Application/Usage: Barcode Scanner
Color Family: White
Compatibility: Opticon OPR-3201 Barcode Scanner
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Color: White
Product Type: Scanner Stand
$39

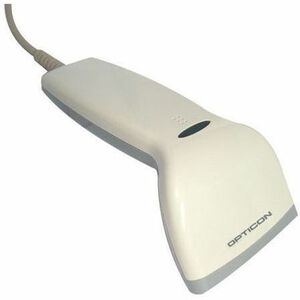

Opticon C-37 Barcode Scanner Kit
C37WR1-00
- Application/Usage: Healthcare,Retail,Self-checkout,Commercial Service
- Barcode Symbology Supported:
1D:
- AN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plesse
Postal Code:
- Chinese Post
- Korean Postal Authority Code
- Color Family: White
- Connectivity Technology: Cable
View all specs
Application/Usage: Healthcare,Retail,Self-checkout,Commercial Service
Barcode Symbology Supported:
1D:
- AN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plesse
Postal Code:
- Chinese Post
- Korean Postal Authority Code
Color Family: White
Connectivity Technology: Cable
Drop Specification:
- 1.5 m / 5 ft drop onto concrete surface
Durability: Dust Resistant,Water Resistant
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Features: Notification LED,Vibration,Ergonomic Design
Form Factor: Handheld
Host Interface: Serial,USB,Keyboard Wedge
Humidity (Non-condensing): 5% to 95%
Image Sensor Type: CCD,Imager
Ingress Protection (IP) Rating: IP42
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 10000 lux
Number of Keys: 1
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Product Color: White
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: C-37
Product Type: Barcode Scanner Kit
Reading Angle (Pitch): 30°
Reading Angle (Skew): 70°
Rugged: Yes
Scanner Range: Standard Range
Scanning Capability: 1D
Scanning Distance: 0.59"
Scan Mode: Trigger
Scan Pattern: Linear
Scan Rate: 200 scan/s
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
$139
Opticon Cradle
CRD1004-01
- Charging Capability: Yes
- Compatibility:
Opticon OPH-1005 Barcode Scanner
- Connectivity Technology: Wired
- Device Supported: Bar Code Scanner
View all specs
Charging Capability: Yes
Compatibility:
Opticon OPH-1005 Barcode Scanner
Connectivity Technology: Wired
Device Supported: Bar Code Scanner
Host Interface: USB
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Network (RJ-45): Yes
Product Type: Cradle
Synchronizing Capability: Yes
$249
Opticon Battery
02-BATLION-39
- Application/Usage: Mobile Computer
- Battery Rechargeable: Yes
- Battery Size: Proprietary Battery Size
- Compatibility:
Opticon H-28 Touch Screen Mobile Computer
View all specs
Application/Usage: Mobile Computer
Battery Rechargeable: Yes
Battery Size: Proprietary Battery Size
Compatibility:
Opticon H-28 Touch Screen Mobile Computer
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Type: Battery
$239
Opticon Work Gloves
GL3000L-00
- Application/Usage: Wearable Barcode Scanner
- Compatibility:
Opticon 2D Scanner
- Manufacturer: Opticon Sensors Europe
- Manufacturer Website Address: http://www.opticon.com
View all specs
Application/Usage: Wearable Barcode Scanner
Compatibility:
Opticon 2D Scanner
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Type: Work Gloves
$600
Opticon L-22X Barcode Scanner Kit
L22XBU1-00
- Application/Usage: Retail,Commercial Service,Self-checkout,Warehouse,Healthcare
- Barcode Symbology Supported:
1D:
- UPC-A
- UPC-E
- UPC-E1
- UPC-A Add-on
- UPC-E Add-on
- EAN-13
- EAN-8
- EAN-13 Add-on/EAN8 Add-on
- JAN-8
- JAN-13
- Code 39
- Tri-Optic
- Codabar
- Industrial 2 of 5
- Interleaved 2 of 5, S-code
- Code 93
- Code 128
- GS1-128
- IATA
- MSI/Plessey
- UK/Plessey
- Telepen
- Code 11
- Matrix 2 of 5
Postal code:
- Chinese Post Matrix 2of5
- Korean Postal Authority code
- Japanese Postal
- Intelligent Mail Barcode
- POSTNET
- PLANET
- Netherlands KIX Code
- Australian Postal
- UK Postal
- 4-State Mailmark Barcode
2D:
- PDF417
- MicroPDF417
- Codablock F
- QR Code
- Micro QR Code
- Data Matrix (ECC 200)
- Maxi Code (Modes 2 to 5)
- Aztec Code
- Chinese Sensible Code
- OCR-B
- Cable Type Included: USB
- Color Family: Black
View all specs
Application/Usage: Retail,Commercial Service,Self-checkout,Warehouse,Healthcare
Barcode Symbology Supported:
1D:
- UPC-A
- UPC-E
- UPC-E1
- UPC-A Add-on
- UPC-E Add-on
- EAN-13
- EAN-8
- EAN-13 Add-on/EAN8 Add-on
- JAN-8
- JAN-13
- Code 39
- Tri-Optic
- Codabar
- Industrial 2 of 5
- Interleaved 2 of 5, S-code
- Code 93
- Code 128
- GS1-128
- IATA
- MSI/Plessey
- UK/Plessey
- Telepen
- Code 11
- Matrix 2 of 5
Postal code:
- Chinese Post Matrix 2of5
- Korean Postal Authority code
- Japanese Postal
- Intelligent Mail Barcode
- POSTNET
- PLANET
- Netherlands KIX Code
- Australian Postal
- UK Postal
- 4-State Mailmark Barcode
2D:
- PDF417
- MicroPDF417
- Codablock F
- QR Code
- Micro QR Code
- Data Matrix (ECC 200)
- Maxi Code (Modes 2 to 5)
- Aztec Code
- Chinese Sensible Code
- OCR-B
Cable Type Included: USB
Color Family: Black
Connectivity Technology: Cable
Drop Specification:
- 1.8 m / 6 ft drop onto concrete surface
Durability: Dust Resistant,Water Resistant
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Features: Notification LED,Vibration,Ergonomic Design,Scan Button
Field of View (Horizontal): 38°
Field of View (Vertical): 26°
Form Factor: Handheld
Host Interface: Serial,USB
Humidity (Non-condensing): 5% to 90%
Illumination Color: White
Illumination Type: LED
Image Sensor Resolution: 640 x 480
Image Sensor Type: Imager,CMOS
Ingress Protection (IP) Rating: IP42
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 100000 lux
Maximum Element Resolution (Code 39): 20 mil
Maximum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (PDF417): 10 mil
Minimum Element Resolution (Code 39): 5 mil
Minimum Element Resolution (DataMatrix): 6.7 mil
Minimum Element Resolution (PDF417): 6.7 mil
Operating Temperature: 23°F (-5°C) to 122°F (50°C)
Package Contents:
- L-22X Barcode Scanner
- USB Cable
- Stand
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: L-22X
Product Type: Barcode Scanner Kit
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Reading Angle (Skew): 65°
Scanner Range: Standard Range
Scanning Capability: 1D,2D
Scanning Distance: 12.51"
Scan Mode: Trigger
Scan Pattern: Area
Stand Included: Yes
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
$299
Opticon Scanner Stand
28-STD2001B-01
- Application/Usage: Barcode Scanner
- Compatibility: Opticon OPR-2001 Barcode Scanner
- Manufacturer: Opticon Sensors Europe
- Manufacturer Website Address: http://www.opticon.com
View all specs
Application/Usage: Barcode Scanner
Compatibility: Opticon OPR-2001 Barcode Scanner
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Type: Scanner Stand
$39
Opticon C37 Handheld Bar Code Reader
C37BU1-00
- Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plessey
Postal Code:
- Chinese Post
- Korean Postal Authority Code
- Connectivity Technology: Cable
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
View all specs
Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plessey
Postal Code:
- Chinese Post
- Korean Postal Authority Code
Connectivity Technology: Cable
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Form Factor: Handheld
Host Interface: USB
Image Sensor Type: CCD
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Color: Black
Product Model: C37
Product Type: Barcode Scanner
Scan Pattern: Linear
Scan Rate: 200 scan/s
$139
Opticon Cradle
CRDH28-01
- Charging Capability: Yes
- Compatibility:
Opticon H-28 Mobile Computer
- Connectivity Technology: Docking/Wired
- Country of Origin: Taiwan
View all specs
Charging Capability: Yes
Compatibility:
Opticon H-28 Mobile Computer
Connectivity Technology: Docking/Wired
Country of Origin: Taiwan
Device Supported: Mobile Computer
Host Interface: USB
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Number Of Devices Charged Simultaneously: 1
Product Type: Cradle
$259
ARCHIVED Opticon C-37 Barcode Scanner Kit
C37WU1-00
- Application/Usage: Healthcare,Retail,Self-checkout,Commercial Service
- Barcode Symbology Supported:
1D:
- AN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plesse
Postal Code:
- Chinese Post
- Korean Postal Authority Code
- Cable Type Included: USB
- Color Family: White
View all specs
Application/Usage: Healthcare,Retail,Self-checkout,Commercial Service
Barcode Symbology Supported:
1D:
- AN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plesse
Postal Code:
- Chinese Post
- Korean Postal Authority Code
Cable Type Included: USB
Color Family: White
Connectivity Technology: Cable
Drop Specification:
- 1.5 m / 5 ft drop onto concrete surface
Durability: Dust Resistant,Water Resistant
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Features: Notification LED,Vibration,Ergonomic Design
Form Factor: Handheld
Host Interface: USB,Keyboard Wedge
Humidity (Non-condensing): 5% to 95%
Image Sensor Type: CCD,Imager
Ingress Protection (IP) Rating: IP42
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 10000 lux
Number of Keys: 1
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Package Contents:
- C-37 Barcode Scanner
- USB Cable
Product Color: White
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: C-37
Product Type: Barcode Scanner Kit
Reading Angle (Pitch): 30°
Reading Angle (Skew): 70°
Rugged: Yes
Scanner Range: Standard Range
Scanning Capability: 1D
Scanning Distance: 0.59"
Scan Mode: Trigger
Scan Pattern: Linear
Scan Rate: 200 scan/s
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
$139
Opticon H-31 Handheld Terminal
H31B-EN-K01
- Application/Usage: Field Sales/Service,Inventory Management,Logistics
- Battery Capacity: 4000 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Included: Yes
View all specs
Application/Usage: Field Sales/Service,Inventory Management,Logistics
Battery Capacity: 4000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.70 V
Bluetooth: Yes
Bluetooth Standard: Bluetooth 4.2 + LE
Brightness: 520 Nit
Connectivity Technology: Wireless
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Features: Gorilla Glass,Fast Charging,Moisture Resistant,Vibration Alert,Water Resistant
Flash Memory: 64 GB
Form Factor: Phone-size
Humidity (Non-condensing): 5% to 90%
Illumination Color: White
Illumination Type: LED
Image Sensor Resolution: 640 x 480
Image Sensor Type: Imager
Ingress Protection (IP) Rating: IP67
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Memory Card Supported: microSD
Multi-touch Screen: Yes
Near Field Communication (NFC): Yes
Operating System: Android 9.0 Pie
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Package Contents:
- H-31 Handheld Terminal
- Battery
- Hand Strap
- USB Cable
- Power Supply
Power Supply Included: Yes
Processor Core: Octa-core (8 Core)
Processor Model: SDM450
Processor Speed: 1.80 GHz
Processor Type: Cortex A53
Product Color: Black
Product Model: H-31
Product Type: Handheld Terminal
Rear Camera: Yes
Rear Camera Resolution: 16 Megapixel
Removable Battery: Yes
Rugged: Yes
Scanning Capability: 1D,2D
Scan Rate: 100 frames/second
Screen Mode: Full HD
Screen Size: 5"
Sensor Type: Accelerometer,Light Sensor,Gyroscope,eCompass,Proximity
Standard Memory: 4 GB
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
Touchscreen: Yes
USB: Yes
Weight (With Battery): 11.25 oz
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac
$1,299
Opticon OPC-3301i CCD Barcode Scanner
OPC3301I-00
- Application/Usage: Industrial,Retail,Healthcare,Warehouse,Distribution,Transportation,Logistics
- Barcode Symbology Supported:
Barcode (1D):
- JAN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 DataBar (RSS)
- IATA
- Industrial 2of5
- Interleaved 2of5
- ISBN-ISSN -ISMN
- Matrix 2of5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plessey
Postal Code:
- Chinese Post
- Korean Postal Authority code
- Battery Capacity: 1100 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
View all specs
Application/Usage: Industrial,Retail,Healthcare,Warehouse,Distribution,Transportation,Logistics
Barcode Symbology Supported:
Barcode (1D):
- JAN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 DataBar (RSS)
- IATA
- Industrial 2of5
- Interleaved 2of5
- ISBN-ISSN -ISMN
- Matrix 2of5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plessey
Postal Code:
- Chinese Post
- Korean Postal Authority code
Battery Capacity: 1100 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Bluetooth: Yes
Color Family: Black
Connectivity Technology: Wireless
Country of Origin: Japan
Drop Specification:
5 ft (1.5 m) drop onto concrete surface
Durability: Dust Resistant
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Vibration,Ergonomic Design
Flash Memory: 1 MB
Form Factor: Handheld
Humidity (Non-condensing): 20% to 85%
Image Sensor Type: CCD,Linear
Ingress Protection (IP) Rating: IP42
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 100000 lux
Maximum Battery Recharge Time: 3 Hour
Maximum Element Resolution (Code 39): 40 mil
Minimum Element Resolution (Code 39): 5 mil
Number of Keys: 1
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: OPC-3301i
Product Type: Barcode Scanner
Reading Angle (Pitch): 50°
Reading Angle (Roll): 25°
Reading Angle (Skew): 65°
Scanning Capability: 1D
Scanning Distance: 19.69"
Scan Mode: Trigger
Scan Rate: 300 scan/s
Standard Memory: 1 MB
Standby Current: 15 mA
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
$299
Opticon OPL-9815 Mobile Data Collector
OPL-9815-02
- Application/Usage: Logistics,Warehouse,Retail
- Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN -128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal Codes:
- Chinese Post, Korean Postal Authority code
- Battery Capacity: 1100 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
View all specs
Application/Usage: Logistics,Warehouse,Retail
Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN -128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal Codes:
- Chinese Post, Korean Postal Authority code
Battery Capacity: 1100 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Bluetooth: Yes
Color Family: Black
Connectivity Technology: Wireless
Display Screen: Yes
Drop Specification:
5 ft (1.5 m) drop onto concrete surface
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: GPS
Flash Memory: 1 MB
Humidity (Non-condensing): 20% to 85%
Ingress Protection (IP) Rating: IP54
Keypad Type: Alphanumeric
Light Source: Laser
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 50000 lux
Maximum Battery Run Time: 72 Hour
Maximum Element Resolution (Code 39): 39 mil
Minimum Element Resolution (Code 39): 6 mil
Number of Keys: 18
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Processor Speed: 96 MHz
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: OPL-9815
Product Type: Barcode Scanner
Reading Angle (Pitch): 25°
Reading Angle (Skew): 50°
Rugged: Yes
Scanning Capability: 1D
Scanning Distance: 11.81"
Scan Rate: 100 scan/s
Standard Memory: 512 MB
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
$499
Opticon RS-3000 2D CMOS Imager
RS3000-00
- Application/Usage: Warehouse,Logistics,Retail
- Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code:
- Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D:
- Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data matrix (ECC200), Passport MRZ (OCR-B), maxi Code (mode 2~5), MicroPDF417, MicroQR Code, PDF417, QR Code
- Battery Capacity: 400 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
View all specs
Application/Usage: Warehouse,Logistics,Retail
Barcode Symbology Supported:
1D:
- JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code:
- Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D:
- Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data matrix (ECC200), Passport MRZ (OCR-B), maxi Code (mode 2~5), MicroPDF417, MicroQR Code, PDF417, QR Code
Battery Capacity: 400 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Bluetooth: Yes
Connectivity Technology: Cable/Wireless
Drop Specification:
- 1.5 m / 5 ft drop onto concrete surface
Durability: Impact Resistant
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Notification LED,Vibration,Scan Button,Ergonomic Design
Field of View (Horizontal): 38°
Field of View (Vertical): 29°
Flash Memory: 512 KB
Form Factor: Wearable
Host Interface: USB
Humidity (Non-condensing): 5% to 90%
Illumination Color: White
Illumination Type: LED
Image Sensor Resolution: 640 x 480
Ingress Protection (IP) Rating: IP42
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Maximum Ambient Light: 100000 lux
Maximum Battery Run Time: 27 Hour
Maximum Element Resolution (Code 39): 20 mil
Minimum Element Resolution (Code 39): 5 mil
Number of Keys: 2
Operating Temperature: -4°F (-20°C) to 140°F (60°C)
Platform Supported: iOS,Android
Product Line: Companion
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Product Model: RS-3000
Product Type: Barcode Scanner
Reading Angle (Pitch): 65°
Reading Angle (Skew): 65°
Scanning Capability: 1D,2D
Scanning Distance: 17.13"
Scan Mode: Trigger
Scan Pattern: Area
Standard Memory: 96 KB
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
$495
Opticon H-33 Handheld Terminal
H33B-EN-K02
- Battery Capacity: 4000 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Included: Yes
- Battery Voltage: 3.70 V
View all specs
Battery Capacity: 4000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.70 V
Bluetooth: Yes
Bluetooth Standard: Bluetooth 4.2 + LE
Brightness: 520 Nit
Cellular Data Connectivity Technology: LTE,4G,3G,2G,4G LTE
Cellular Network Supported: GSM,WCDMA
Connectivity Technology: Wireless
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Features: Gorilla Glass,Fast Charging,Moisture Resistant,Vibration Alert,Water Resistant
Flash Memory: 64 GB
Form Factor: Phone-size
Global Navigation Satellite System (GNSS) Supported: BeiDou/GLONASS/QZSS
GPS: Yes
Humidity (Non-condensing): 5% to 90%
Illumination Color: White
Illumination Type: LED
Image Sensor Resolution: 640 x 480
Image Sensor Type: Imager
Ingress Protection (IP) Rating: IP67
Light Source: LED
Limited Warranty: 2 Year
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Memory Card Supported: microSD
Multi-touch Screen: Yes
Near Field Communication (NFC): Yes
Operating System: Android 9.0 Pie
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Package Contents:
- H-33 Handheld Terminal
- Standard Battery
- Hand Strap
- USB C Cable
- Power Supply
Power Supply Included: Yes
Processor Core: Octa-core (8 Core)
Processor Model: SDM450
Processor Speed: 1.80 GHz
Processor Type: Cortex A53
Product Color: Black
Product Model: H-33
Product Type: Handheld Terminal
Rear Camera: Yes
Rear Camera Resolution: 16 Megapixel
Removable Battery: Yes
Rugged: Yes
Scanning Capability: 1D,2D
Scan Rate: 100 frames/second
Screen Mode: Full HD
Screen Size: 5"
Sensor Type: Accelerometer,Light Sensor,Gyroscope,eCompass,Proximity
Standard Memory: 4 GB
Storage Temperature: -22°F (-30°C) to 140°F (60°C)
Touchscreen: Yes
USB: Yes
Weight (With Battery): 11.25 oz
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac
$1,299
Opticon Cradle
CHG3201B-01
- Charging Capability: Yes
- Color Family: Black
- Compatibility:
Opticon Barcode Scanners:
- OPC-3301I
- OPI-3301I
- Device Supported: Bar Code Scanner
View all specs
Charging Capability: Yes
Color Family: Black
Compatibility:
Opticon Barcode Scanners:
- OPC-3301I
- OPI-3301I
Device Supported: Bar Code Scanner
Manufacturer: Opticon Sensors Europe
Manufacturer Website Address: http://www.opticon.com
Product Color: Black
Product Type: Cradle
$90
