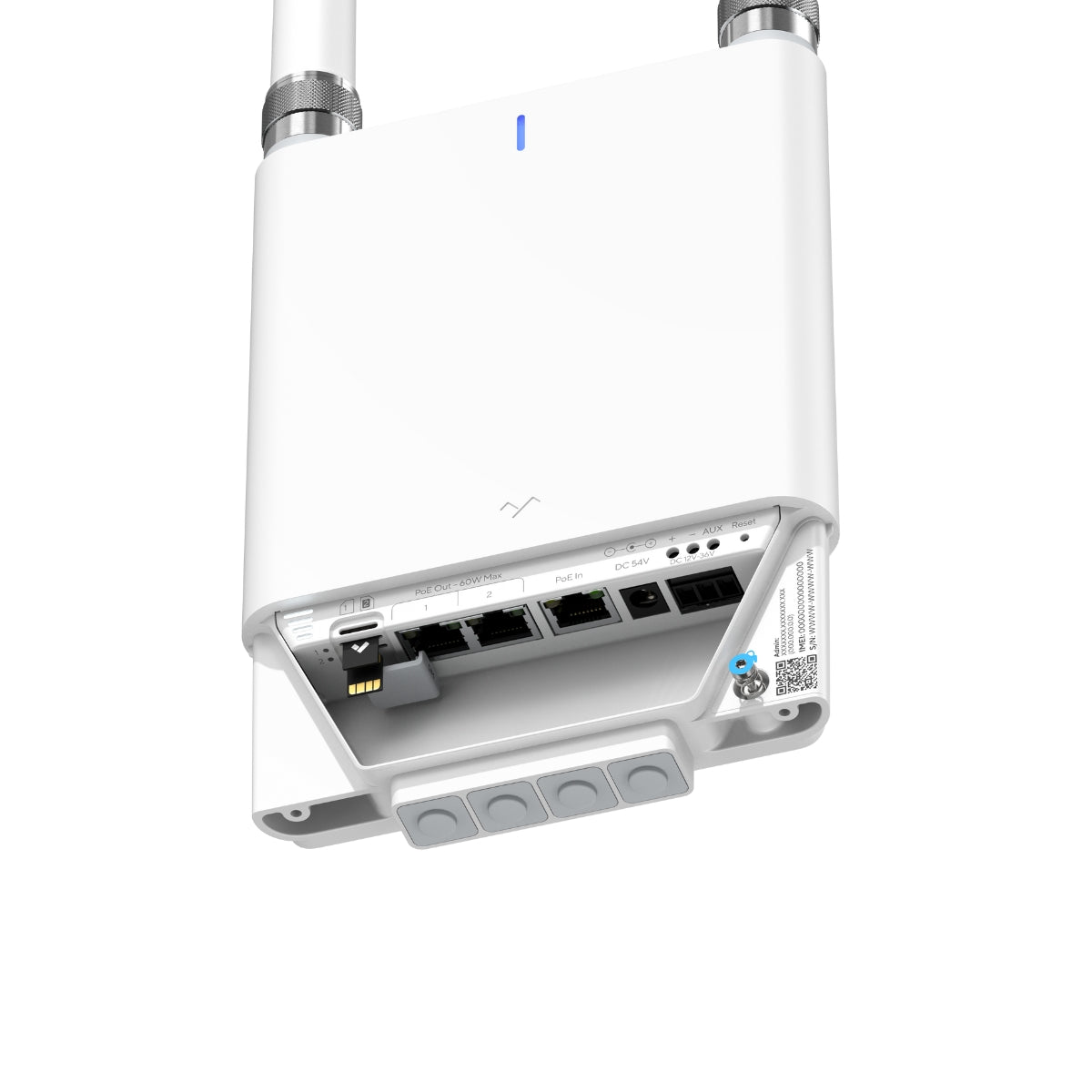

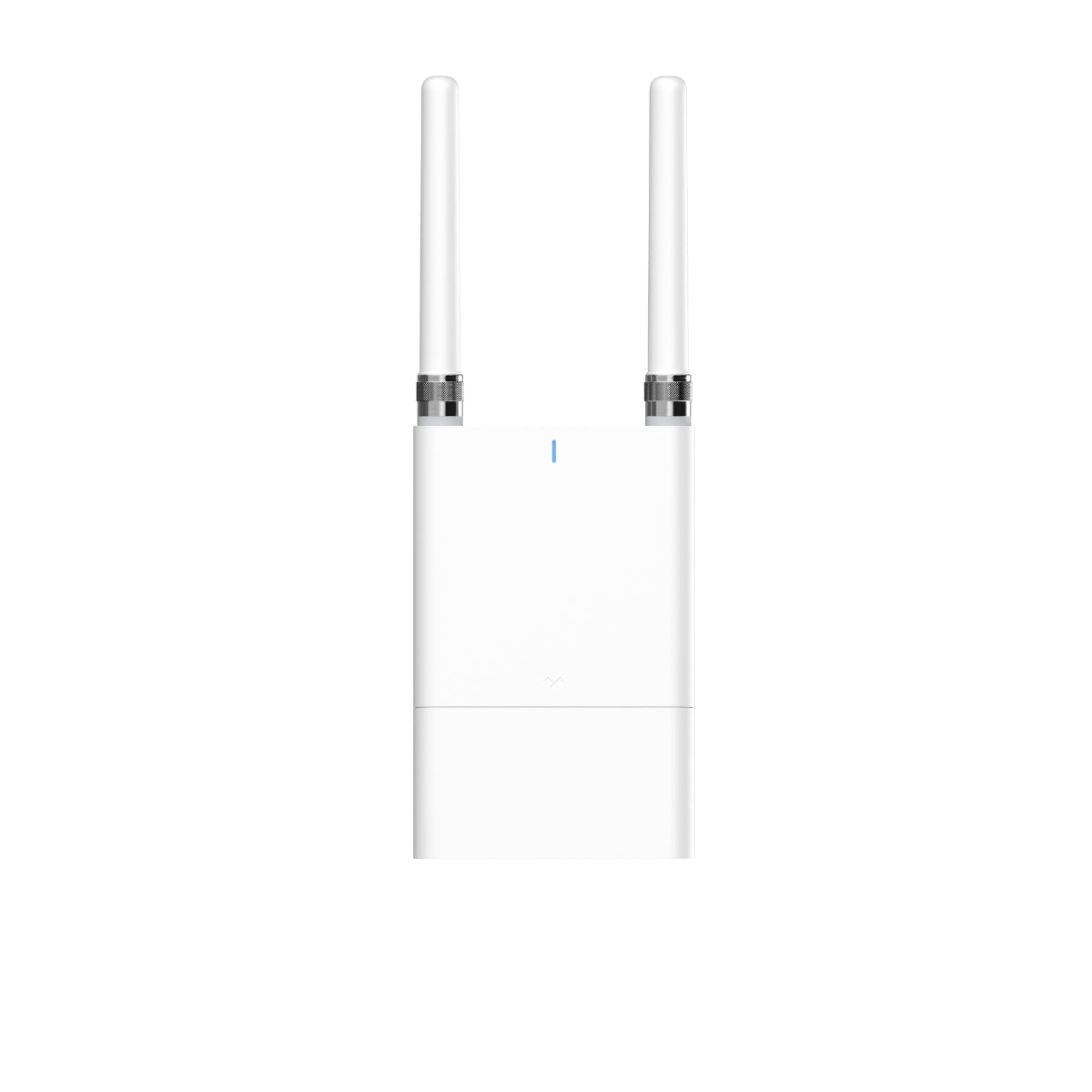

Verkada GC31-E Outdoor Cellular Gateway

MFG SKU: GC31-E-HW

The GC31 Cellular Gateway makes it simple to deploy Verkada anywhere. Simply feed the GC31 any power input and it will send both power and data to any Verkada device via PoE.

Cellular Gateway License
$299

In stock

Regular price $1,598.00

Tax included

Shipping calculated at checkout

Accessories

Product Specifications

Cellular

Connectivity LTE cellular CAT 12
MIMO 2x2 MIMO
SIM 2 SIM slots (Nano 4FF)
Dual SIM/auto SIM failover
Bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28. B29, B30, B38, B39, B40, B41, B42, B43, B48 (CBRS), B66, B71
Antennas 2 x N Type

Inputs and outputs

Ethernet 1 x GigE RJ45 input
2 x GigE RJ45 outputs
Power Output 2 x PoE RJ45 outputs @ 60W total
(2 x IEEE 802.3at Type 2 PoE+ 30W or 1 x IEEE 802.3bt Type 3 PoE++ 60W)
Power Input 54VDC Barrel Jack (6.5/3mm OD/ID)
IEEE 802.3bt Type 4 PoE++ 90W 12-36VDC Terminal Block
GNSS/GPS Passive GNSS
(GPS, GLONASS, and Galileo)

Compliance and Certifications

RF and EMC FCC, IC (for CA), CE (for EU)1
Cellular2 PTCRB, Verizon, AT&T
Safety UL/IEC 62368-1, CSA C22.2 No. 62368-1
Weather Rating IP66

General

Operating Temperature -40°C to 50°C / -40°F to 122°F
Weight 1.4kg / 3.0lbs
Humidity 5-90% RH non-condensing
LEDs 1 status LED, 2 SIM indicator LEDs, 4 signal strength LEDs
Mounting Options Wall or pole mount
Warranty 10 years

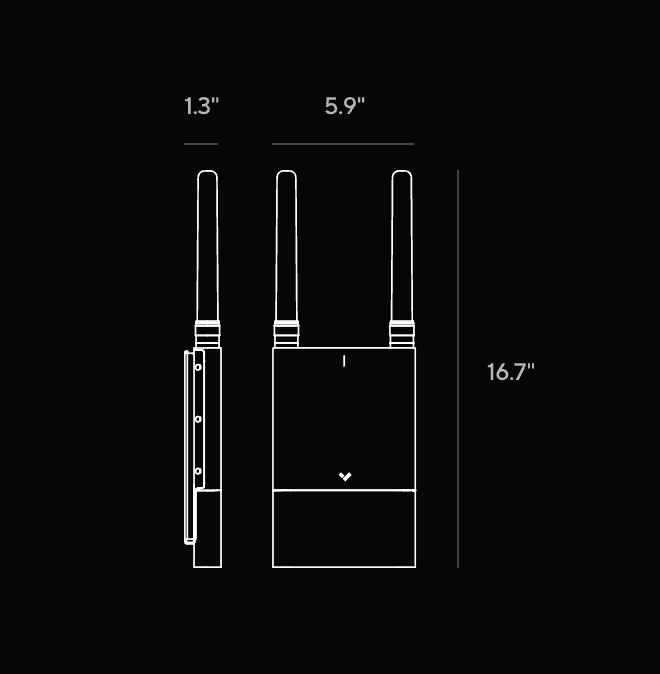

Dimensions Main Unit:
Length: 243mm / 9.6in
Width: 148mm / 5.9in
Height: 33mm / 1.3in
Antenna:
Ø: 25mm / 1.0in
L: 179mm / 7.1in
Included Accessories 2 x N type antennas, mount plate, 2 x pole straps, 4 x wall anchors, 4 x wall screws, T10 security torx screwdriver, 4 x 7-9 mm cable grommets, 1 x 3-5mm cable grommet, 1 x 3-wire cable grommet

1 CE certification expected in Spring 2024.
2 Cellular carriers and operators throughout the world may only require telecom industry certifications such as PTCRB to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Verkada completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.
Product Resources
Overview PDF Installation Guide
