Verkada CM22 Mini Camera - LTT Partners
Verkada CM22 Mini Camera - LTT Partners

Verkada

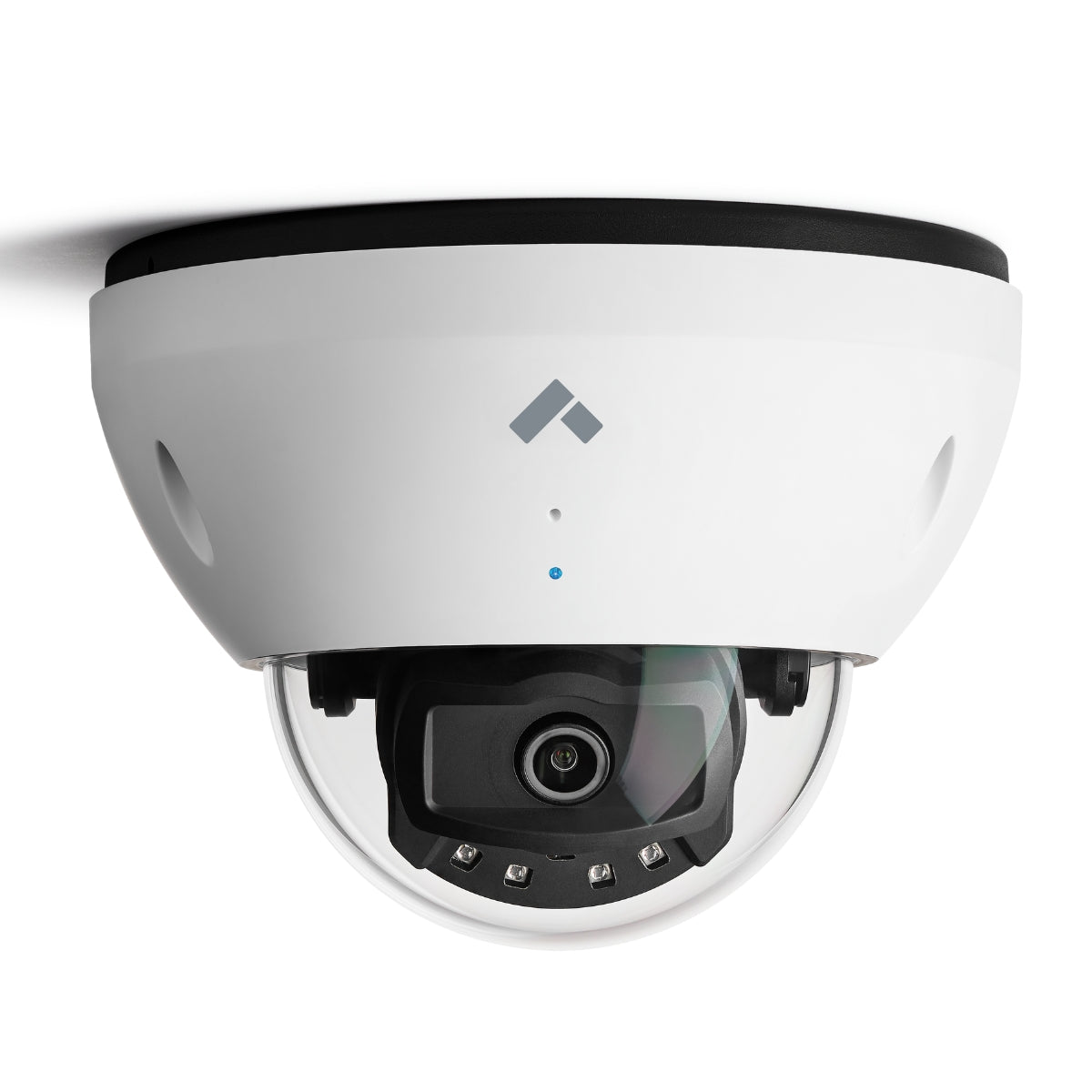

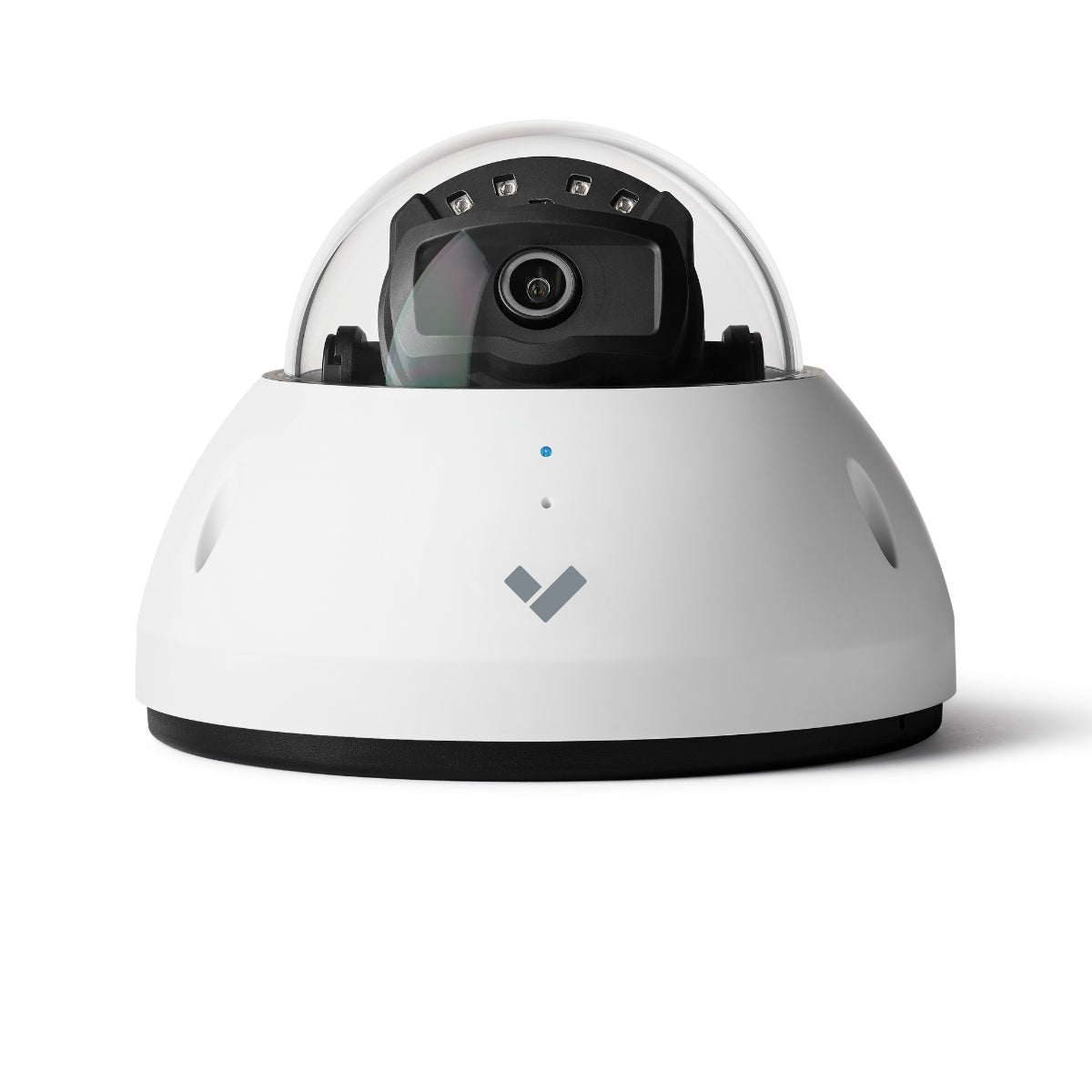

Verkada CM22 Mini Camera

Designed for flexibility without compromising on image quality, Verkada’s Mini Series delivers enterprise-grade security with powerful performance for advanced edge-based analytics.
Cloud License
$199

In stock

Regular price $898.00

Shipping calculated at checkout

Accessories

Product Specifications

Camera Features

Image Sensor 1 / 2.8″ Progressive CMOS
Sensor Resolution1 3MP (2048 x 1536)
Lens Type Fixed
Focal Length 2.8mm
Aperture F1.6
Iris Fixed
Field of View (after LDC2) Horizontal: 95° (79°)
Vertical: 69° (62°)
Diagonal: 130° (96°)
Sensor Movement Tilt: 60°
Pan: 350
Rotation: 180°
Shutter Speed 1 / 30 sec. to 1 / 10,000 sec.
Day/Night IR-cut filter for day and night function
IR Cut Filter Yes
IR Range 10m / 33ft
Minimum Illumination 0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
Onboard Storage Capacity: From 256GB to 2TB
Card: MicroSD, SDXC
CPU Ambarella CV25S88

Standard video settings

Compression H.265, H.264
Frame Rate4 24fps
Live Streaming Settings High quality (HQ): 1,000 - 4,500 Kbps (1,500 Kbps default)
Standard quality (SQ) - 600 Kbps
Historical Video Settings Adaptive quality1
WDR Technology 104 dB dynamic range, true WDR, dual exposure

Standard audio settings

Audio Not Supported

Power and Network

Power Input3 With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
Power Consumption3 With IR: 37-57V, 0.165-0.107A, 6.12W
Without IR: 37-57V, 0.086-0.056A, 3.21W
Extended temperature range: N/A
Connectivity RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
RTSP RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: No

General

Operating Temperature -10°C to 50°C / 14°F to 122°F
Humidity 0 to 90%
Certifications FCC, ICES, RCM, VCCI, CE, UKCA, EN 50155 railway compliance, UL/cUL/IEC 62368-1, NOM
LED Indicator System power and status indicator
Warranty 5 years
Included Accessories Setup guide, T10 security torx screwdriver, 3x wingnuts, 3x washers, 3x TP4.0 mount screws, 3x M4 wall screws, 3x wall anchors

Mechanical

Weight Camera: 290g / 10.23oz
Mount plate: 98g / 3.46oz
Dimensions Ø: 124.5mm / 4.9in, H: 71.5mm / 2.8in
Body Aluminum, plastic dome trim

Software Capabilities

Alerts Camera status, motion detection, people detection, vehicle detection, crowd detection, line-crossing detection, loitering detection
People Analytics Motion search, trajectory analysis
Vehicle Analytics Motion search, trajectory analysis
Streaming and storage Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
Sharing and privacy Live Links, live face blur, privacy regions, audit logg

1. All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time.
2. Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3. Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4. Frame rate can be adjusted by support.
5. Both indoor and outdoor variants of the following camera models support trajectory analysis: CM42, CD22/32/42/52/62, CB52/62, CH52-E, CP52-E and CF81-E (in panoramic and ePTZ circle modes only).
Product Resources
Overview PDF Full Installation Guide Mounts for Cameras

Verkada Mini Series

Designed for flexibility without compromising on image quality, Verkada’s Mini Series delivers enterprise-grade security with powerful performance for advanced edge-based analytics.

EXPLORE CAMERA MODELS

Mini Cameras Include

Adaptive Quality

Person of Interest Alerts

Unlimited Cloud Archiving

Up to 10-year Product Warranty

30-Days Cloud Backup

Automatic Firmware & Software Updates

AI-Based Video Analytics

Live-Link Sharing

Play video

Why Verkada?

Verkada is leading the cloud-managed enterprise building security industry by enabling over 17,000 organizations in over 70 countries to protect their people and property in a way that respects individuals' privacy. Designed with simplicity in mind, Verkada offers six product lines that provide unparalleled visibility through a single cloud-based software platform.

LEARN MORE
Play video

Watch Instant Demo

Simplify video security at scale. Verkada replaces obsolete equipment with technology that’s smart, secure and easy to manage. All cameras have built–in onboard storage, including extended storage options with up to 365 days of continuous recording in standard quality.
