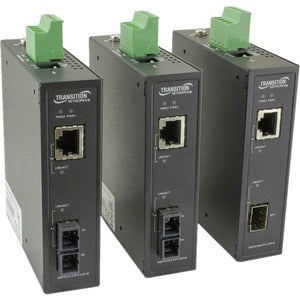

Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
SKU: SISTG1013-211-LRT-B
The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Reverse Polarity Power Input Protection
- Dual, Redundant, 12-48 VDC Power Inputs
- Extended operating temperature (-40°C to 75°C)
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
Only 2 in stock
Regular price
$367.40
Sale price
$477
On Sale
Shipping calculated at checkout
The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Reverse Polarity Power Input Protection
- Dual, Redundant, 12-48 VDC Power Inputs
- Extended operating temperature (-40°C to 75°C)
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
Gigabit Ethernet
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Core/Cladding Specification:
62.5/125 µm,50/125 µm
Fiber Optic Cable Wavelength:
850 nm
Form Factor:
Rail-mountable
Limited Warranty:
5 Year
Manufacturer:
Transition Networks, Inc
Manufacturer Website Address:
http://www.transition.com
Maximum Distance Supported:
0.55 km
Media Type Supported:
Twisted Pair,Optical Fiber
Network (RJ-45):
Yes
Network Technology:
1000Base-SX,10/100/1000Base-T
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
Package Contents:
- Unmanaged Hardened Gigabit Ethernet Media Converter
- DIN Rail Mounting Brackets
Power Source:
Power Supply
Product Model:
SISTG1013-211-LRT-B
Product Series:
SISTG10xx-211-LRT-B
Product Type:
Transceiver/Media Converter
Total Number of Ports:
2
