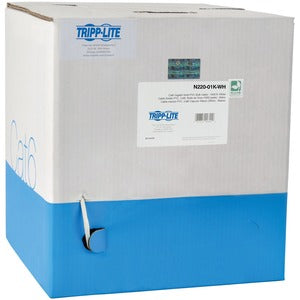

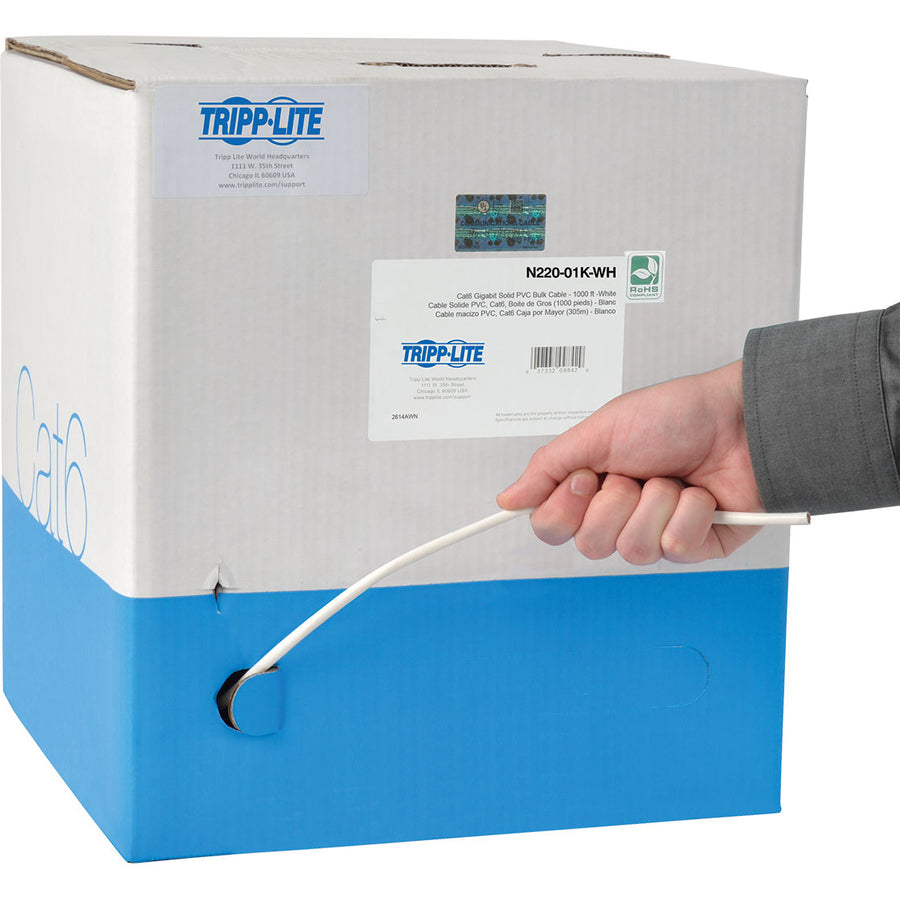

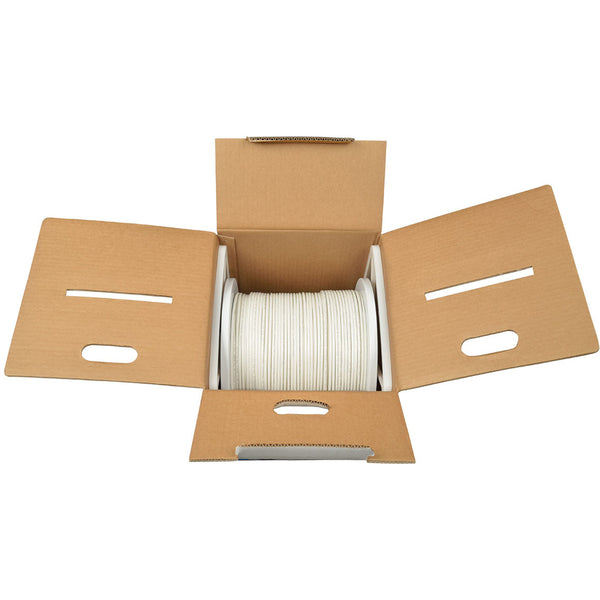

Eaton Tripp Lite Series Cat6 Gigabit Bulk UTP Stranded 24 AWG CMR PVC Cable, White, 1000 ft. (304.8 m) TAA
The N220-01K-WH Cat6 Gigabit Bulk Stranded White PVC Cable, is premium high-speed cabling designed for making custom length patch cable assemblies. Cable features fast transmission and excellent signal quality, ensuring peak performance through your LAN (local area network).
Manufactured from 24 AWG copper wire, the four-pair stranded UTP N220-01K-WH delivers speeds up to 250 MHz/1 Gbps. Protected by a CMR-rated PVC jacket, this cable drastically reduces impedance and structural return loss as compared to standard 100 MHz wire. No center "Spline" as found in solid conductor Cat6 allows for easy RJ45 plug termination, and, at a mere 0.22" in diameter, an extremely flexible patch cable. When used with Tripp Lite CAT6 rated RJ45 plugs, N230-100, Near-end crosstalk (NeXT) levels are kept to a minimum, making the N220-01K-WH ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications.
The N220-01K-WH meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11).
Features
Perfect Solution for High-Speed Cat6 Premise Applications
- Designed for do-it-yourself patch cord assembly
- No center "spline" and overall diameter of 0.22" makes for easy RJ45 plug termination
- Delivers speeds up to 250 MHz/1 Gbps
- Reduces impedance and structural return loss compared to standard 100 MHz wire
- Ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications
Premium Construction for Superior Performance
- Made from 24 AWG copper wire ( 7 x 32AWG per conductor )

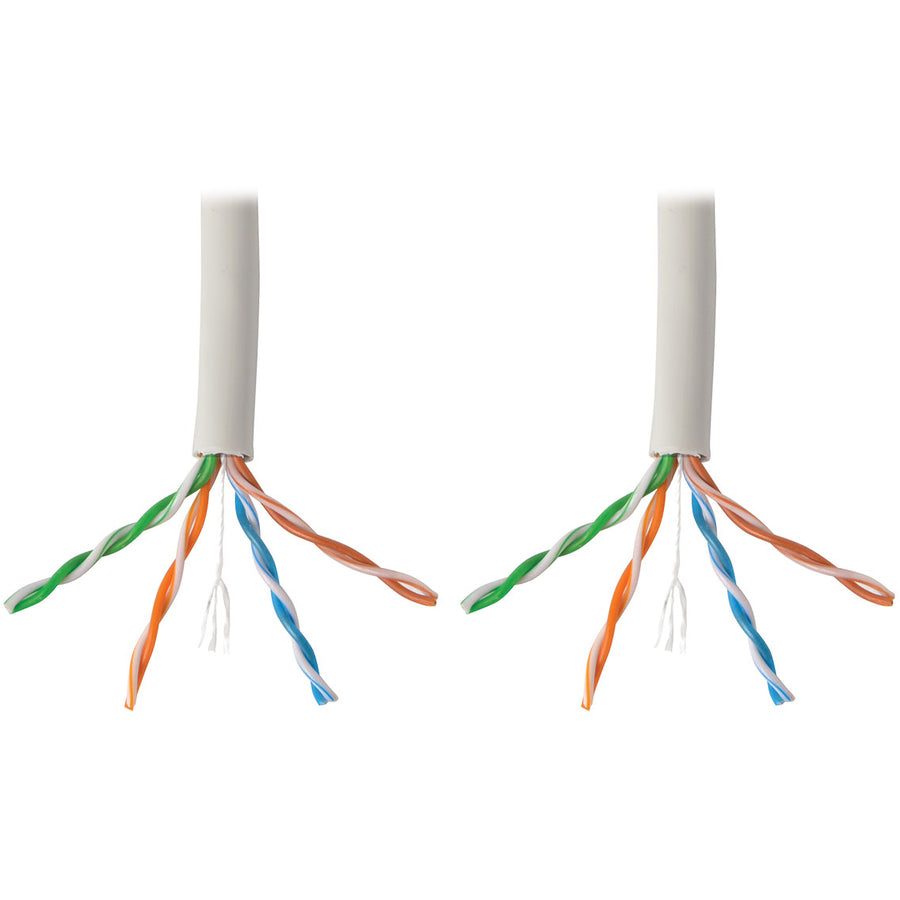

- 4-pair stranded UTP
- Minimum near-end crosstalk
- CMR-rated PVC jacket
- Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11)
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Meets IEEE 802.3ab and ANSI/EIA/TIA 568 standards
- CMR-rated PVC jacket
- High-quality 24 AWG 4-pair stranded copper wire
- Channel-tested to 250 MHz/1 Gbps communications
- Less impedance and structural return loss than 100 MHz wire
Call for Availability
Shipping calculated at checkout
The N220-01K-WH Cat6 Gigabit Bulk Stranded White PVC Cable, is premium high-speed cabling designed for making custom length patch cable assemblies. Cable features fast transmission and excellent signal quality, ensuring peak performance through your LAN (local area network).
Manufactured from 24 AWG copper wire, the four-pair stranded UTP N220-01K-WH delivers speeds up to 250 MHz/1 Gbps. Protected by a CMR-rated PVC jacket, this cable drastically reduces impedance and structural return loss as compared to standard 100 MHz wire. No center "Spline" as found in solid conductor Cat6 allows for easy RJ45 plug termination, and, at a mere 0.22" in diameter, an extremely flexible patch cable. When used with Tripp Lite CAT6 rated RJ45 plugs, N230-100, Near-end crosstalk (NeXT) levels are kept to a minimum, making the N220-01K-WH ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications.
The N220-01K-WH meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11).
Features
Perfect Solution for High-Speed Cat6 Premise Applications
- Designed for do-it-yourself patch cord assembly
- No center "spline" and overall diameter of 0.22" makes for easy RJ45 plug termination
- Delivers speeds up to 250 MHz/1 Gbps
- Reduces impedance and structural return loss compared to standard 100 MHz wire
- Ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications
Premium Construction for Superior Performance
- Made from 24 AWG copper wire ( 7 x 32AWG per conductor )
- 4-pair stranded UTP
- Minimum near-end crosstalk
- CMR-rated PVC jacket
- Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11)
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Meets IEEE 802.3ab and ANSI/EIA/TIA 568 standards
- CMR-rated PVC jacket
- High-quality 24 AWG 4-pair stranded copper wire
- Channel-tested to 250 MHz/1 Gbps communications
- Less impedance and structural return loss than 100 MHz wire
