Cisco Barebone System - Refurbished - 4U Rack-mountable - 2 x Processor Support
SKU: UCSC-C480-M5ML8-RF
The Cisco UCS C480 ML, a purpose-built Server for Deep Learning, is a four-rack-unit (4RU) server supporting Intel® Xeon® processor scalable family CPUs with 8 NVIDIA Tesla V100-32GB Tensor Core GPUs with NVLink Interconnect. It supports up to 3 terabytes (TB) of double-data-rate 4 (DDR4) memory1 in 24 slots, up to 24 small form factor (SFF) hot-swappable2 SAS/SATA SSD/HDD, up to 6 PCIe NVMe disk drives and upto two internal M.2 drives.

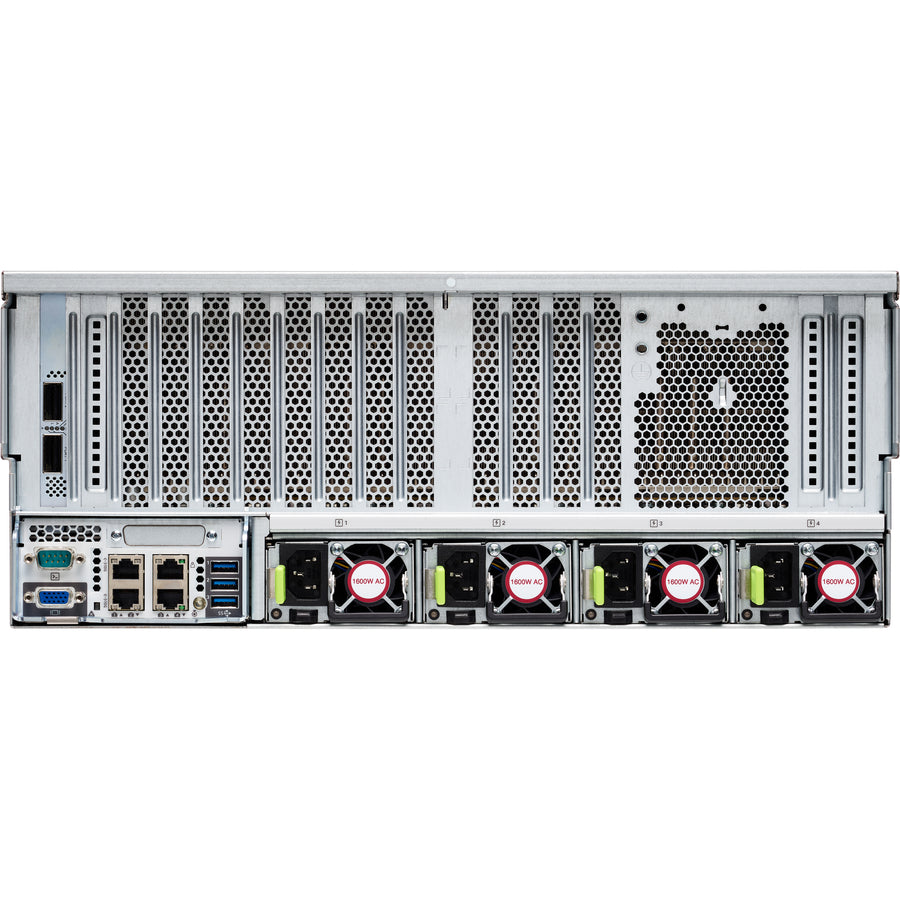

4 PCI Express (PCIe) expansion slots support Cisco UCS C-Series and partner network adapters, with additional I/O provided by two 10Gbase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card
4 PCI Express (PCIe) expansion slots support Cisco UCS C-Series and partner network adapters, with additional I/O provided by two 10Gbase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card
- Perform computational tasks effectively accrediting the Xeon Platinum processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Can connect up to 4 USB peripherals
- 12Gb/s SAS interface for high speed and reliability
Call for Availability
Regular price
$118,288.88
Sale price
$241,553.76
On Sale
Shipping calculated at checkout
The Cisco UCS C480 ML, a purpose-built Server for Deep Learning, is a four-rack-unit (4RU) server supporting Intel® Xeon® processor scalable family CPUs with 8 NVIDIA Tesla V100-32GB Tensor Core GPUs with NVLink Interconnect. It supports up to 3 terabytes (TB) of double-data-rate 4 (DDR4) memory1 in 24 slots, up to 24 small form factor (SFF) hot-swappable2 SAS/SATA SSD/HDD, up to 6 PCIe NVMe disk drives and upto two internal M.2 drives.
4 PCI Express (PCIe) expansion slots support Cisco UCS C-Series and partner network adapters, with additional I/O provided by two 10Gbase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card
4 PCI Express (PCIe) expansion slots support Cisco UCS C-Series and partner network adapters, with additional I/O provided by two 10Gbase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card
- Perform computational tasks effectively accrediting the Xeon Platinum processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Can connect up to 4 USB peripherals
- 12Gb/s SAS interface for high speed and reliability
64-bit Processing:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C620
Controller Type:
12Gb/s SAS
Country of Origin:
United States
Ethernet Technology:
10 Gigabit Ethernet
Form Factor:
Rack-mountable
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
Tesla V100
Graphics Memory Capacity:
32 GB
Input Voltage:
120 V AC,230 V AC
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com
Maximum Memory Supported:
3 TB
Memory Standard:
DDR4-2666/PC4-21300
Memory Technology:
DDR4 SDRAM
Number of 2.5" Bays:
24
Number of PCI Express x16 Slots:
4
Number of Processors Supported:
2
Number of Total Expansion Bays:
24
Number of USB 3.0 Ports:
3
Processor Supported:
Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze
Product Condition:
Refurbished
Product Series:
C480 ML M5
Product Type:
Barebone System
Rack Height:
4U
RAID Supported:
Yes
Total Number of Expansion Slots:
4
Total Number of Memory Slots:
24
Total Number of USB Ports:
4
