Chief Video-Sound Bar Mount - For Tempo Flat Panel Wall Mount - Black
SKU: AS3A101
Complete your AV system installations with this Installer Inspired video-sound bar mount for use withTempo™ Flat Panel Wall Mount System.
Key Features:

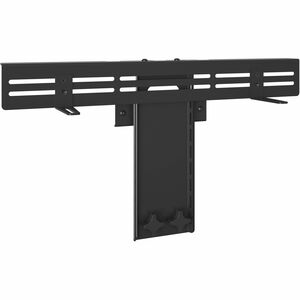

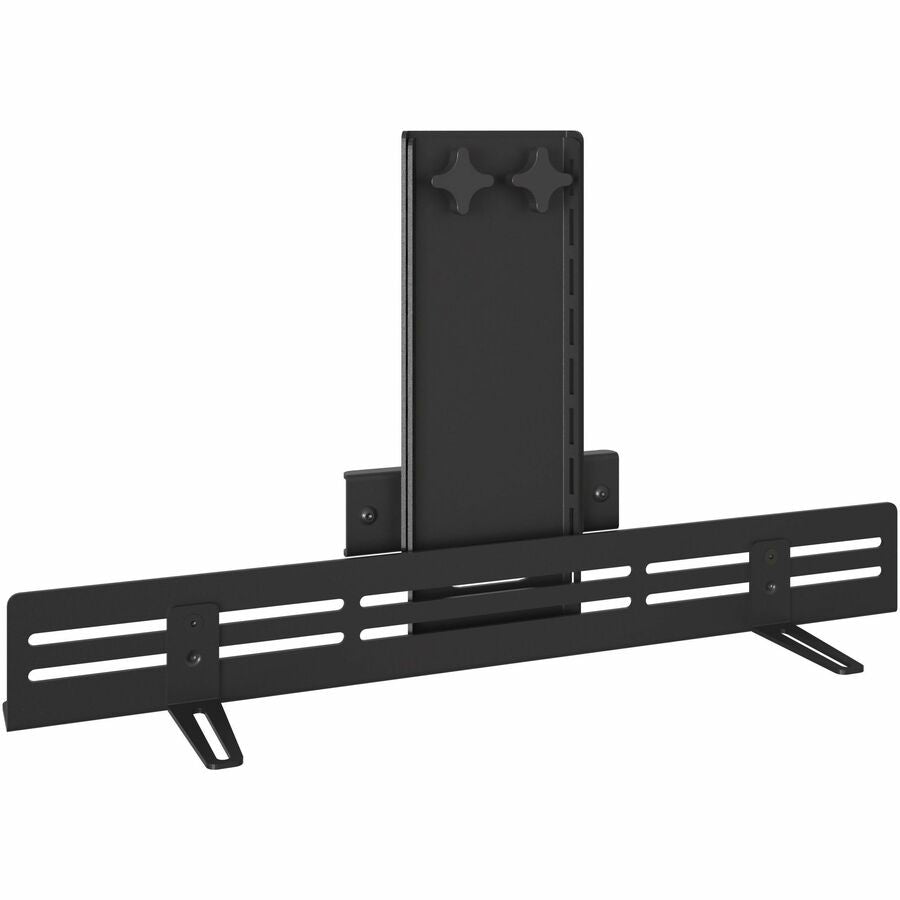

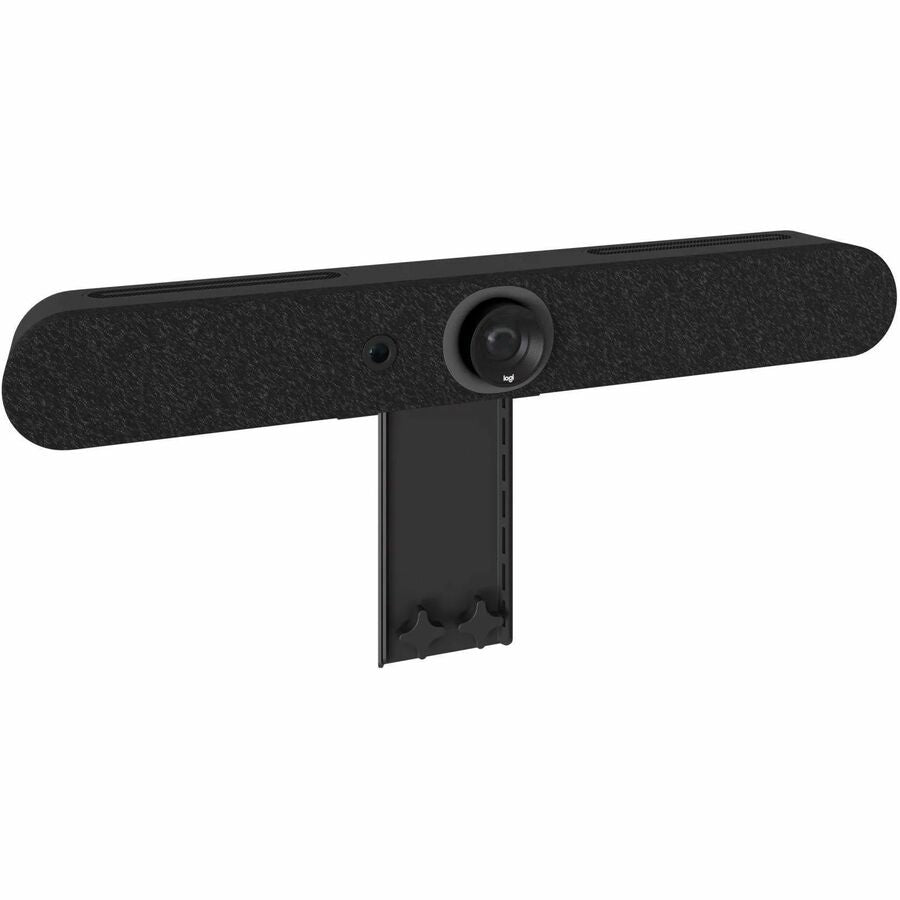

- Video-sound bar interface bracket is 22.25" (565 mm) wide by 2.88" (73 mm) tall to avoid peek-a-boo with most video-sound bars. The ample 21.41" (544 mm) wide slot allows you to secure most video-sound bars having rear mounting holes.

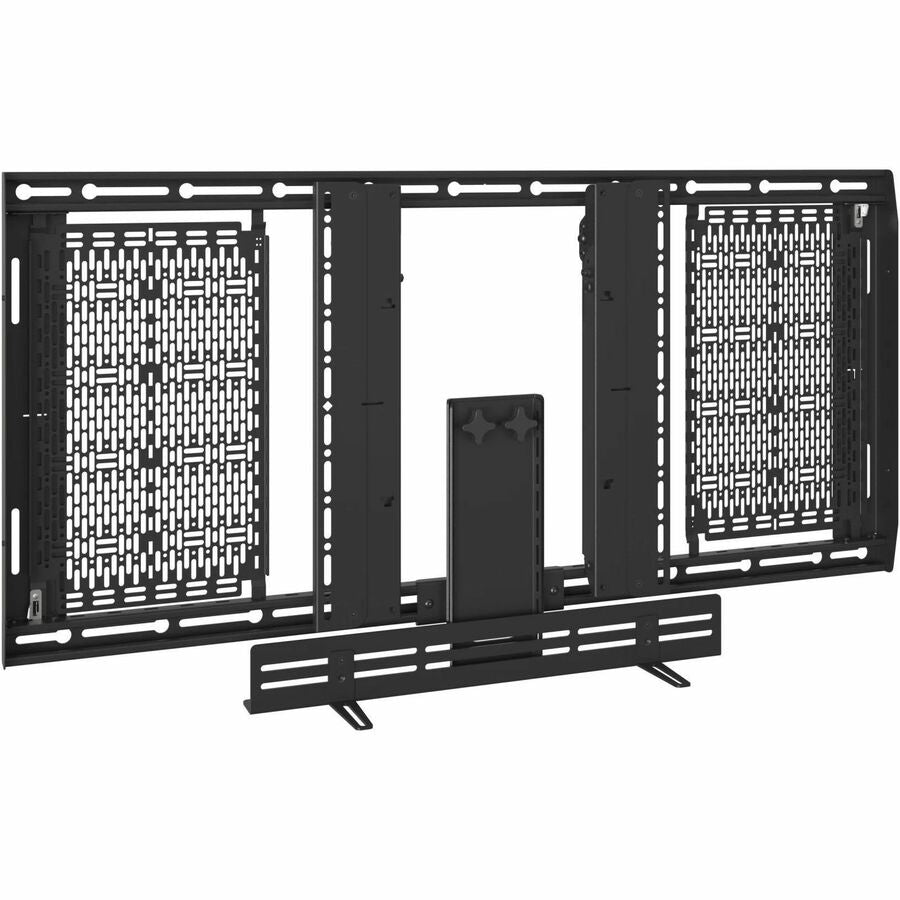

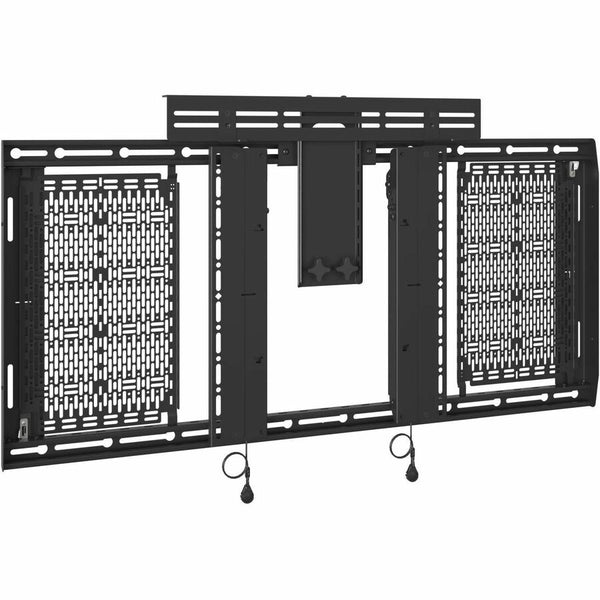

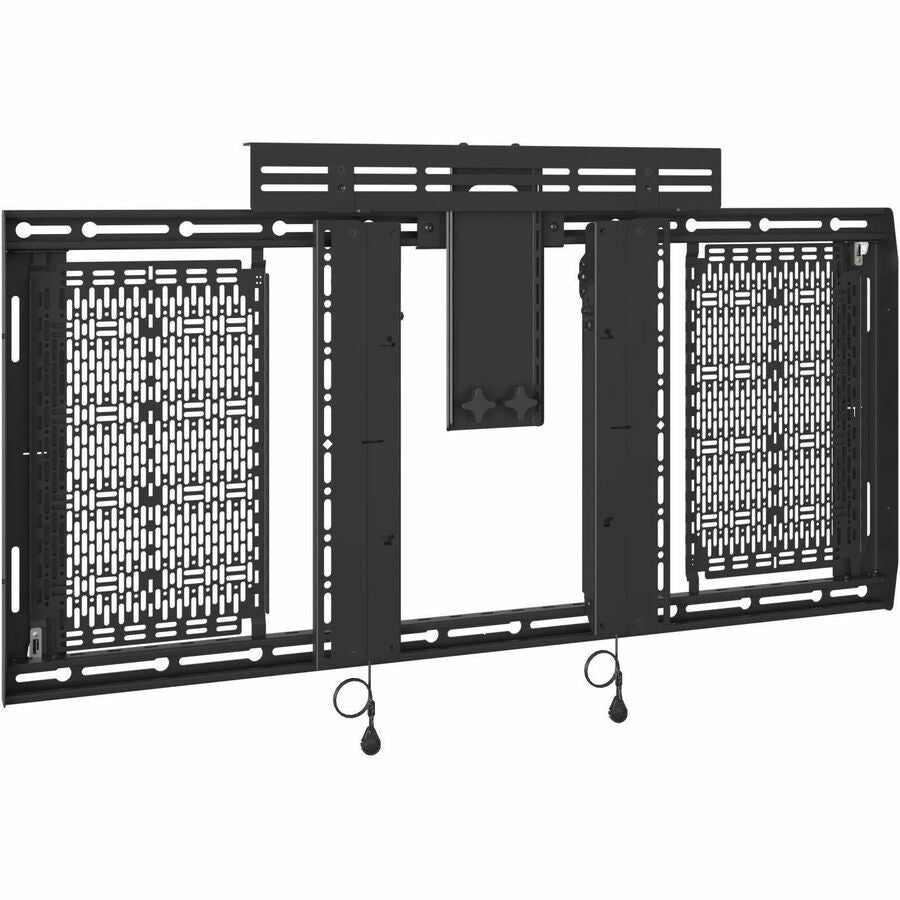

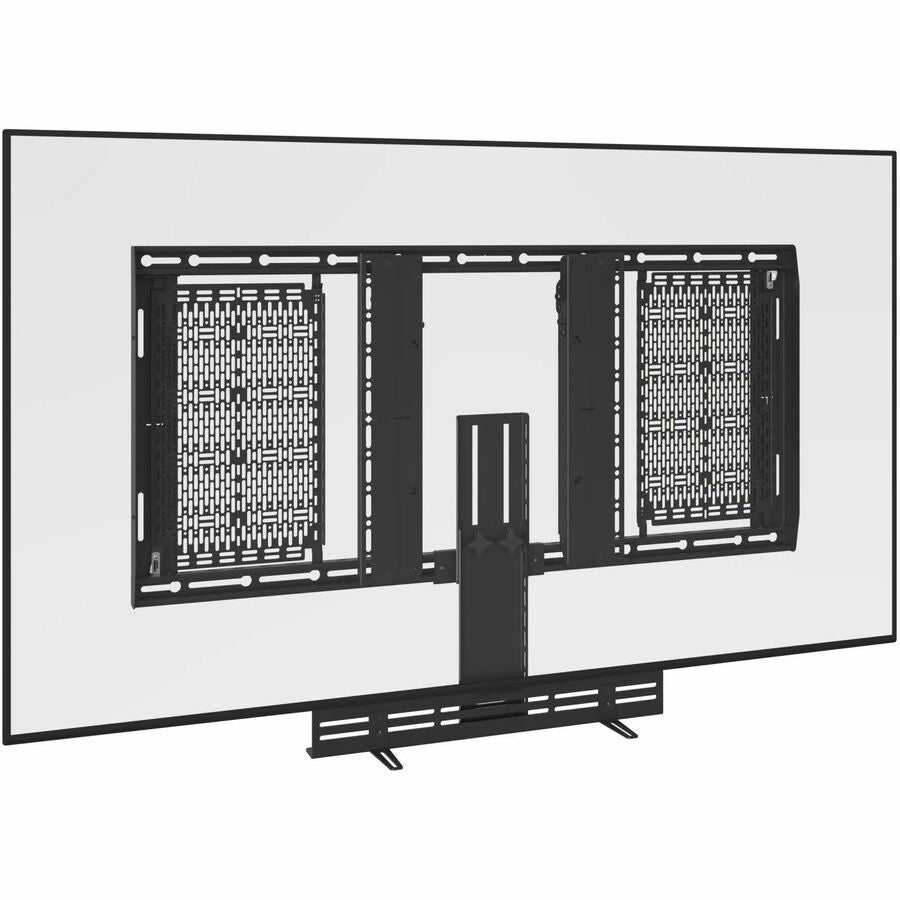

- Quick and easy installation. The video-sound bar mount glides and locks into place on the top or bottom rail of the Tempo FP Wall Mount System using strut channel nuts with captive screws.
- Lateral shift allows you to position the video-sound bar mount wherever you need it along the wall plate mounting rail.

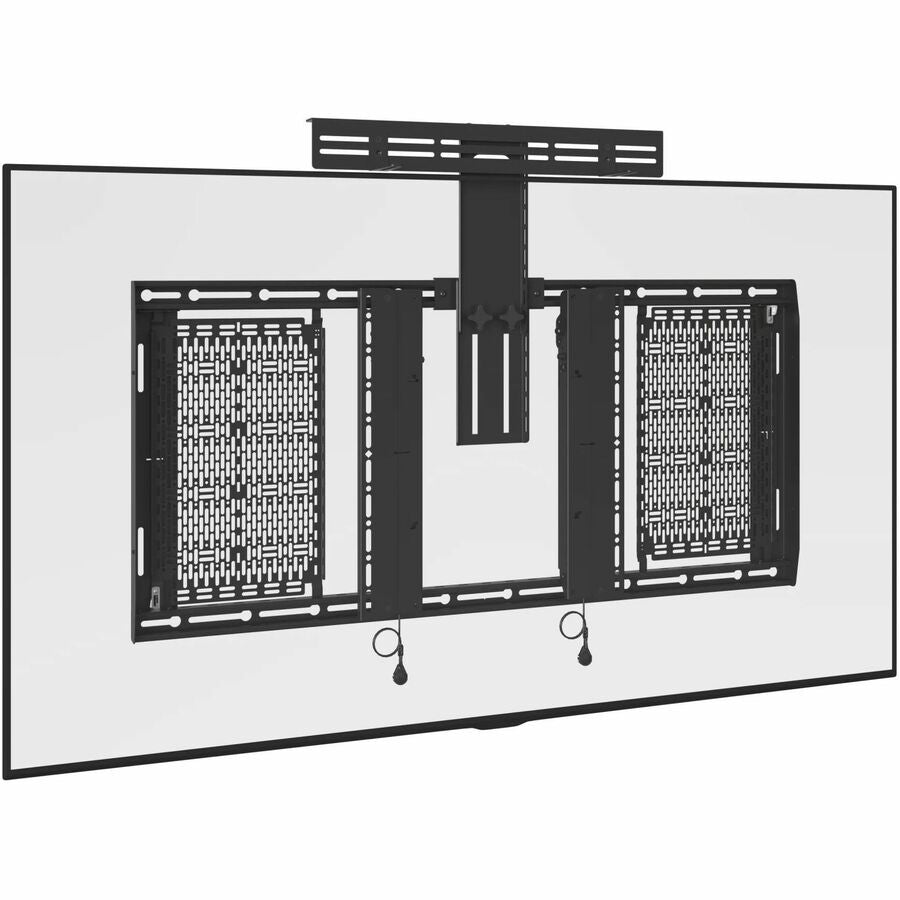

- Toolless height-adjust knobs allow 6.27" (159 mm) of travel to easily position the camera shelf at the right height above or below the display.
- Video-sound bar mount can be installed between 9.75" (248 mm) to 28.15" (715 mm) of Tempo FP Wall Mount System center line.
- Window opening and slots along both sides of the vertical bracket facilitate cable management.
- Weight capacity of 20 lbs (9 kg) with video-sound bars mounted to interface bracket. When using "L" brackets to mount a video-sound bar the weight capacity is 15 lbs (6.8 kg).

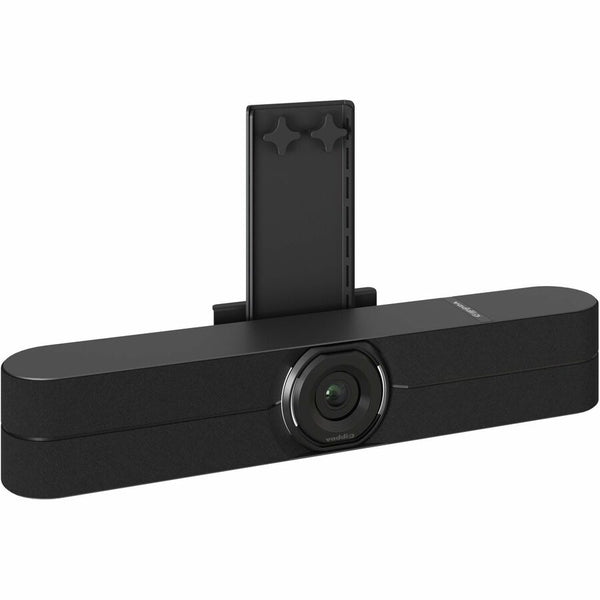

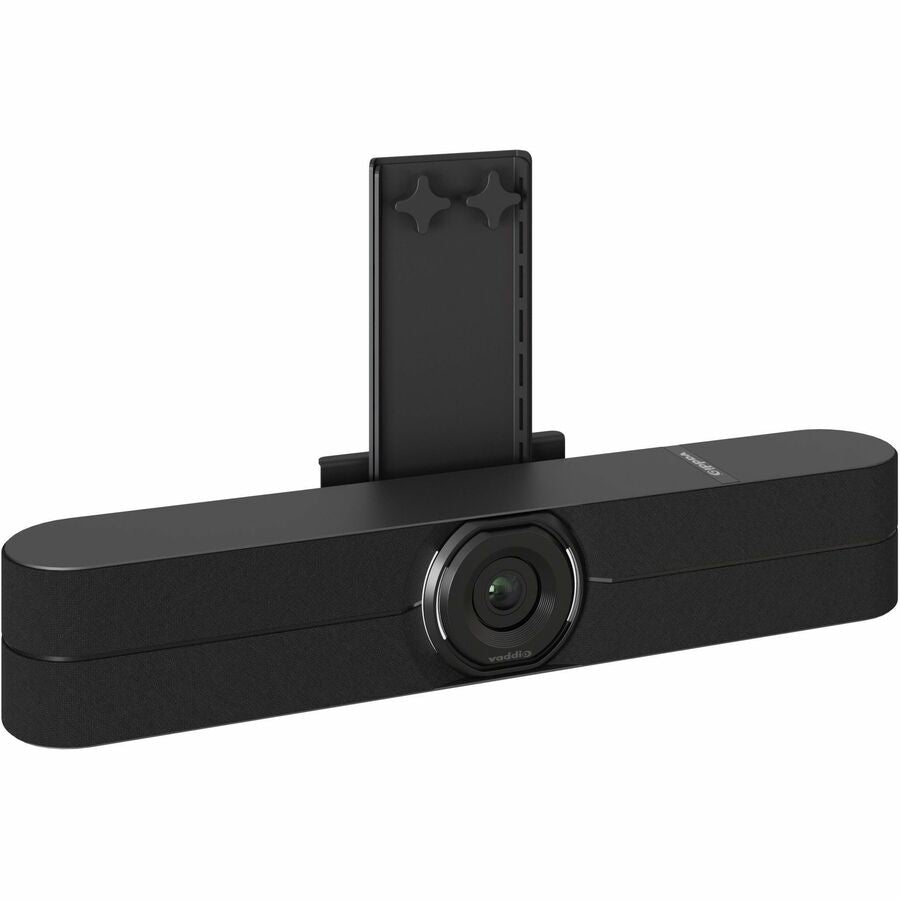

- Fits most video-sound bars having mounting holes in the back or bottom.
- Mounting Bar offers maximum mounting efficiency with added usability
- Can withstand a maximum weight of 20 lb
- Lockable feature for maximum productivity with added dependability
Call for Availability
Regular price
$168.88
Sale price
$262
On Sale
Shipping calculated at checkout
Complete your AV system installations with this Installer Inspired video-sound bar mount for use withTempo™ Flat Panel Wall Mount System.
Key Features:
- Video-sound bar interface bracket is 22.25" (565 mm) wide by 2.88" (73 mm) tall to avoid peek-a-boo with most video-sound bars. The ample 21.41" (544 mm) wide slot allows you to secure most video-sound bars having rear mounting holes.
- Quick and easy installation. The video-sound bar mount glides and locks into place on the top or bottom rail of the Tempo FP Wall Mount System using strut channel nuts with captive screws.
- Lateral shift allows you to position the video-sound bar mount wherever you need it along the wall plate mounting rail.
- Toolless height-adjust knobs allow 6.27" (159 mm) of travel to easily position the camera shelf at the right height above or below the display.
- Video-sound bar mount can be installed between 9.75" (248 mm) to 28.15" (715 mm) of Tempo FP Wall Mount System center line.
- Window opening and slots along both sides of the vertical bracket facilitate cable management.
- Weight capacity of 20 lbs (9 kg) with video-sound bars mounted to interface bracket. When using "L" brackets to mount a video-sound bar the weight capacity is 15 lbs (6.8 kg).
- Fits most video-sound bars having mounting holes in the back or bottom.
- Mounting Bar offers maximum mounting efficiency with added usability
- Can withstand a maximum weight of 20 lb
- Lockable feature for maximum productivity with added dependability
Color Family:
Black
Device Supported:
Wall Mounting System,Soundbar,Flat Panel Display
Features:
Lockable,Lateral Adjustment,Easy to Install
Form Factor:
Wall Mountable
Height Adjustable:
Yes
Height Adjustment Type:
Manual
Limited Warranty:
10 Year
Manufacturer:
Legrand Group
Manufacturer Website Address:
http://www.legrand.us
Maximum Load Capacity:
20 lb
Minimum Load Capacity:
15 lb
Product Color:
Black
Product Line:
Tempo
Product Type:
Mounting Bar
