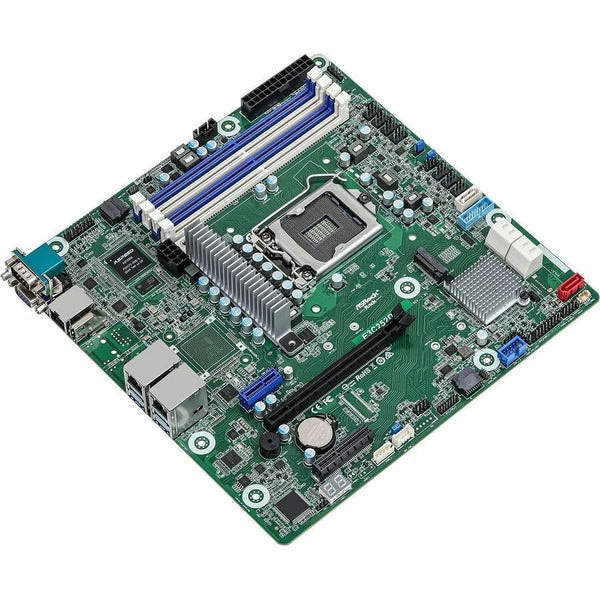

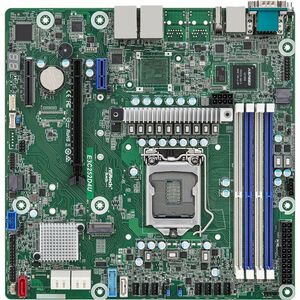

ASRock Rack E3C252D4U Server Motherboard - Intel C252 Chipset - Socket LGA-1200 - Micro ATX
SKU: E3C252D4U
ASRock Rack E3C252D4U Server Motherboard - Intel C252 Chipset - Socket LGA-1200 - Micro ATX - Xeon E, Pentium Processor Supported - 32 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces
- Micro-ATX (9.6" x 9.6")
- Supports Intel®Xeon®E-2300 and 10th Gen Intel®Pentium®series processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
- Supports 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s)
- 6 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel®i210

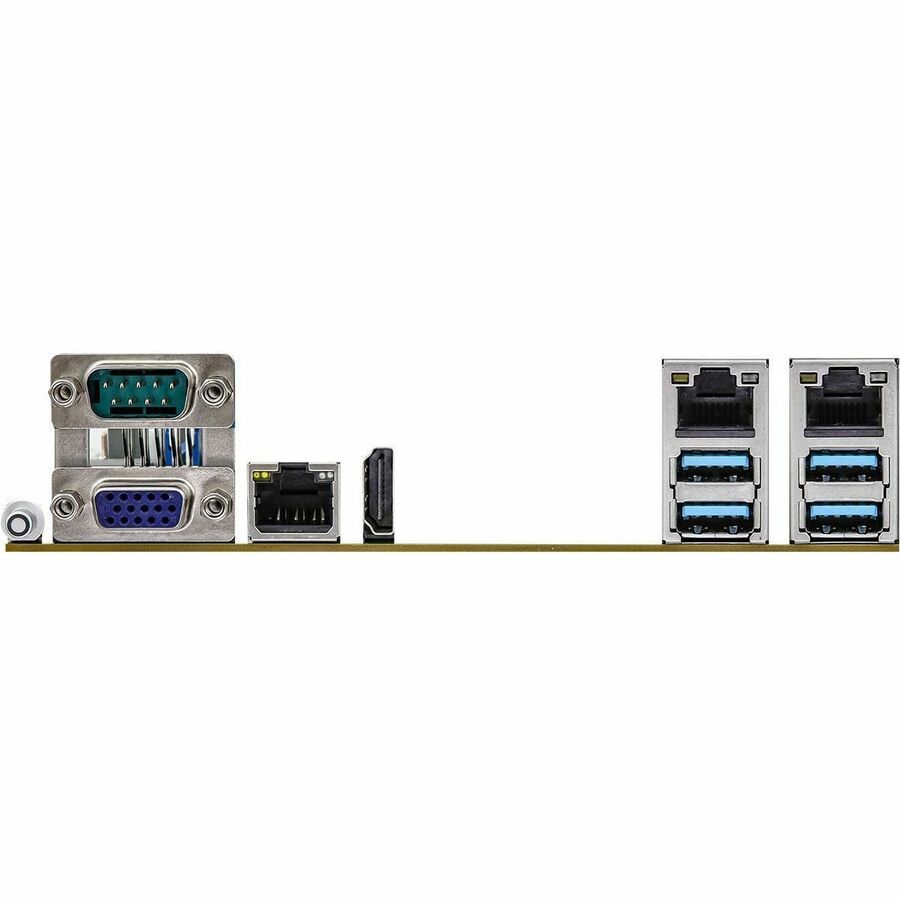

- VGA, HDMI
- Remote Management (IPMI)
Call for Availability
Regular price
$333.46
Shipping calculated at checkout
ASRock Rack E3C252D4U Server Motherboard - Intel C252 Chipset - Socket LGA-1200 - Micro ATX - Xeon E, Pentium Processor Supported - 32 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces
- Micro-ATX (9.6" x 9.6")
- Supports Intel®Xeon®E-2300 and 10th Gen Intel®Pentium®series processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
- Supports 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s)
- 6 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel®i210
- VGA, HDMI
- Remote Management (IPMI)
Chipset Manufacturer:
Intel
Chipset Model:
C252
Controller Type:
Serial ATA/600
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Form Factor:
Micro ATX
Gigabit Ethernet:
Yes
Graphics Controller Model:
AST2500
HDMI:
Yes
Manufacturer:
ASRock Rack Inc
Manufacturer Website Address:
https://www.asrockrack.com/index.asp
Maximum Memory Supported:
32 GB
Memory Form Factor:
DIMM,UDIMM
Memory Speed Supported:
3200 MHz,2666 MHz
Memory Technology:
DDR4 SDRAM
Number of M.2 Interfaces:
1
Number of Memory Slots:
4
Number of Network (RJ-45) Ports:
3
Number of Onboard USB 2.0 Ports:
2
Number of PCI Express x16 Slots:
1
Number of PCI Express x1 Slots:
1
Number of PCI Express x4 Slots:
1
Number of SATA Interfaces:
6
Number of USB 3.2 Gen 1 Type-A Ports:
4
Onboard Video:
CPU Dependent Video
PCI Express Standard:
PCI Express 3.0,PCI Express 4.0
Processor Generation Supported:
10th Gen
Processor Socket:
Socket LGA-1200
Processor Supported:
Xeon E,Pentium
Product Model:
E3C252D4U
Product Type:
Server Motherboard
RAID Levels:
0,1,5,10
RAID Supported:
Yes
Total Number of Expansion Slots:
3
Total Number of Onboard USB Ports:
4
Total Number of PCI Express Slots:
3
Total Number of USB Ports:
4
Total Processor Supported:
1
VGA:
Yes
