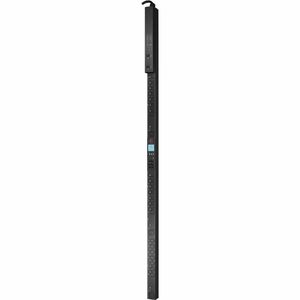

APC NetShelter Rack PDU, Metered-by-Outlet W/ Switching, 0U, 5.0kW 200V and 208V 30A, (21) C13 and (3) C19 outlets [TAA]
SKU: AP8641US
The APC Metered-by-Outlet with Switching Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The AP8641US offers real-time remote monitoring of each individual outlet combined with remote on/off outlet switching control to help IT professionals with the necessary tools for complete control of their power distribution. The 0U PDU includes a NEMA L6-30P input plug with 3m (9.84 ft) cord, (21) IEC 60320 C13 and (3) IEC 60320 C19 output receptacles. The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity. The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads. The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address. An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH). The rack PDU comes with a standard two-year warranty. The metered PDU is compliant with the Trade Agreements Act (TAA) requirements.
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Call for Availability
Regular price
$2,461.78
Sale price
$3,565.00
On Sale
Shipping calculated at checkout
The APC Metered-by-Outlet with Switching Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The AP8641US offers real-time remote monitoring of each individual outlet combined with remote on/off outlet switching control to help IT professionals with the necessary tools for complete control of their power distribution. The 0U PDU includes a NEMA L6-30P input plug with 3m (9.84 ft) cord, (21) IEC 60320 C13 and (3) IEC 60320 C19 output receptacles. The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity. The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads. The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address. An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH). The rack PDU comes with a standard two-year warranty. The metered PDU is compliant with the Trade Agreements Act (TAA) requirements.
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Additional Warranty Information:
2 years repair or replace
Application/Usage:
Data Center
Cord Length:
9.84 ft
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Features:
LCD Display
Input Current:
30 A
Input Voltage:
230 V AC,208 V AC,200 V AC
Limited Warranty:
2 Year
Load Capacity (Watt):
5000 W
Management:
- Web
- SNMP
Manufacturer:
Schneider Electric SA
Manufacturer Website Address:
http://www.schneider-electric.com
Maximum Operating Temperature:
60°F (15.6°C)
Mounting Orientation:
Vertical/Toolless
Mount Type:
Rack-mountable
Output Voltage:
200 V AC,208 V AC
PDU Type:
Switched with Metered-by-Outlet
Placement:
Side
Plug/Connector Type:
NEMA L6-30P
Product Line:
NetShelter
Product Type:
PDU
Rack Height:
0U
Receptacle Detail:
21 x IEC 60320 C13,3 x IEC 60320 C19
Receptacle Type:
IEC 60320 C13,IEC 60320 C19
Remote Outlet Switching:
Yes
UL Listed:
Yes
