AddOn Dell® DAC-Q56DD-4Q28-2-5M Compatible TAA Compliant 200GBase-CU QSFP-DD 200G to 4xQSFP28 50G NRZ Direct Attach Cable (Passive Twinax, 2.5m)
SKU: DAC-Q56DD4Q282-5M-AO

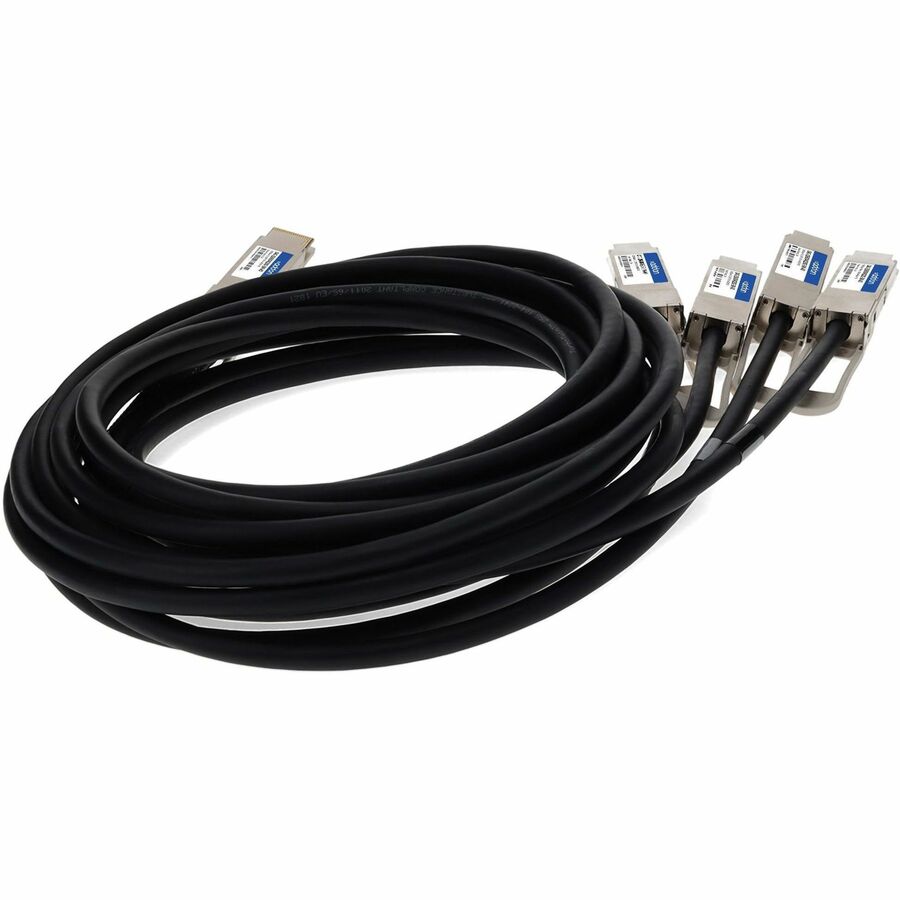

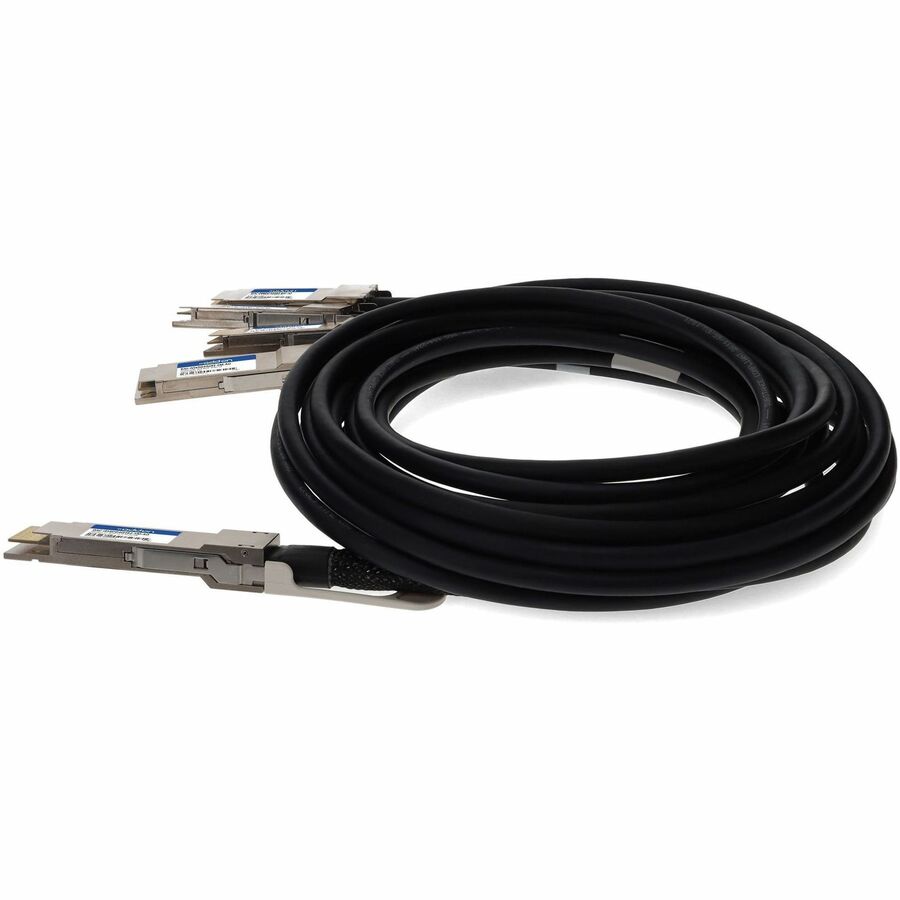

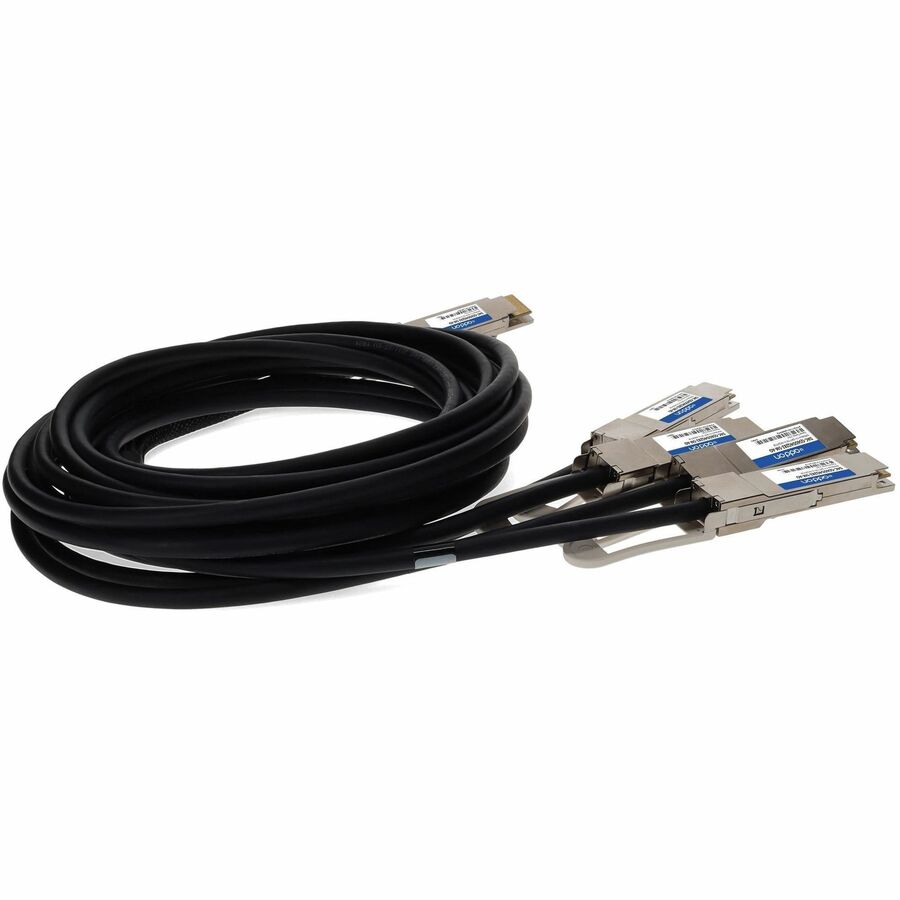

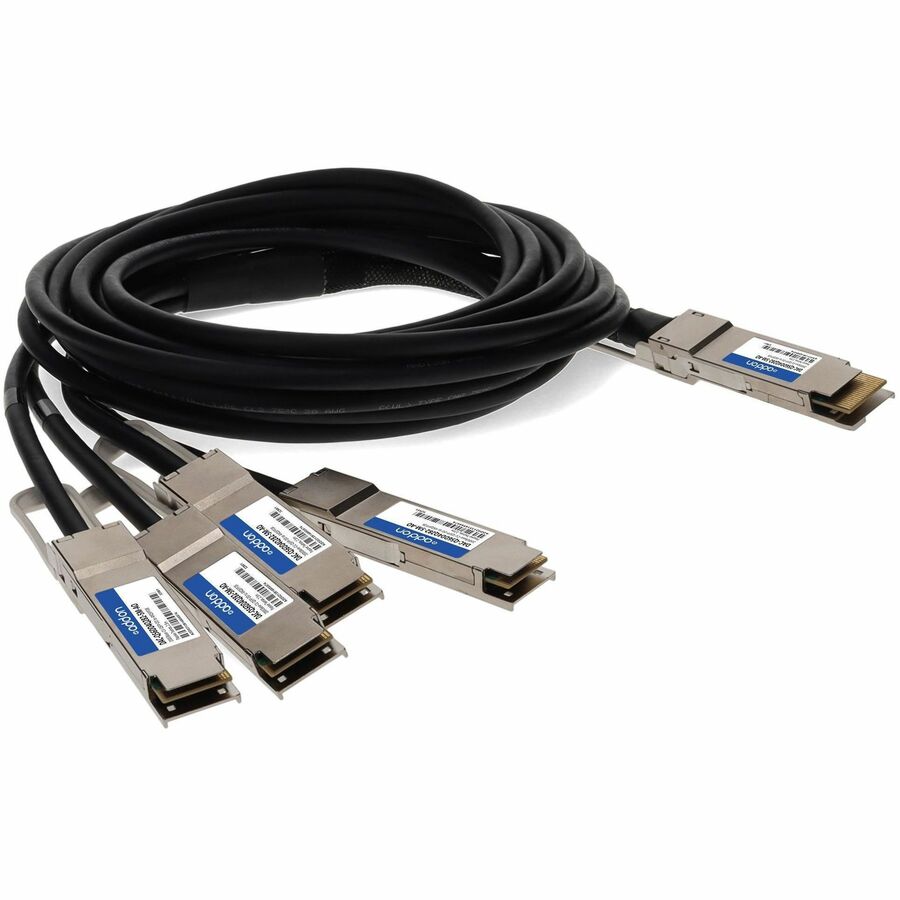

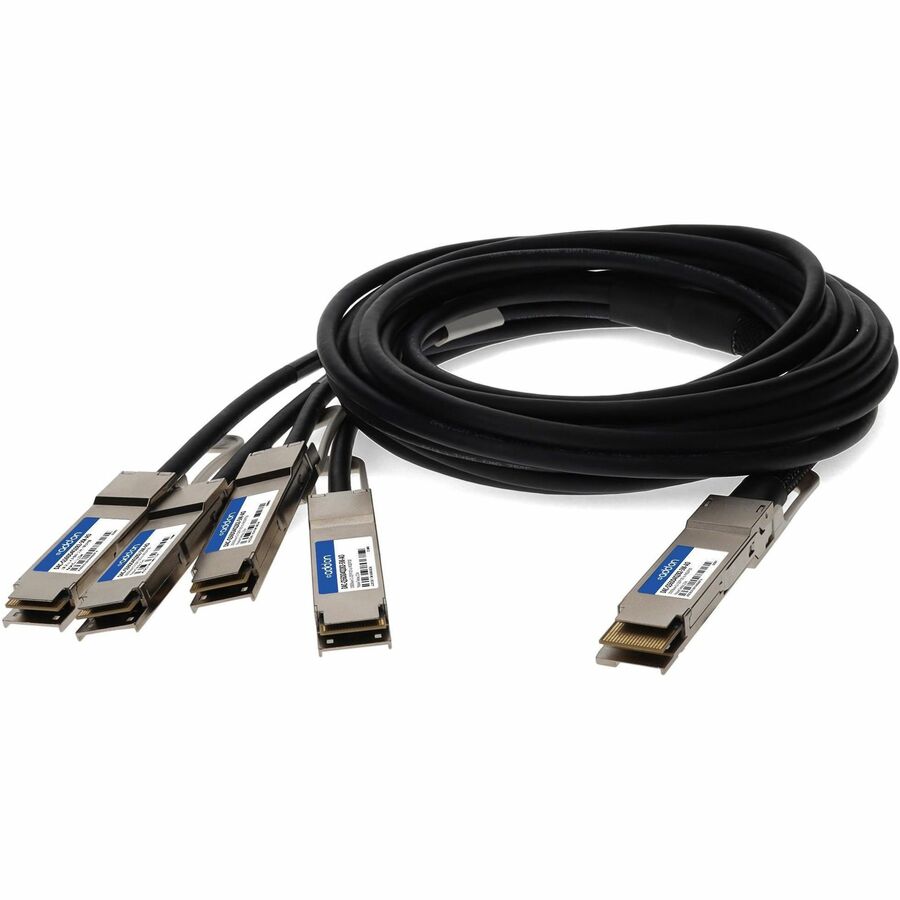

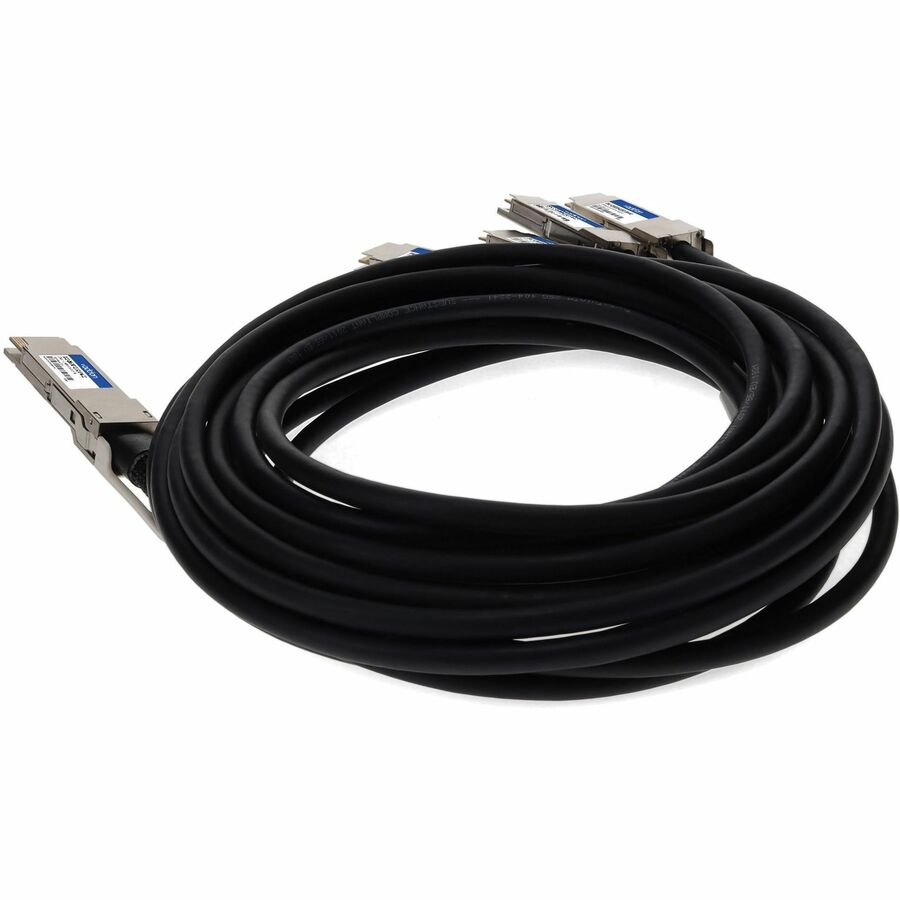

This is a Dell DAC-Q56DD-4Q28-2-5M compatible TAA compliant 200GBase-CU QSFP-DD 200G to 4xQSFP28 50G NRZ direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Compliant with QSFP-DD MSA Specification Rev 3.4
- SFF-8679 electrical interface compliant
- SFF-8636 management interface support
- Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
- Supports aggregate data rates of 100 and 200Gbps
- I2C for EEPROM communication
- Pull-to-release slide latch design
- 28AWG through 32AWG cable
- Excellent EMI/EMC performance 360-degree cable shield termination
- Advantage dual side pre-solder automated assembly technologies
Call for Availability
Regular price
$531.31
Sale price
$880
On Sale
Shipping calculated at checkout
This is a Dell DAC-Q56DD-4Q28-2-5M compatible TAA compliant 200GBase-CU QSFP-DD 200G to 4xQSFP28 50G NRZ direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Compliant with QSFP-DD MSA Specification Rev 3.4
- SFF-8679 electrical interface compliant
- SFF-8636 management interface support
- Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
- Supports aggregate data rates of 100 and 200Gbps
- I2C for EEPROM communication
- Pull-to-release slide latch design
- 28AWG through 32AWG cable
- Excellent EMI/EMC performance 360-degree cable shield termination
- Advantage dual side pre-solder automated assembly technologies
American Wire Gauge:
28 AWG
Cable Length:
8.20 ft
Cable Type:
Twinaxial
Connector Gender on First End:
Male
Connector Gender on Second End:
Male
Connector on First End Details:
1 x QSFP-DD Network - Male
Connector on Second End Details:
4 x QSFP28 Network - Male
Connector Type on First End:
QSFP-DD Network - Male
Connector Type on Second End:
QSFP28 Network - Male
Country of Origin:
United States/United Kingdom
Data Transfer Rate:
200 Gbit/s
Device Supported:
Network Device
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Passive
Jacket Material:
Polyvinyl Chloride (PVC)
Jacket Type:
VW-1
Limited Warranty:
Lifetime
Manufacturer:
AddOn
Manufacturer Website Address:
http://www.addoncomputer.com
Packaged Quantity:
1
Product Material:
Copper
Product Type:
Network Cable
Shielding:
Yes
TAA Compliant:
Yes
