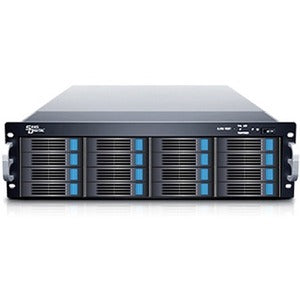

Sans Digital EliteSTOR ES316X12 - 3U 16 Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount
SKU: KT-ES316X12
The EliteSTOR ES316X12 is a 3U SAS 12G JBOD rackmount for high capacity storage solution. Utilizing the latest 12G SAS expander technology, the ES316X12 provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES316X12 supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES316X12 supports up to 16 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca 12G RAID controller ARC-1883X or LSI MegaRAID 12G RAID controller, the ES316X12 is capable of delivering over in 3,000MB/s in read and write performance, doubling the existing 6G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES316X12 is an ideal storage expansion solution for servers or high performance video editing workstations.
- DAS Storage System offers maximum storage productivity with added dependability
- Robust scalability up to 16 drives to let you expand limitlessly
- Through RAID levels (jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Holds 16 HDDs for up to 64 tb of storage
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das storage system allows maximum space utilization with easy and convenient access and retrieval of the data
Call for Availability
Regular price
$3,033.15
Shipping calculated at checkout
The EliteSTOR ES316X12 is a 3U SAS 12G JBOD rackmount for high capacity storage solution. Utilizing the latest 12G SAS expander technology, the ES316X12 provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES316X12 supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES316X12 supports up to 16 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca 12G RAID controller ARC-1883X or LSI MegaRAID 12G RAID controller, the ES316X12 is capable of delivering over in 3,000MB/s in read and write performance, doubling the existing 6G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES316X12 is an ideal storage expansion solution for servers or high performance video editing workstations.
- DAS Storage System offers maximum storage productivity with added dependability
- Robust scalability up to 16 drives to let you expand limitlessly
- Through RAID levels (jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Holds 16 HDDs for up to 64 tb of storage
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das storage system allows maximum space utilization with easy and convenient access and retrieval of the data
Controller Type:
12Gb/s SAS,Serial ATA/600
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Form Factor:
Rack-mountable
Host Interface:
Mini-SAS
Limited Warranty:
3 Year
Manufacturer:
Sans Digital
Manufacturer Website Address:
http://www.sansdigital.com
Maximum Power Supply Wattage:
650 W
Number of 3.5" Bays:
16
Number of Hard Drives Supported:
16
Number of Power Supplies Installed:
3
Number of Solid State Drive Supported:
16
Number of Total Expansion Bays:
16
Package Contents:
- EliteSTOR ES316X12 DAS Array
- HD Mini-SAS Cable
- Cooling Fan
- Tray Modules
- Build-in Mounting Rail
Product Line:
EliteSTOR
Product Model:
ES316X12
Product Type:
DAS Storage System
Rack Height:
3U
RAID Levels:
JBOD
RAID Supported:
Yes
Redundant Power Supply:
Yes
Total Hard Drive Capacity Supported:
64 TB
