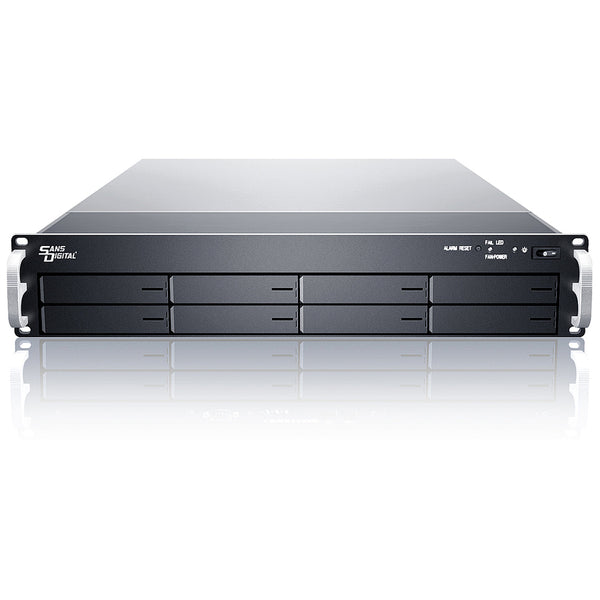

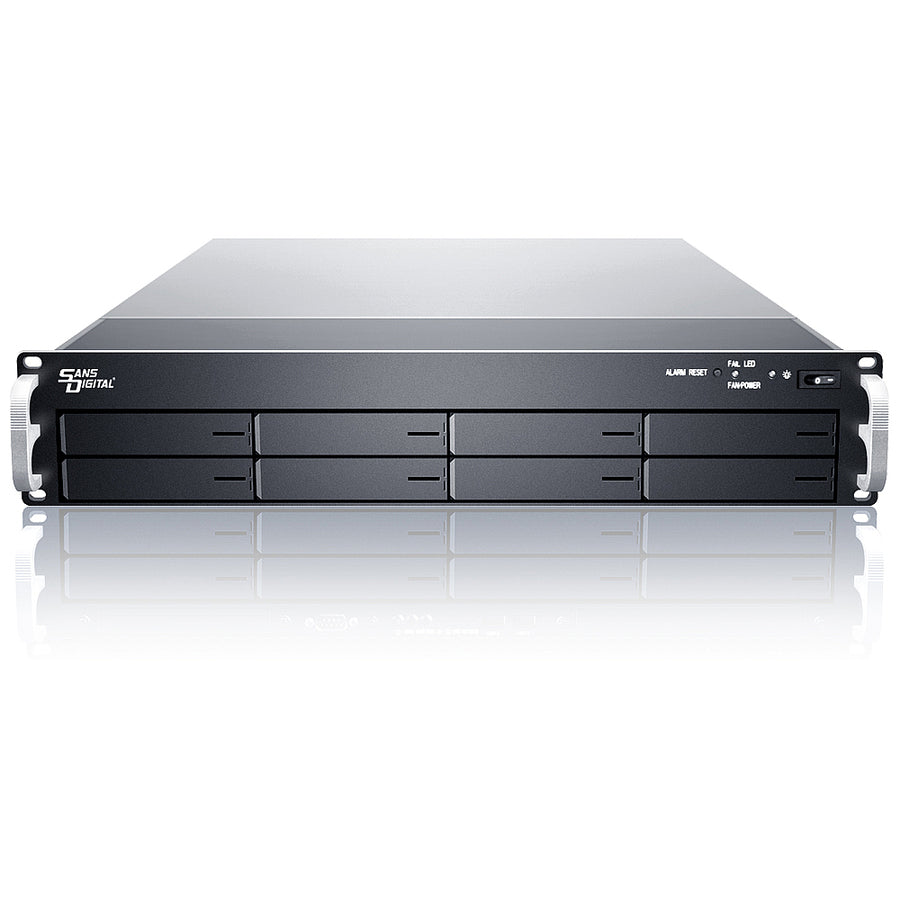

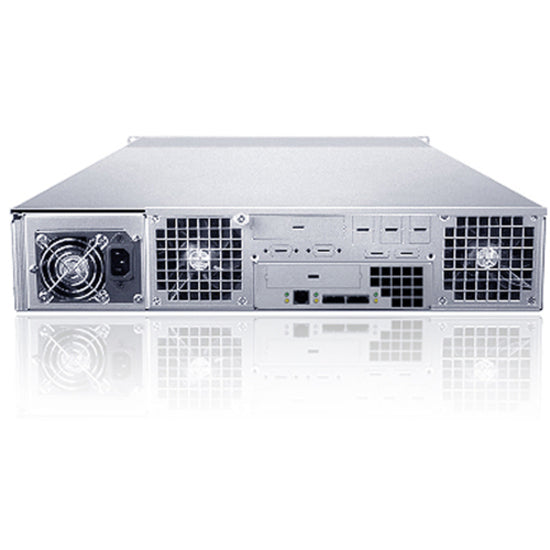

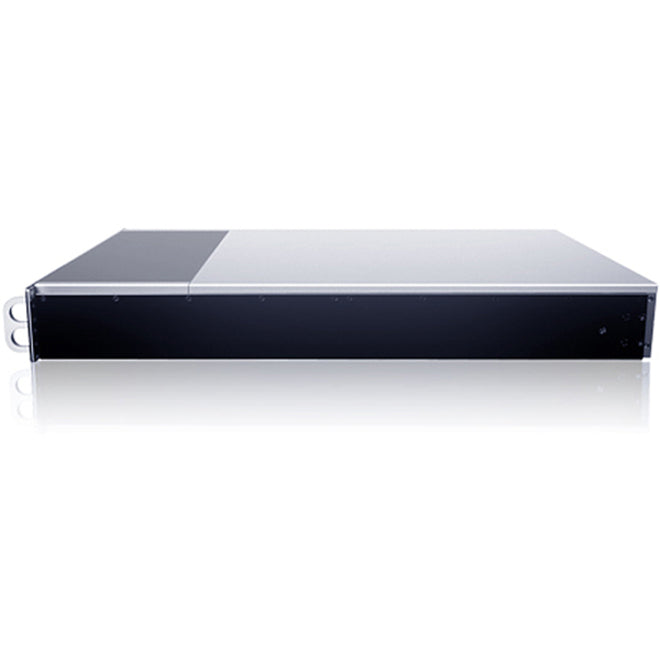

Sans Digital EliteSTOR ES208X6+B DAS Array
The EliteSTOR ES208X6+B is a 2U SAS 6G JBOD rackmount for high capacity storage solution. Utilizing the latest 6G SAS expander technology, the ES208X6+B provides up to 24 Gb/s or 2400MB/s of data bandwidth to fulfill the most demanding application. The ES208X6+B supports SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES208X6+B supports up to 8 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1880X or LSI 9280-8E, the ES208X6+B is capable of delivering over 1700MB/s in read and 1500MB/s in write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES208X6+B is an ideal storage expansion solution for servers or high performance video editing workstations.
- DAS Storage System is the single answer to all your desired storage needs
- Holds up to 8 HDDs to let you expand limitlessly
- Through RAID levels (jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Up to 24 tb Data Storage Capacity - great for demanding organizational needs
- 24 TB total solid state drive capacity support for spacious storage with much faster data transfer speed than standard hard drives
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das storage system allows a clutter-free, convenient usage with increased efficiency
Call for Availability
Shipping calculated at checkout
The EliteSTOR ES208X6+B is a 2U SAS 6G JBOD rackmount for high capacity storage solution. Utilizing the latest 6G SAS expander technology, the ES208X6+B provides up to 24 Gb/s or 2400MB/s of data bandwidth to fulfill the most demanding application. The ES208X6+B supports SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES208X6+B supports up to 8 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1880X or LSI 9280-8E, the ES208X6+B is capable of delivering over 1700MB/s in read and 1500MB/s in write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES208X6+B is an ideal storage expansion solution for servers or high performance video editing workstations.
- DAS Storage System is the single answer to all your desired storage needs
- Holds up to 8 HDDs to let you expand limitlessly
- Through RAID levels (jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Up to 24 tb Data Storage Capacity - great for demanding organizational needs
- 24 TB total solid state drive capacity support for spacious storage with much faster data transfer speed than standard hard drives
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das storage system allows a clutter-free, convenient usage with increased efficiency
- EliteSTOR ES208X6+B DAS Array
- Mini-SAS Cable
