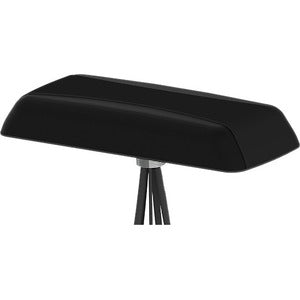

Mobile Mark LLPG502-3C3C3J3J2C-BLK-180 Antenna
SKU: LLPG502-3C3C3J3J2C-BLK-180
Mobile Mark's LLP502 Series Multiband Diversity/MIMO antenna contains five separate antenna elements, all in one compact antenna housing: two broadband LTE/Cellular an - tennas, two dual-band WiFi antennas, and one GPS antenna. The LLP502 covers Cellular LTE frequencies from 694-3700 MHz.
MIMO (multiple-input-multiple-output) modems for both WiFi and LTE/Cellular offer greater speed and capacity than earlier generations of modems. They achieve this by sending RF signals on multiple antenna elements to maximize the amount of information transmitted and received. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends.
With 5-elements, the new LLP502 antenna is ideal for fleet management systems that combine GPS with both any Global LTE MIMO modem as well as WiFi MIMO modem
Measuring 9.00" (22.8cm) x 3.50" (8.9cm) in diameter with a low profile of 1.25" (31.8mm), the LLP502 series antennas take up significantly less space than multiple antennas. The radome is available in black and white . The antennas can also be configured for combined GPS & Glonass use.
This antenna is not avaliable as a mag-mount.
MIMO (multiple-input-multiple-output) modems for both WiFi and LTE/Cellular offer greater speed and capacity than earlier generations of modems. They achieve this by sending RF signals on multiple antenna elements to maximize the amount of information transmitted and received. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends.
With 5-elements, the new LLP502 antenna is ideal for fleet management systems that combine GPS with both any Global LTE MIMO modem as well as WiFi MIMO modem
Measuring 9.00" (22.8cm) x 3.50" (8.9cm) in diameter with a low profile of 1.25" (31.8mm), the LLP502 series antennas take up significantly less space than multiple antennas. The radome is available in black and white . The antennas can also be configured for combined GPS & Glonass use.
This antenna is not avaliable as a mag-mount.
- Avaliable with GPS or with combination GPS/Glonass
- WiFi elements can be used for WiFi MIMO or for separate WiFi modems
- 5-cables: two for Cellular & LTE, two for WiFi, and one for GPS
Call for Availability
Regular price
$189.90
Sale price
$348.45
On Sale
Shipping calculated at checkout
Mobile Mark's LLP502 Series Multiband Diversity/MIMO antenna contains five separate antenna elements, all in one compact antenna housing: two broadband LTE/Cellular an - tennas, two dual-band WiFi antennas, and one GPS antenna. The LLP502 covers Cellular LTE frequencies from 694-3700 MHz.
MIMO (multiple-input-multiple-output) modems for both WiFi and LTE/Cellular offer greater speed and capacity than earlier generations of modems. They achieve this by sending RF signals on multiple antenna elements to maximize the amount of information transmitted and received. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends.
With 5-elements, the new LLP502 antenna is ideal for fleet management systems that combine GPS with both any Global LTE MIMO modem as well as WiFi MIMO modem
Measuring 9.00" (22.8cm) x 3.50" (8.9cm) in diameter with a low profile of 1.25" (31.8mm), the LLP502 series antennas take up significantly less space than multiple antennas. The radome is available in black and white . The antennas can also be configured for combined GPS & Glonass use.
This antenna is not avaliable as a mag-mount.
MIMO (multiple-input-multiple-output) modems for both WiFi and LTE/Cellular offer greater speed and capacity than earlier generations of modems. They achieve this by sending RF signals on multiple antenna elements to maximize the amount of information transmitted and received. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends.
With 5-elements, the new LLP502 antenna is ideal for fleet management systems that combine GPS with both any Global LTE MIMO modem as well as WiFi MIMO modem
Measuring 9.00" (22.8cm) x 3.50" (8.9cm) in diameter with a low profile of 1.25" (31.8mm), the LLP502 series antennas take up significantly less space than multiple antennas. The radome is available in black and white . The antennas can also be configured for combined GPS & Glonass use.
This antenna is not avaliable as a mag-mount.
- Avaliable with GPS or with combination GPS/Glonass
- WiFi elements can be used for WiFi MIMO or for separate WiFi modems
- 5-cables: two for Cellular & LTE, two for WiFi, and one for GPS
Antenna Gain:
26 dB
Application/Usage:
GPS,Cellular Network,Wireless Data Network,GLONASS
Connector Type:
SMA,RP-SMA
Limited Warranty:
2 Year
Manufacturer:
Mobile Mark, Inc
Manufacturer Website Address:
http://www.mobilemark.com
Operating Frequency Range:
1575 MHz,1710 MHz to 3700 MHz,1612 MHz,2.4 GHz to 2.5 GHz,694 MHz to 960 MHz,4.9 GHz to 6.0 GHz
Product Color:
Black
Product Model:
LLPG502-3C3C3J3J2C-BLK-180
Product Series:
LLP502
Product Type:
Antenna
