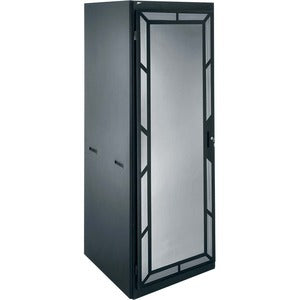

Middle Atlantic DRK Series Rack, DRK19-44-31K
SKU: DRK194431K
DRK19-44-31K
Purpose-built to support high-density cable management, the DRK series rack enclosures has a 30" wide footprint for abundant internal cable space and can accommodate 19" panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.
Purpose-built to support high-density cable management, the DRK series rack enclosures has a 30" wide footprint for abundant internal cable space and can accommodate 19" panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.
- One pair of cable ductss with solid steel hinged doors and 4-point magnetic closure pre-installed in front
- 23" panel width version available
- Vented rear door standard
- 2 pairs of wide 11-gauge rackrail labeled with EIA standard rackspace increments available 10-32 threaded or cage-nut style
- 1/2", 3/4", 1" & 1-1/2" electrical knockouts on split rear plates (top & bottom), easily removable for cable pass-through, top plates additionally include UHF/VHF knockouts
- 4 Grounding and bonding studs installed in base and top
- Includes 100 qty. rack screws
- 30" OD width, 31-1/2", 36" and 42" OD depths available
- 1/8" thick structural steel internal braces
- Fully welded construction provides the following weight capacities - UL Listed load capacity: 2,500 lbs - Static load capacity: 10,000 lbs. - Seismic load capacity: 755 lbs.
Call for Availability
Regular price
$3,677.32
Sale price
$6,719
On Sale
Shipping calculated at checkout
DRK19-44-31K
Purpose-built to support high-density cable management, the DRK series rack enclosures has a 30" wide footprint for abundant internal cable space and can accommodate 19" panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.
Purpose-built to support high-density cable management, the DRK series rack enclosures has a 30" wide footprint for abundant internal cable space and can accommodate 19" panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.
- One pair of cable ductss with solid steel hinged doors and 4-point magnetic closure pre-installed in front
- 23" panel width version available
- Vented rear door standard
- 2 pairs of wide 11-gauge rackrail labeled with EIA standard rackspace increments available 10-32 threaded or cage-nut style
- 1/2", 3/4", 1" & 1-1/2" electrical knockouts on split rear plates (top & bottom), easily removable for cable pass-through, top plates additionally include UHF/VHF knockouts
- 4 Grounding and bonding studs installed in base and top
- Includes 100 qty. rack screws
- 30" OD width, 31-1/2", 36" and 42" OD depths available
- 1/8" thick structural steel internal braces
- Fully welded construction provides the following weight capacities - UL Listed load capacity: 2,500 lbs - Static load capacity: 10,000 lbs. - Seismic load capacity: 755 lbs.
Environmentally Friendly:
Yes
Environmental Certification:
GREENGUARD
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Cable Management,Adjustable Mounting Rails,Removable Door,Lockable Door
Form Factor:
Floor Standing
Limited Warranty:
Lifetime
Manufacturer:
Legrand Group
Manufacturer Website Address:
http://www.legrand.us
Package Contents:
- DRK Series Rack, DRK19-44-31K
- 100 x Rack Screws
- Partially Vented Locking-Rear Door
- MW-10FT
Product Color:
Black Powder Coat
Product Material:
Steel
Product Model:
DRK19-44-31K
Product Series:
DRK
Product Type:
Rack Cabinet
Rack Depth:
24.25"
Rack Height:
44U
Rack Width:
19"
Static/Stationary Weight Capacity:
10000 lb
