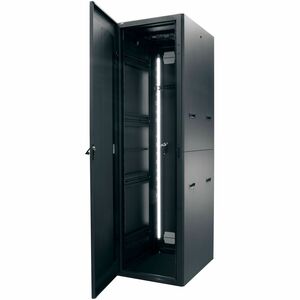

Middle Atlantic BGR Series 45RU AV Rack with Rear Door - 32in Depth
SKU: BGR-4532-AV
A pre-configured BGR built for today's AV systems. The accessories and options included with the Pre-Configured BGR for AV are exactly what you need to deliver an optimized AV system. It includes some of our most popular Forward accessories as well as thermal management and cable management. This rack includes (4) Forward 1RU flanged blank panels (FWD-EB1), (2) Forward 2RU flanged blank panels (FWD-EB2), (1) 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK), (1) 4pk of Forward 2in offset horizontal lacer bar (FWD-LB-2A-4PK), (1) Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-44-45), (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-44-45) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15, (2) Lever Lock vertical channel (LL-VC21), (1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15), (2) Velcro straps for tie saddles (TW12), (2) 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4), (1) Lever Lock plate for small device mounting (LL-VP2110), (1) DC fan top with 4 fans moving 276CFM.Includes controller and plugs for North America, EU, UK and Australia (IBGR-276FT-FC), (1) Solid front door (BFD-45), (1) Pair of side panels (BSPN-45-32), (1) set of leveling feet (LF-HD), and (100) 10-32 threaded rack screws (HP).
- All BGRs are now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels,vent panels horizontal cable management and vertical cable management
- Provides more rackspace in a smaller overall height than similar racks
- Accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories
- Fully welded construction provides the following weight capacities: UL Listed load capacity: 3,000 lbs., Seismic certified capacity: 1,175 lbs.
- Pre-threaded ganging holes allow for rack joining after loading
- Rackrail depth indicators

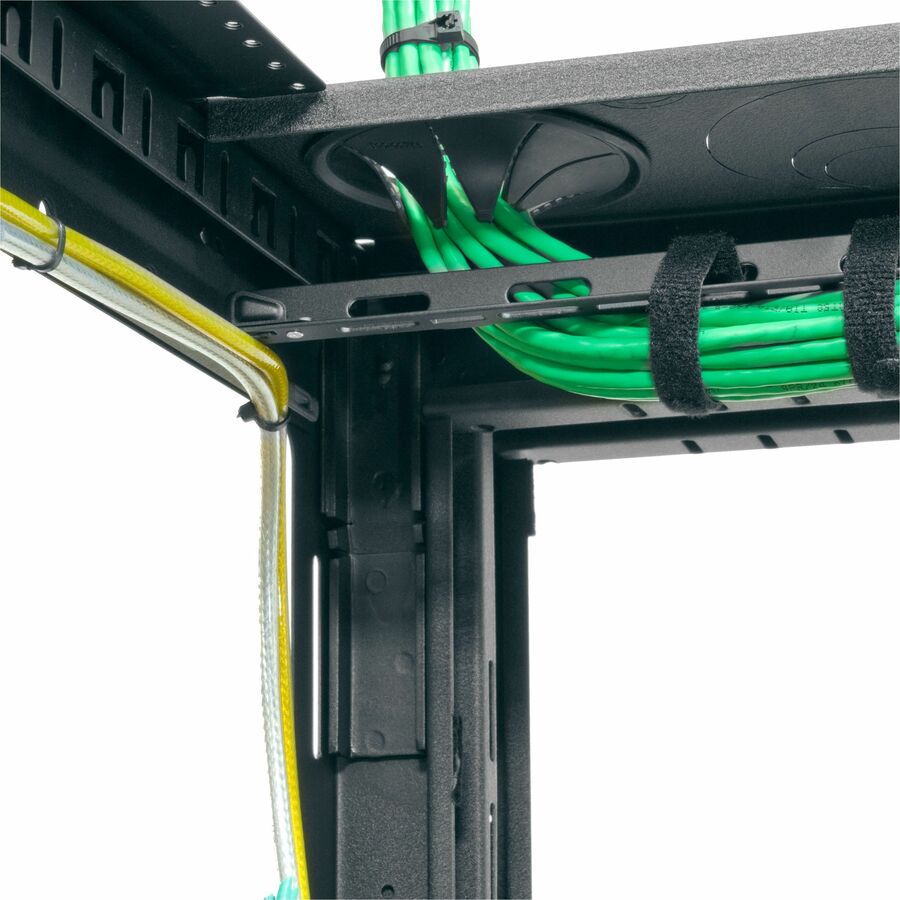

- 1/2", 3/4", 1" & 1-1/2" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts on rear top & bottom, easily removable for cable pass through. Top cable management plate (38 space and up) includes 1/2", 3/4", 1" 1-1/2" & 3" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts
- 23" OD width, multiple depths
- Two pairs of 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
- Optional stackable 3" extender bay available for front and rear
Call for Availability
Regular price
$2,714.86
Sale price
$4,943
On Sale
Shipping calculated at checkout
A pre-configured BGR built for today's AV systems. The accessories and options included with the Pre-Configured BGR for AV are exactly what you need to deliver an optimized AV system. It includes some of our most popular Forward accessories as well as thermal management and cable management. This rack includes (4) Forward 1RU flanged blank panels (FWD-EB1), (2) Forward 2RU flanged blank panels (FWD-EB2), (1) 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK), (1) 4pk of Forward 2in offset horizontal lacer bar (FWD-LB-2A-4PK), (1) Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-44-45), (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-44-45) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15, (2) Lever Lock vertical channel (LL-VC21), (1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15), (2) Velcro straps for tie saddles (TW12), (2) 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4), (1) Lever Lock plate for small device mounting (LL-VP2110), (1) DC fan top with 4 fans moving 276CFM.Includes controller and plugs for North America, EU, UK and Australia (IBGR-276FT-FC), (1) Solid front door (BFD-45), (1) Pair of side panels (BSPN-45-32), (1) set of leveling feet (LF-HD), and (100) 10-32 threaded rack screws (HP).
- All BGRs are now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels,vent panels horizontal cable management and vertical cable management
- Provides more rackspace in a smaller overall height than similar racks
- Accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories
- Fully welded construction provides the following weight capacities: UL Listed load capacity: 3,000 lbs., Seismic certified capacity: 1,175 lbs.
- Pre-threaded ganging holes allow for rack joining after loading
- Rackrail depth indicators
- 1/2", 3/4", 1" & 1-1/2" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts on rear top & bottom, easily removable for cable pass through. Top cable management plate (38 space and up) includes 1/2", 3/4", 1" 1-1/2" & 3" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts
- 23" OD width, multiple depths
- Two pairs of 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
- Optional stackable 3" extender bay available for front and rear
Application/Usage:
A/V Equipment
Color Family:
Black
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Certification:
GREENGUARD Gold
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Product Environmental Profile (PEP) ecopassport
Features:
Cable Management,Adjustable Mounting Rails,Removable Panel,Cooling Fan,Leveling Feet
Form Factor:
Floor Standing
Limited Warranty:
Lifetime
Manufacturer:
Legrand Group
Manufacturer Website Address:
http://www.legrand.us
Maximum Weight Capacity:
3000 lb
Package Contents:
- 4 x Forward 1RU Flanged Blank Panels
- 2 x Forward 2RU Flanged Blank Panels
- 1 x 4pk of Forward Straight Horizontal Lacer Bar
- 1 x 4pk of Forward 2" Offset Horizontal Lacer Bar
- 1 x Forward Vertical Wire Grid Lace For Vertical And horizontal Cable Routing On A Single Lace Bar
- 1 x Forward Vertical Cable Management Lace With The Patented Universal Hole pattern.
- 2 x Lever Lock Vertical Channel
- 1 x 15pk of Forward Tie Saddles For Optimal Cable Management In Any Direction Using Absolutely No Hardware. Accepts Both Cable Zip Ties and Hook & Loop.
- 2 x Velcro Straps For Tie Saddles
- 2 x 4pk of Forward Small Device Clamps For Quick Mounting Of Small, Non-Rackmount Devices Without Any Hardware

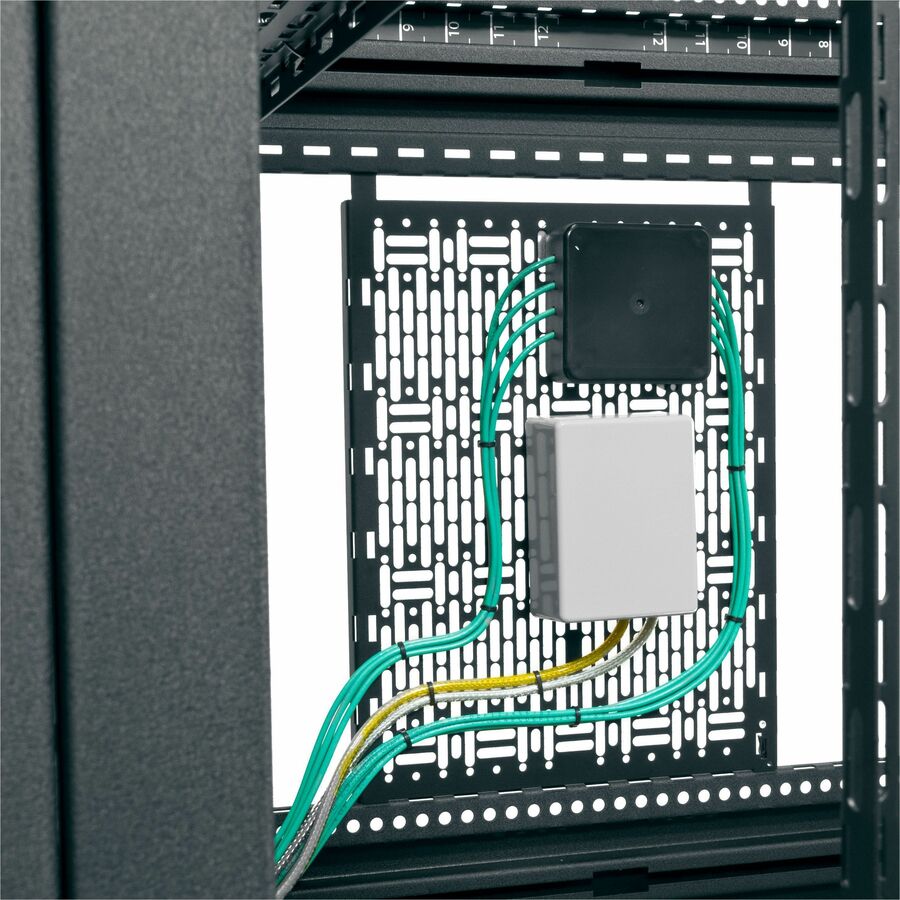

- 1 x Lever Lock Plate For Small Device Mounting
- 1 x DC Fan Top With 4 Fans Moving 276CFM. Includes Controller
- 1 x Solid Front Door
- 1 x Pair of Side Panels
- 1 x Set Of Leveling Feet
- 100 x 10-32 Threaded Rack Screws
Product Color:
Black
Product Material:
Steel
Product Series:
BGR
Product Type:
Rack Cabinet
Rack Depth:
22.80"
Rack Height:
45U
Rack Type:
Enclosed Cabinet
Rack Width:
19"
