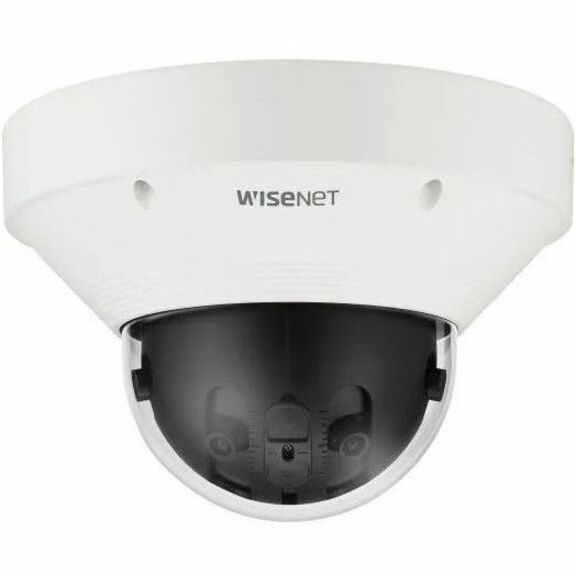

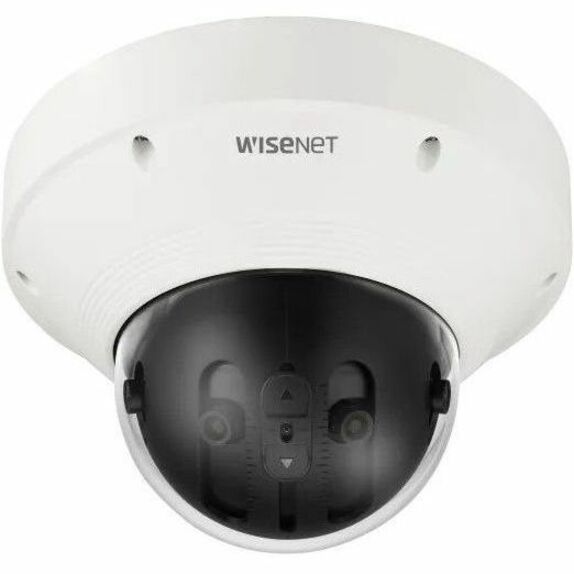

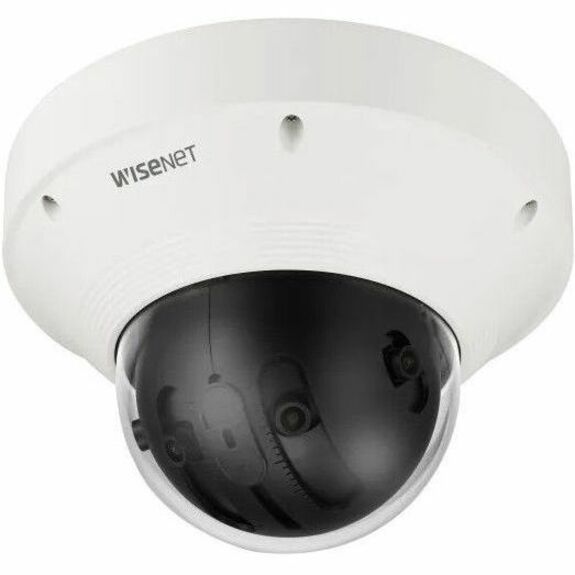

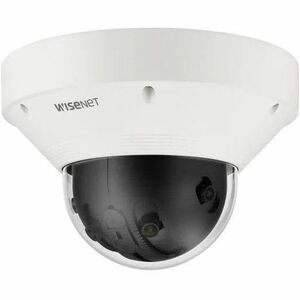

Wisenet PNM-9022V 2 Megapixel Network Camera - Color - Dome - White - TAA Compliant
SKU: PNM-9022V/KUS
Wisenet PNM-9022V 2 Megapixel Network Camera - Color - Dome - White - TAA Compliant - H.265, H.264, MJPEG, H.264M, H.264B, H.264H - 4608 x 1800 - 2.80 mm Fixed Lens - 30 fps - CMOS - Fast Ethernet - USB - Hanging Mount, Gang Box Mount, Conduit Mount - IK10 - IP66
- 8.3MP (4096 x 1800@180°, 4608 x 1800@209°) resolution
- 180°/209° panoramic stitching image
- 30fps at all resolutions (H.265/H.264/MJPEG)
- H.265, H.264, MJPEG codec, WiseStream II supported
- Tampering, Directional detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Motion detection, Handover, Heatmap
- micro SD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
- USB connector for easy setup with optional Wi-Fi adapter
Call for Availability
Regular price
$1,674
Sale price
$1,800
On Sale
Shipping calculated at checkout
Wisenet PNM-9022V 2 Megapixel Network Camera - Color - Dome - White - TAA Compliant - H.265, H.264, MJPEG, H.264M, H.264B, H.264H - 4608 x 1800 - 2.80 mm Fixed Lens - 30 fps - CMOS - Fast Ethernet - USB - Hanging Mount, Gang Box Mount, Conduit Mount - IK10 - IP66
- 8.3MP (4096 x 1800@180°, 4608 x 1800@209°) resolution
- 180°/209° panoramic stitching image
- 30fps at all resolutions (H.265/H.264/MJPEG)
- H.265, H.264, MJPEG codec, WiseStream II supported
- Tampering, Directional detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Motion detection, Handover, Heatmap
- micro SD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
- USB connector for easy setup with optional Wi-Fi adapter
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Country of Origin:
Korea
Diameter:
10"
Effective Camera Resolution:
2 Megapixel
Ethernet Technology:
Fast Ethernet
Features:
Wide Dynamic Range,Day/Night,Back Light Compensation (BLC),Highlight Compensation (HLC),Digital Noise Reduction,Defog,Motion Detection,Privacy Masking,Gain Control,White Balance,Mirror,Anti-flicker,Tamper Detection
Field of View:
H: 209°, V: 83.3°
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Input Voltage:
12 V DC
Lens Included:
Yes
Lens Type:
Fixed
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/1.6
Maximum Focal Length:
2.80 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
95%
Maximum Operating Temperature:
140°F (60°C)
Maximum Video Resolution:
4608 x 1800
Minimum Operating Temperature:
-40°F (-40°C)
Mount Type:
Hanging Mount,Gang Box Mount,Conduit Mount
Network (RJ-45):
Yes
Number of Sensors:
4
Power Source Type:
DC,PoE+
Product Color:
White
Product Model:
PNM-9022V
Product Series:
P
Product Type:
Network Camera
Protocols:
IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,UPnP,Bonjour,LLDP,SRTP
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
TAA Compliant:
Yes
USB:
Yes
Video Formats:
H.265,H.264,MJPEG,H.264M,H.264B,H.264H
