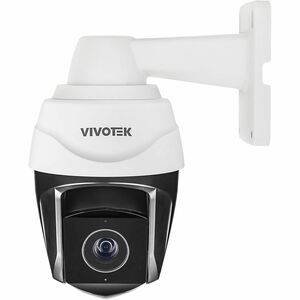

Vivotek SD9368-EHL 2 Megapixel Full HD Network Camera - Color - Dome - White

SKU: SD9368-EHL

The new VIVOTEK SD9368-EHL is a professional IR speed dome camera (PTZ) with 2MP resolution at 60fps, excellent for video surveillance in wide coverage areas such as airports, city surveillance, and manufacturing facilities. SD9368-EHL is equipped with 250M IR illuminators and a 40x optical zoom to gain more details in any scene. The smart IR technology allows broad coverage FOV and highly uniform IR intensity while at the same time avoiding hotspots.

Video surveillance in big areas has the potential for many incidents, SD9368-EHL's built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track the suspected person automatically in real time.

SD9368-EHL's camera body is protected with IP66, IK10 and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40? to 60? (-40°F to 140°F) for operation in extreme weather conditions.

  • 60 fps @ 1920x1080
  • 40x Optical Zoom, Auto Focus
  • 360° Continuous Pan, -20° to 90° (auto flip) Tilt
  • 250M IR with Smart IR
  • Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
  • -40°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions
  • EIS (Electronic Image Stabilization) for Image Stability
  • Trend Micro IoT Security
  • Smart Tracking Advanced for Moving People with People-based Deep Learning Technology

Call for Availability

Regular price $2,655.31 Sale price $2,910
On Sale

Shipping calculated at checkout

Details

The new VIVOTEK SD9368-EHL is a professional IR speed dome camera (PTZ) with 2MP resolution at 60fps, excellent for video surveillance in wide coverage areas such as airports, city surveillance, and manufacturing facilities. SD9368-EHL is equipped with 250M IR illuminators and a 40x optical zoom to gain more details in any scene. The smart IR technology allows broad coverage FOV and highly uniform IR intensity while at the same time avoiding hotspots.

Video surveillance in big areas has the potential for many incidents, SD9368-EHL's built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track the suspected person automatically in real time.

SD9368-EHL's camera body is protected with IP66, IK10 and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40? to 60? (-40°F to 140°F) for operation in extreme weather conditions.

  • 60 fps @ 1920x1080
  • 40x Optical Zoom, Auto Focus
  • 360° Continuous Pan, -20° to 90° (auto flip) Tilt
  • 250M IR with Smart IR
  • Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
  • -40°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions
  • EIS (Electronic Image Stabilization) for Image Stability
  • Trend Micro IoT Security
  • Smart Tracking Advanced for Moving People with People-based Deep Learning Technology
Specifications
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Country of Origin:
Taiwan
Durability:
Weather Resistant,Weather Proof,Vandal Proof,Rain Resistant,Dust Resistant,Corrosion Resistant
Effective Camera Resolution:
2 Megapixel
Features:
Auto Tracking,Cross Line Detection,Face Detection,Video Management System,Wide Dynamic Range,Day/Night,Removable IR Cut-off Filter,Mirror,Auto Flip,3D Digital Noise Reduction,Defog,Privacy Masking,Privacy Protection,White Balance
Field of View:
65.70° ~ 1.88° (Horizontal), 39.39° ~ 1.09° (Vertical), 73.03° ~2.13° (Diagonal)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Input Voltage:
24 V AC,48 V DC
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
36 Month
Longest Shutter Speed:
1 Second
Manufacturer:
Vivotek, Inc
Manufacturer Website Address:
http://www.vivotek.com
Maximum Aperture:
f/4.95
Maximum Focal Length:
170 mm
Maximum Frame Rate:
60 fps
Maximum Operating Humidity:
98%
Maximum Operating Temperature:
131°F (55°C)
Maximum Video Resolution:
1920 x 1080
Minimum Aperture:
f/1.6
Minimum Focal Length:
4.25 mm
Minimum Operating Temperature:
-40°F (-40°C)
Mount Type:
Wall Mount
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
820.21 ft
Night Vision Type:
Infrared
Number of IR LEDs:
8
Optical Zoom:
40x
Package Contents:
  • SD9368-EHL Speed Dome Network Camera
  • Wall mount bracket
  • Quick installation guide
  • Alignment sticker
  • Screw pack
  • Desiccant bag
  • Waterproof accessory bag
  • Conduit ring
  • Terminal block
Power Source Type:
AC,DC,PoE
Product Color:
White
Product Model:
SD9368-EHL
Product Series:
S
Product Type:
Network Camera
Recording Formats:
Full HD
Remote Management:
Yes
Shortest Shutter Speed:
1/100000 Second
Storage Type:
Memory Card
Video Formats:
H.264,H.265,MJPEG
