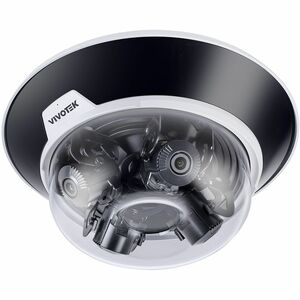

Vivotek MA9322-EHTVL 5 Megapixel Network Camera - Color - Dome - Black

SKU: MA9322-EHTVL

High Quality Unlimited Coverage

Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.

360° Extreme Low Light Visibility

By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.

  • H.265 Compression Technology
  • 4x 5MP Independent Sensors, Adjustable Views
  • 30 fps (2688x1920) per Sensor
  • WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Built-in IR Illuminators, Effective up to 30 Meters Radius
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Built-in Microphone

Call for Availability

Regular price $2,464.48 Sale price $2,700
On Sale

Shipping calculated at checkout

Details

High Quality Unlimited Coverage

Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.

360° Extreme Low Light Visibility

By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.

  • H.265 Compression Technology
  • 4x 5MP Independent Sensors, Adjustable Views
  • 30 fps (2688x1920) per Sensor
  • WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Built-in IR Illuminators, Effective up to 30 Meters Radius
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Built-in Microphone
Specifications
Color Family:
Black
Color Supported:
Color
Connectivity Technology:
Wired
Country of Origin:
Taiwan
Diameter:
10.5"
Durability:
Weather Proof,Vandal Proof
Effective Camera Resolution:
5 Megapixel
Features:
Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,Noise Detection,Audio Detection,Tamper Detection,SD Card Local Storage,Motion Detection,HTTPS Encryption,Password Protection,Built-in Microphone,Audio Compression
Field of View:
88.6° ~ 40.1° (Horizontal), 61.2° ~ 28.6° (Vertical), 115.5° ~ 49.5° (Diagonal)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.7"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Input Voltage:
24 V AC
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
36 Month
Longest Shutter Speed:
1/5 Second
Manufacturer:
Vivotek, Inc
Manufacturer Website Address:
http://www.vivotek.com
Maximum Aperture:
f/1.9
Maximum Focal Length:
7.70 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
90%
Maximum Operating Temperature:
122°F (50°C)
Maximum Video Resolution:
2688 x 1920
Minimum Aperture:
f/2.9
Minimum Focal Length:
3.70 mm
Minimum Operating Temperature:
-22°F (-30°C)
Mount Type:
Desk Mount,Wall Mount
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of Sensors:
4
Optical Zoom:
2.1x
Package Contents:
  • MA9322-EHTVL Network Camera
  • Quick installation guide
  • Alignment sticker
  • Desiccant bag
  • Screw driver
  • Screws pack
Power Source Type:
AC,PoE
Product Color:
Black
Product Model:
MA9322-EHTVL
Product Series:
S
Product Type:
Network Camera
Remote Management:
Yes
Shortest Shutter Speed:
1/32000 Second
Storage Type:
Memory Card
Video Formats:
H.265,H.264,MJPEG
