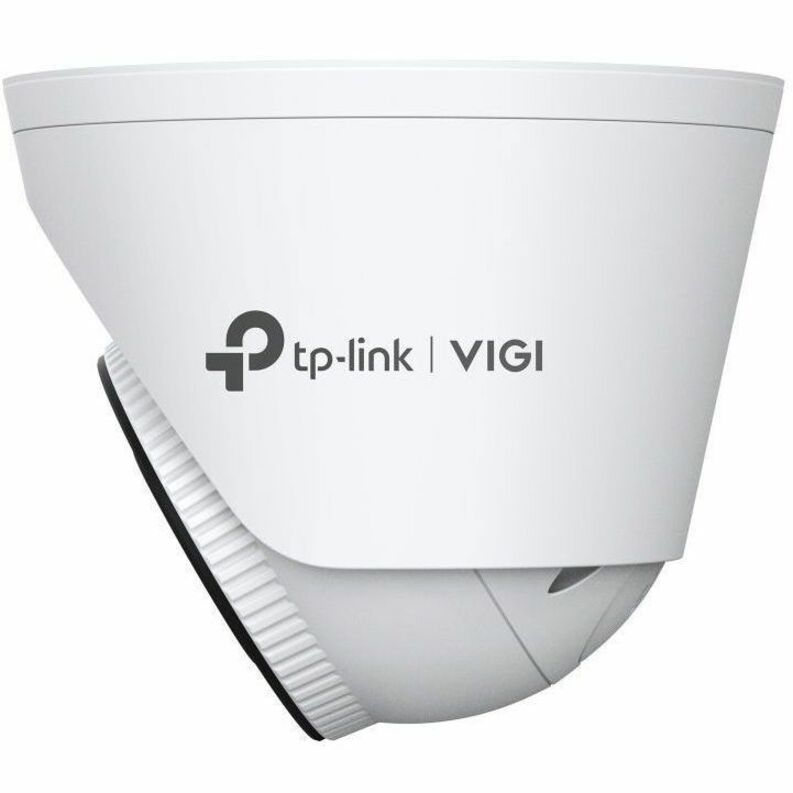

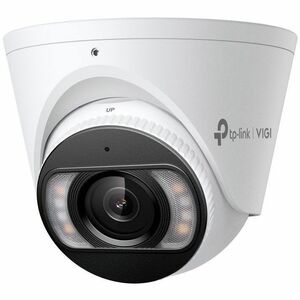

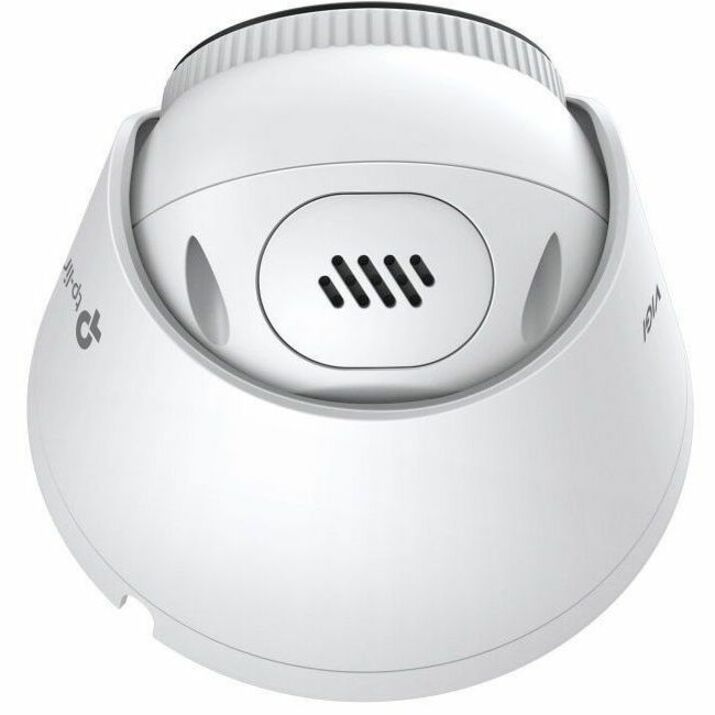

TP-Link InSight InSight S485 8 Megapixel 4K Network Camera - Color - Turret

SKU: INSIGHT S485(2.8MM)

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

  • True WDR:By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
  • Smart IR:Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
  • 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
  • White Balance:White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

More from the Manufacturer

  • 4K (8MP) Ultra HD and 24h Full-Color
  • People & Vehicle Analytics�
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology
  • 12V DC/PoE

Call for Availability

Regular price $234.54 Sale price $299
On Sale

Shipping calculated at checkout

Details

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

  • True WDR:By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
  • Smart IR:Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
  • 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
  • White Balance:White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

More from the Manufacturer

  • 4K (8MP) Ultra HD and 24h Full-Color
  • People & Vehicle Analytics�
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology
  • 12V DC/PoE
Specifications
Audio Support:
Yes
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
4.4"
Durability:
Water Proof,Weather Proof
Effective Camera Resolution:
8 Megapixel
Ethernet Technology:
Fast Ethernet
Features:
Alarm Triggering,Vehicle Detection,Human Detection,Wide Dynamic Range,3D Digital Noise Reduction,Noise Reduction,White Balance,Built-in Microphone,Day/Night,Mirror
Field of View:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
Form Factor:
Turret
HD Recording:
Yes
Image Sensor Size:
1/2.7"
Image Sensor Type:
CMOS
Infrared (IR) Cut-off Filter:
Yes
Ingress Protection Rating:
IP67
Input Voltage:
12 V DC
Length:
4.4"
Lens Included:
Yes
Lens Mount Type:
M12-mount
Lens Type:
Fixed
Longest Shutter Speed:
1/3 Second
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com/us
Maximum Aperture:
f/1.6
Maximum Focal Length:
2.80 mm
Maximum Frame Rate:
25 fps
Maximum Operating Humidity (Non-condensing):
95%
Maximum Operating Temperature:
140°F (60°C)
Maximum Power Consumption:
12.50 W
Maximum Storage Humidity (Non-condensing):
95%
Maximum Storage Temperature:
140°F (60°C)
Maximum Video Resolution:
3840 x 2160
Minimum Operating Temperature:
-22°F (-30°C)
Minimum Storage Temperature:
-40°F (-40°C)
Mount Type:
Ceiling Mount,Wall Mount
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared/Color
Number of IR LEDs:
4
Package Contents:
  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
Power Source Type:
DC,PoE
Product Line:
InSight
Product Material:
Metal
Product Model:
InSight S485
Product Type:
Network Camera
Protocols:
TCP/IP,UDP,ICMP,HTTP,HTTPS,DHCP,DNS,RTSP,NTP,UPnP,SSL/TLS,FTP,SFTP,RTP,IPv4,IPv6,ARP
Recording Formats:
4K
Remote Management:
Yes
Shortest Shutter Speed:
1/10000 Second
Storage Type:
Memory Card
Video Formats:
H.265+,H.265,H.264,H.264+,H.264H,H.265M
