Marshall CV630-NDI 8.5 Megapixel 4K Network Camera - Color - Black

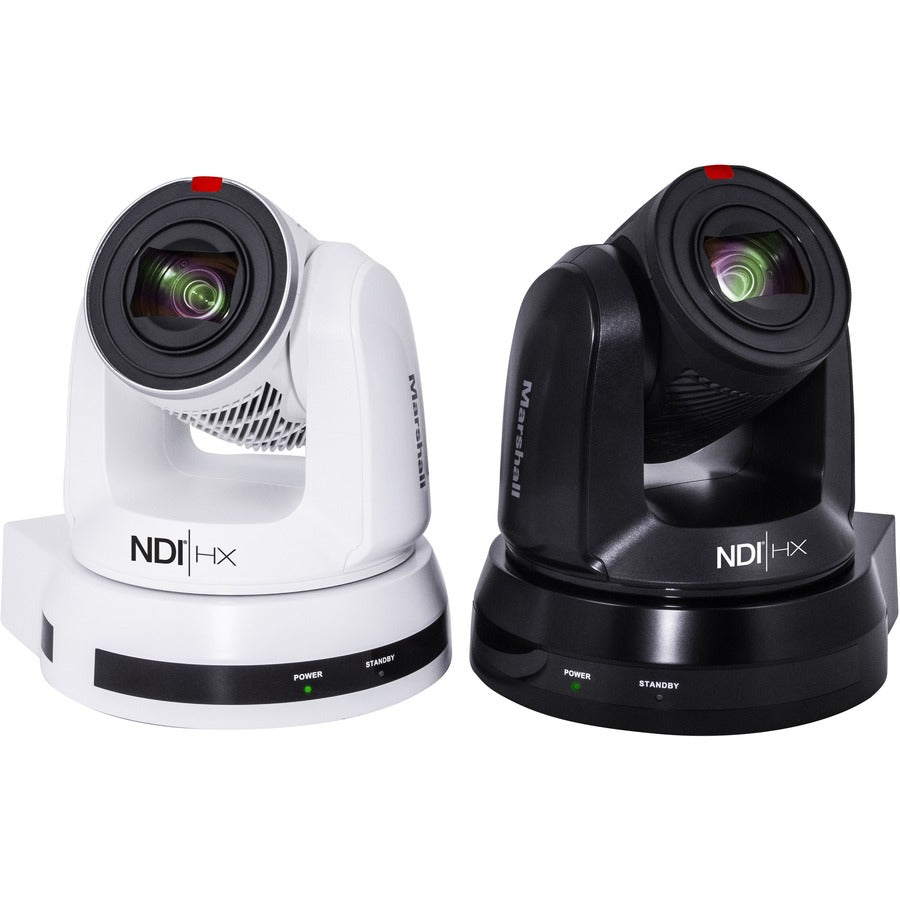

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution. NDI®|HX provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens up the ability to integrate more video devices and applications into your NDI production workflow.
High Performance Video Output
Featuring NDI HX with simultaneous HDMI and 3GSDI from a professional level 8-megapixel UHD sensor and smooth synchronous movements. At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video at 30fps, with support for HD resolutions.
Versatile Camera Positioning
The CV630-NDI is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.
Simultaneous Networked and Streaming Outputs

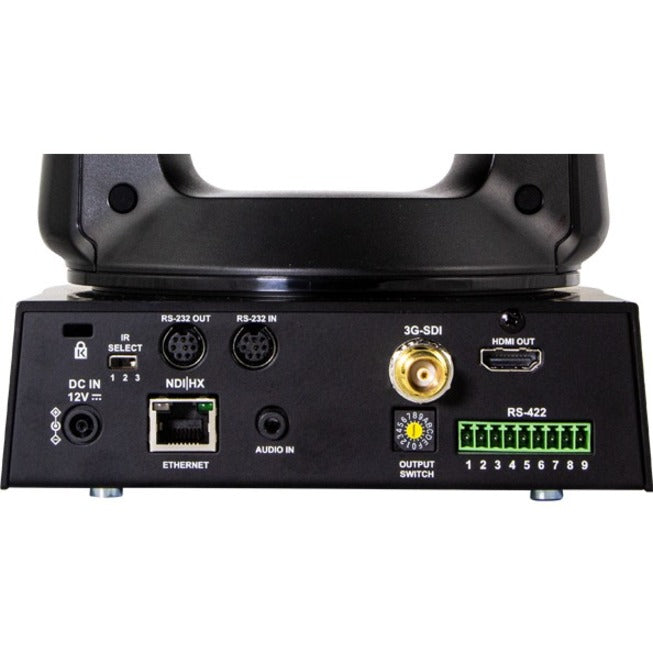

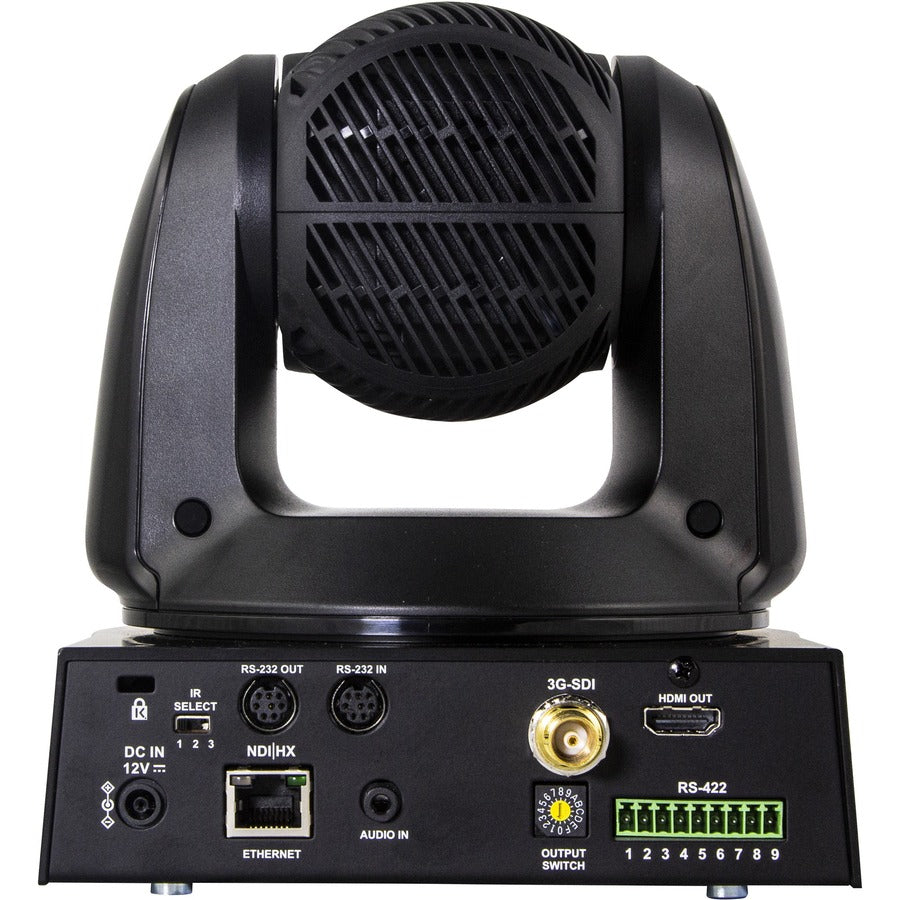

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and NDI HX. Install one-cable to camera with NDI HX for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for Power/Preview and other outputs (3GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.
Flexible Control Options
The CV630-NDI offers easy control over broadcast settings controllable from NDI Tools such as NDI Studio Monitor and other NDI Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-NDI is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.
- 8.5 Megapixel
- Professional Grade 1/2.5" Sony Sensor
- 30x Optical Zoom (4.6~135mm)
- Up to 3840x2160 (UHD) at 30fps
- Almost 70° Horizontal AOV wide open
- Simultaneous 3GSDI, HDMI and NDI®
- HX
- Flexible 340° pan and 120° tilt range
- PoE+, Video, Audio, Tally, Control (one cable)
Call for Availability
Shipping calculated at checkout
The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution. NDI®|HX provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens up the ability to integrate more video devices and applications into your NDI production workflow.
High Performance Video Output
Featuring NDI HX with simultaneous HDMI and 3GSDI from a professional level 8-megapixel UHD sensor and smooth synchronous movements. At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video at 30fps, with support for HD resolutions.
Versatile Camera Positioning
The CV630-NDI is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.
Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and NDI HX. Install one-cable to camera with NDI HX for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for Power/Preview and other outputs (3GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.
Flexible Control Options
The CV630-NDI offers easy control over broadcast settings controllable from NDI Tools such as NDI Studio Monitor and other NDI Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-NDI is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.
- 8.5 Megapixel
- Professional Grade 1/2.5" Sony Sensor
- 30x Optical Zoom (4.6~135mm)
- Up to 3840x2160 (UHD) at 30fps
- Almost 70° Horizontal AOV wide open
- Simultaneous 3GSDI, HDMI and NDI®
- HX
- Flexible 340° pan and 120° tilt range
- PoE+, Video, Audio, Tally, Control (one cable)
