Microchip Adaptec® SmartHBA 2100-8i8e Single
SKU: 2301900-R

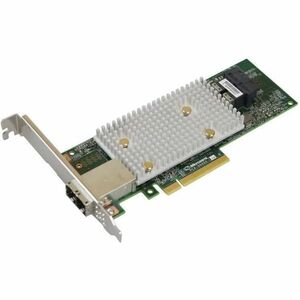

The 12 Gbps Adaptec SmartHBA 2100-8i8e Host Bus Adapter has 8 internal and 8 external SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor and uniquely combines the capabilities of a full-featured host bus adapter (HBA) with those of a basic RAID adapter using hardware RAID. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 2100 adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.7M IOPS without additional overhead or latency. The HBA 2100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.
The HBA 2100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 2100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
The HBA 2100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 2100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
- SFF-8489, IBPI
- BMC support
- SES-2, SES-3
- SFF-8485, SGPIO
- Enclosure management SES-2, SES-3 SFF-8485, SGPIO SFF-8489, IBPI
- S.M.A.R.T.
- MPIO support
- Multi-initiator (host)/clustering for SAS (HBA devices only)
- TLR
- SATA NCQ
- Hot plug drive support
- SAS expander support
- Multi-LUN support
- Support for up to 32 drives in RAID arrays
- Hardware RAID level 0,1,10,5 support
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Open Source Management tools
- Key Software Features
- CPU Platform Diversity -Support for Intel, AMD, and Cavium ThunderX2 (ARM)
- Proven compatibility with existing Adaptec Smart solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
- Familiar GUI, CLI, and pre-boot tools ensures consistent performance and user experience across all products
- Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
- Low-profile/ MD2 form factor
- 12 Gbps SAS data rates using mini-SAS HD connectors
- 40% Lowest Power than previous genrations
- +1.7M 4K random read IOPS
- Uniquely combines basic RAID functionality for up to 32 devices supporting RAID levels 0, 1, 10 and 5 in conjunction with full HBA functionality for up to 238 devices
- 28 nm SmartIOC 2100 SAS/ SATA protocol controller
- 8 internal / 8 external native SAS/SATA ports
Call for Availability
Regular price
$625.87
Sale price
$628.04
On Sale
Shipping calculated at checkout
The 12 Gbps Adaptec SmartHBA 2100-8i8e Host Bus Adapter has 8 internal and 8 external SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor and uniquely combines the capabilities of a full-featured host bus adapter (HBA) with those of a basic RAID adapter using hardware RAID. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 2100 adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.7M IOPS without additional overhead or latency. The HBA 2100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.
The HBA 2100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 2100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
The HBA 2100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 2100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
- SFF-8489, IBPI
- BMC support
- SES-2, SES-3
- SFF-8485, SGPIO
- Enclosure management SES-2, SES-3 SFF-8485, SGPIO SFF-8489, IBPI
- S.M.A.R.T.
- MPIO support
- Multi-initiator (host)/clustering for SAS (HBA devices only)
- TLR
- SATA NCQ
- Hot plug drive support
- SAS expander support
- Multi-LUN support
- Support for up to 32 drives in RAID arrays
- Hardware RAID level 0,1,10,5 support
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Open Source Management tools
- Key Software Features
- CPU Platform Diversity -Support for Intel, AMD, and Cavium ThunderX2 (ARM)
- Proven compatibility with existing Adaptec Smart solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
- Familiar GUI, CLI, and pre-boot tools ensures consistent performance and user experience across all products
- Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
- Low-profile/ MD2 form factor
- 12 Gbps SAS data rates using mini-SAS HD connectors
- 40% Lowest Power than previous genrations
- +1.7M 4K random read IOPS
- Uniquely combines basic RAID functionality for up to 32 devices supporting RAID levels 0, 1, 10 and 5 in conjunction with full HBA functionality for up to 238 devices
- 28 nm SmartIOC 2100 SAS/ SATA protocol controller
- 8 internal / 8 external native SAS/SATA ports
Controller Type:
12Gb/s SAS
Country of Origin:
Singapore
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Plug-in Card
Host Interface:
PCI Express 3.0 x8
Length:
6.6"
Limited Warranty:
3 Year
Manufacturer:
Microchip Technology Inc.
Manufacturer Website Address:
http://www.microchip.com
Number of SAS Ports (External):
8
Number of SAS Ports (Internal):
8
Platform Supported:
PC,Linux
Product Line:
SmartHBA
Product Model:
2100-8I8E
Product Series:
2100
Product Type:
SAS Controller
RAID Levels:
0,1,5,10
RAID Supported:
Yes
SAS Connector Details:
2 x SFF-8643,2 x SFF-8644
Total Number of SAS Ports:
16
