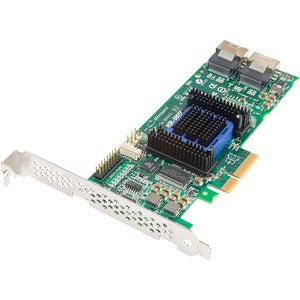

Microchip Adaptec RAID 6805E Single
SKU: 2270900-R
Microsemi Adaptec® Series 6E RAID: 6405E, 6805E True Hardware RAID Adapters with On-Board DRAM for Entry-Level Applications
Affordable True Hardware RAID that Outperforms Software-Based HBAs and SATA Controllers
The Series 6E adapters deliver the robustness of hardware RAID in an entrylevel solution. They offer the same 6 Gbps performance of our Series 6 adapters, but are optimized for platforms where a Series 6 adapter would not fit due to price, form factor, or host connectivity. The 6405E offers maximum connectivity through a 1-lane PCI Express 2.0 interface that fits into any industrial PC, workstation class or entry server class motherboard, while the 6805E has a 4-lane PCI Express 2.0 interface for application that require more bandwidth. The 6405E and the 6805E support a maximum of four and eight devices, respectively, as neither supports expanders.
Affordable True Hardware RAID that Outperforms Software-Based HBAs and SATA Controllers
The Series 6E adapters deliver the robustness of hardware RAID in an entrylevel solution. They offer the same 6 Gbps performance of our Series 6 adapters, but are optimized for platforms where a Series 6 adapter would not fit due to price, form factor, or host connectivity. The 6405E offers maximum connectivity through a 1-lane PCI Express 2.0 interface that fits into any industrial PC, workstation class or entry server class motherboard, while the 6805E has a 4-lane PCI Express 2.0 interface for application that require more bandwidth. The 6405E and the 6805E support a maximum of four and eight devices, respectively, as neither supports expanders.
Call for Availability
Regular price
$324
Sale price
$325
On Sale
Shipping calculated at checkout
Microsemi Adaptec® Series 6E RAID: 6405E, 6805E True Hardware RAID Adapters with On-Board DRAM for Entry-Level Applications
Affordable True Hardware RAID that Outperforms Software-Based HBAs and SATA Controllers
The Series 6E adapters deliver the robustness of hardware RAID in an entrylevel solution. They offer the same 6 Gbps performance of our Series 6 adapters, but are optimized for platforms where a Series 6 adapter would not fit due to price, form factor, or host connectivity. The 6405E offers maximum connectivity through a 1-lane PCI Express 2.0 interface that fits into any industrial PC, workstation class or entry server class motherboard, while the 6805E has a 4-lane PCI Express 2.0 interface for application that require more bandwidth. The 6405E and the 6805E support a maximum of four and eight devices, respectively, as neither supports expanders.
Affordable True Hardware RAID that Outperforms Software-Based HBAs and SATA Controllers
The Series 6E adapters deliver the robustness of hardware RAID in an entrylevel solution. They offer the same 6 Gbps performance of our Series 6 adapters, but are optimized for platforms where a Series 6 adapter would not fit due to price, form factor, or host connectivity. The 6405E offers maximum connectivity through a 1-lane PCI Express 2.0 interface that fits into any industrial PC, workstation class or entry server class motherboard, while the 6805E has a 4-lane PCI Express 2.0 interface for application that require more bandwidth. The 6405E and the 6805E support a maximum of four and eight devices, respectively, as neither supports expanders.
Cache Memory:
128 MB
Controller Type:
6Gb/s SAS
Environmentally Friendly:
Yes
Form Factor:
Plug-in Card
Host Interface:
PCI Express 2.0 x4
Limited Warranty:
3 Year
Manufacturer:
Microchip Technology Inc.
Manufacturer Website Address:
http://www.microchip.com
Number of SAS Ports (Internal):
8
Packaged Quantity:
1
Product Type:
SAS Controller
RAID Levels:
0,1,10,1E,JBOD
RAID Supported:
Yes
SAS Connector Details:
2 x SFF-8087
Total Number of SAS Ports:
8
