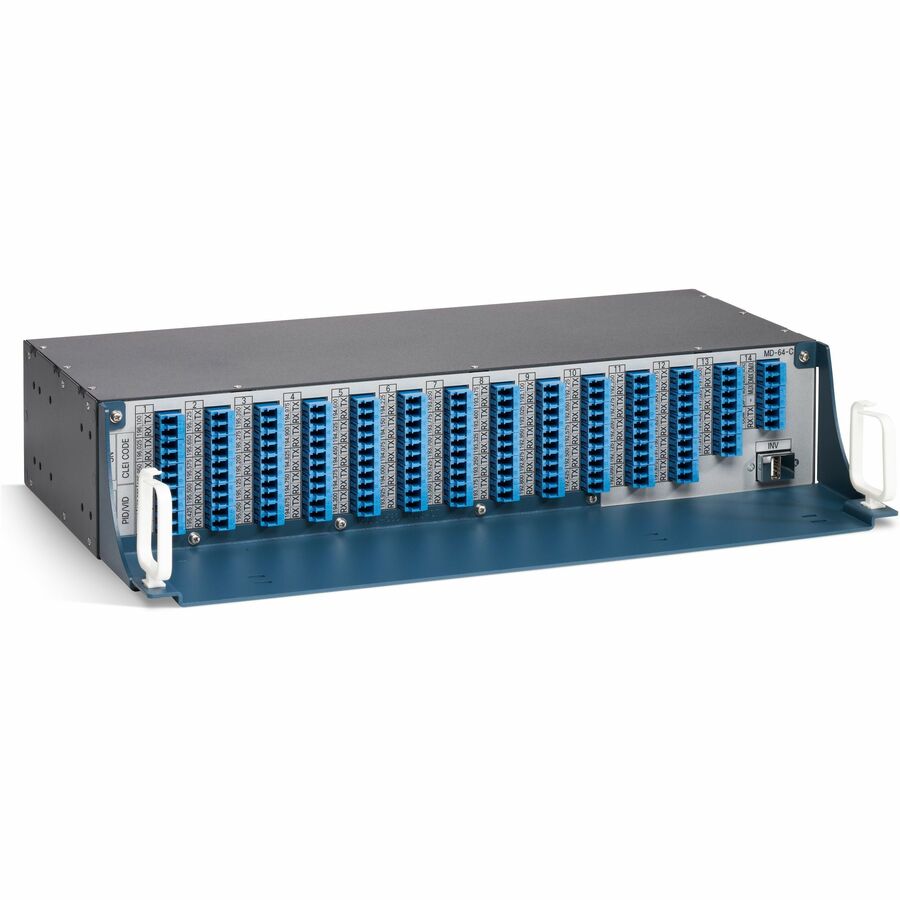

Cisco NCS 1000 64 chs Odd Mux/Demux Patch Panel - C-band
The Cisco®NCS 1000 Mux/Demux 64-Channel Patch Panel is a standalone passive unit that contains both a 64-channel optical multiplexer and a 64-channel optical demultiplexer, precabled within the unit's housing.
This unit provides support for 400ZR and NCS1004 multihaul coherent channels up to 63 Gbaud at 75-GHz spacing. This filter is designed with optimum tradeoff between bandwidth and isolation for a network designed with 64 channels of 400ZR.

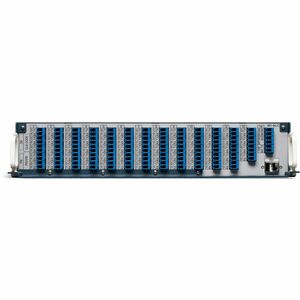

The panel's ports are arranged in 18 columns and 5 rows. The placement of the clips provides optimal fiber routing, facilitating the addition of fibers in an incremental manner and resulting in a simple design that is easy to maintain and troubleshoot. A separate tie wrap is provided for fastening the USB cable used for passive inventory management and storage of insertion loss values. The panel shall fit into ETSI 300-mm and ANSI 450-mm racks.
- Optimized for network architectures with 400ZR and openZR+ DCOs
- Can be used in multiple use cases:
- Standalone with any third-party line systems
- With NCS1001 line system for metro P2P applications
- With NCS2000 line system for ROADM use cases
- Ease of operation with 400ZR or openZR+ optics on the router and NCS1001 as line system
- Suitable for 63-Gbd coherent DWDM channels from Cisco or any alien transponder
- Best-in-class operational efficiency with zero electrical power requirements
- Fiber management plate with integrated clips for secure but easy fiber access
- Low optical insertion loss for improved distance and performance
- USB port for passive inventory
9999 in stock
Shipping calculated at checkout
The Cisco®NCS 1000 Mux/Demux 64-Channel Patch Panel is a standalone passive unit that contains both a 64-channel optical multiplexer and a 64-channel optical demultiplexer, precabled within the unit's housing.
This unit provides support for 400ZR and NCS1004 multihaul coherent channels up to 63 Gbaud at 75-GHz spacing. This filter is designed with optimum tradeoff between bandwidth and isolation for a network designed with 64 channels of 400ZR.
The panel's ports are arranged in 18 columns and 5 rows. The placement of the clips provides optimal fiber routing, facilitating the addition of fibers in an incremental manner and resulting in a simple design that is easy to maintain and troubleshoot. A separate tie wrap is provided for fastening the USB cable used for passive inventory management and storage of insertion loss values. The panel shall fit into ETSI 300-mm and ANSI 450-mm racks.
- Optimized for network architectures with 400ZR and openZR+ DCOs
- Can be used in multiple use cases:
- Standalone with any third-party line systems
- With NCS1001 line system for metro P2P applications
- With NCS2000 line system for ROADM use cases
- Ease of operation with 400ZR or openZR+ optics on the router and NCS1001 as line system
- Suitable for 63-Gbd coherent DWDM channels from Cisco or any alien transponder
- Best-in-class operational efficiency with zero electrical power requirements
- Fiber management plate with integrated clips for secure but easy fiber access
- Low optical insertion loss for improved distance and performance
- USB port for passive inventory
