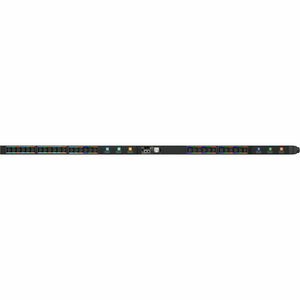

Vertiv Geist Universal Rack PDU with Next-Generation IMD| 32A-63A| 22kW Power Capacity| 208V-415V| (30) Combination C13/C19 outlets | VP4UV0A2
SKU: VP4UV0A2
The Vertiv Geist VP4UV0A2 is a versatile rack power distribution unit with a universal input that supports common AC power configurations. It has (30) Combination C13/C19 outlets providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the rPDU procurement process since users can use a single model to work with different power sources. It is integrated with the Vertiv Geist Next Generation Interchangeable Monitoring Device (IMD). It has a 128x128 high-contrast LCD that displays the power usage. It features enhanced security with a secure boot that helps protect data and operations. It also has a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. The units are Dual Listed (UL/CE), TAA-Compliant, and individually tested for functionality and reliability.
- The VP4UV0A2 UPDU supports 32A-63A and 208V-415V of power in both 1Phase and 3Phase configurations
- The U-Lock outlets help lessen the risk of downtime caused by accidental cord disconnection

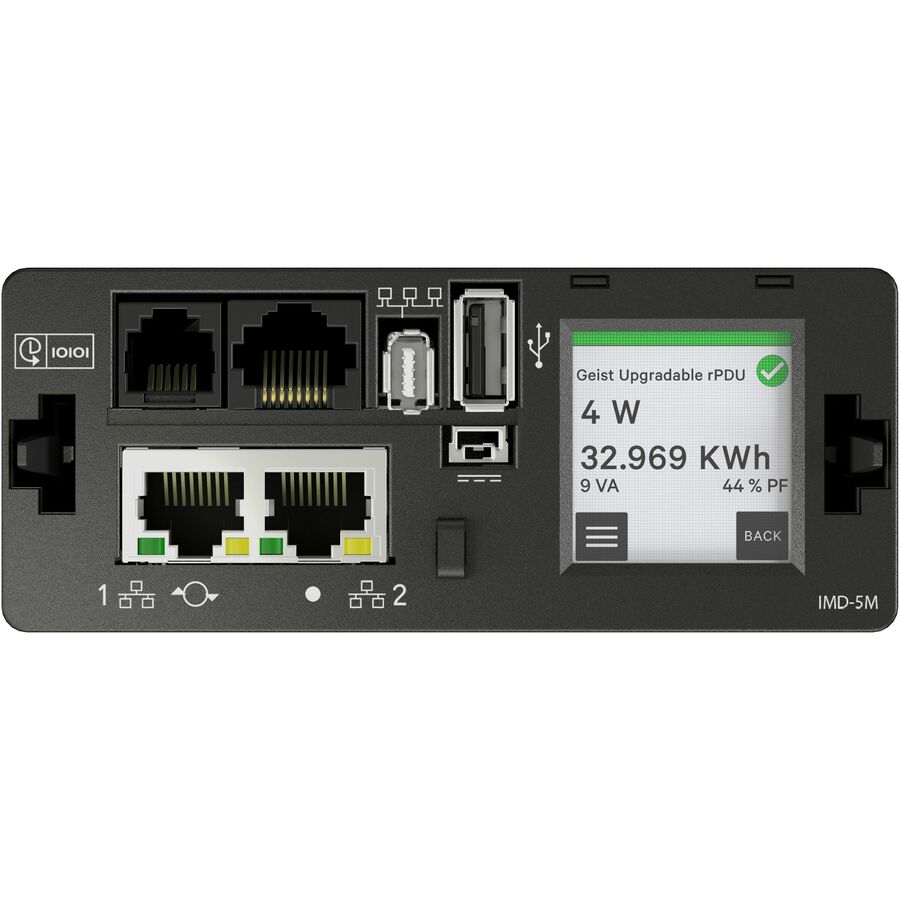

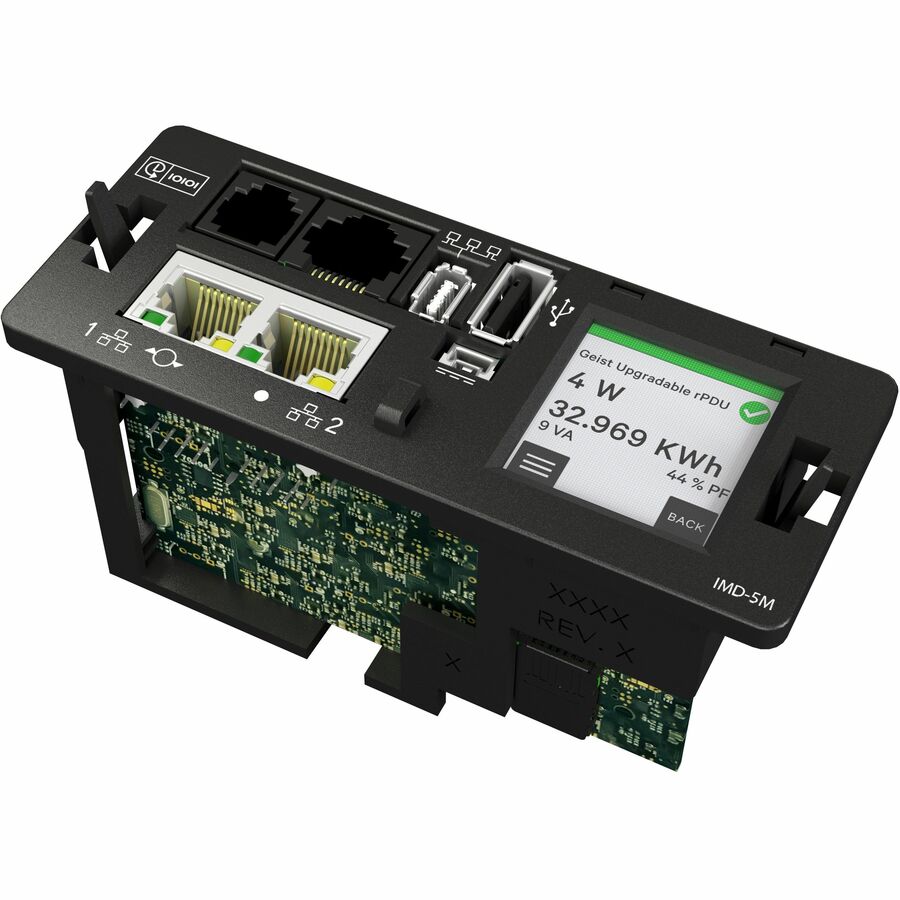

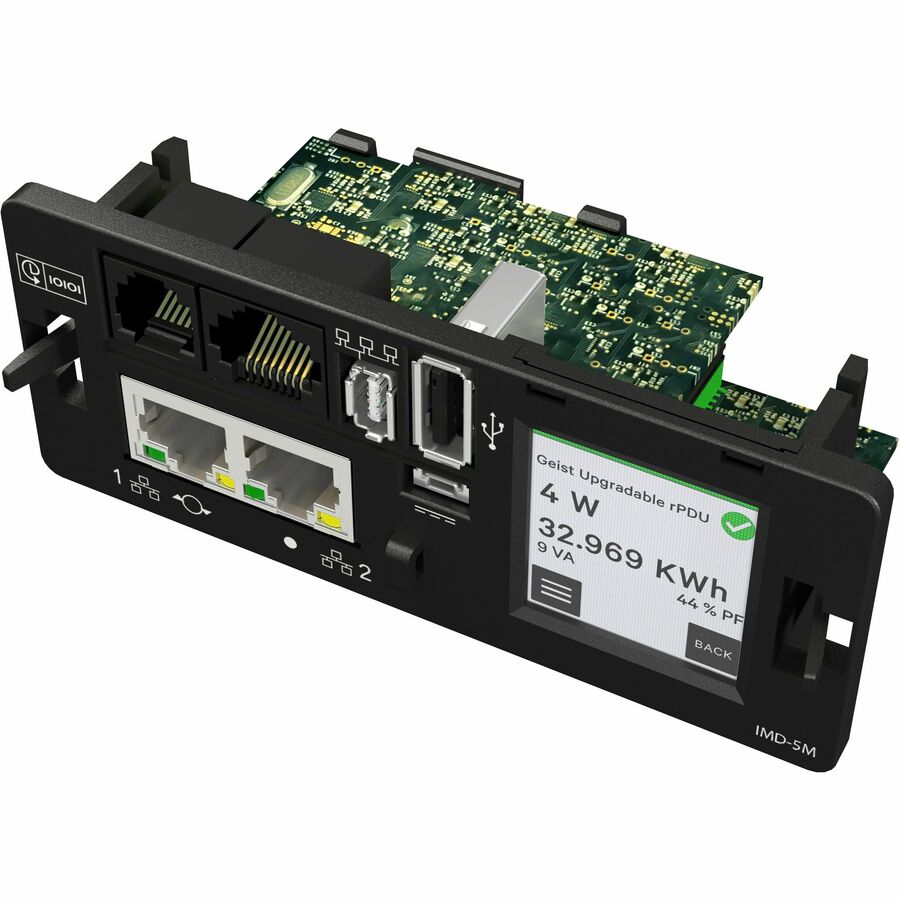

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, Dual Listed (UL/CE), TAA-Compliant, and RoHS certified
Call for Availability
Regular price
$2,214.39
Sale price
$2,399
On Sale
Shipping calculated at checkout
The Vertiv Geist VP4UV0A2 is a versatile rack power distribution unit with a universal input that supports common AC power configurations. It has (30) Combination C13/C19 outlets providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the rPDU procurement process since users can use a single model to work with different power sources. It is integrated with the Vertiv Geist Next Generation Interchangeable Monitoring Device (IMD). It has a 128x128 high-contrast LCD that displays the power usage. It features enhanced security with a secure boot that helps protect data and operations. It also has a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. The units are Dual Listed (UL/CE), TAA-Compliant, and individually tested for functionality and reliability.
- The VP4UV0A2 UPDU supports 32A-63A and 208V-415V of power in both 1Phase and 3Phase configurations
- The U-Lock outlets help lessen the risk of downtime caused by accidental cord disconnection
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, Dual Listed (UL/CE), TAA-Compliant, and RoHS certified
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Color Family:
Black
Country of Origin:
United States
Energy Star:
No
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Features:
Touch Screen Display
Input Current:
63 A
Input Voltage:
230 V AC,415 V AC
Length:
66.3"
Limited Warranty:
5 Year
Locking Receptacles:
Ulock
Management:
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
PDU Type:
Monitored
Phase:
Single Phase/Three Phase
Plug/Connector Type:
Universal Input
Power Rating (Watt):
22 kW
Product Color:
Black
Product Line:
Geist Upgradeable
Product Model:
DU03E4B1-30CF17-2S02A9K00-S-A
Product Type:
PDU
Protection Type:
Overcurrent Protection
Rack Height:
0U
Receptacle Detail:
30 x Combination C13/C19
Receptacle Type:
Combination C13/C19
Remote Outlet Switching:
No
TAA Compliant:
Yes
