Vertiv Geist Switched Rack PDU with Next Generation IMD - 1U| 30A| 120V| (12) NEMA 5-20R Receptacles| L5-30P Plug| 2.8kW Power Capacity| VP5N31A0
SKU: VP5N31A0
The Vertiv Geist Switched RPDU VP5N31A0 is a 30A, 120V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (12) NEMA 5-20R receptacles and a NEMA L5-30P plug providing 2.8kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N31A0 is a 30A, 120V, rack mount PDU with (12) NEMA 5-20R receptacles and a NEMA L5-30P plug

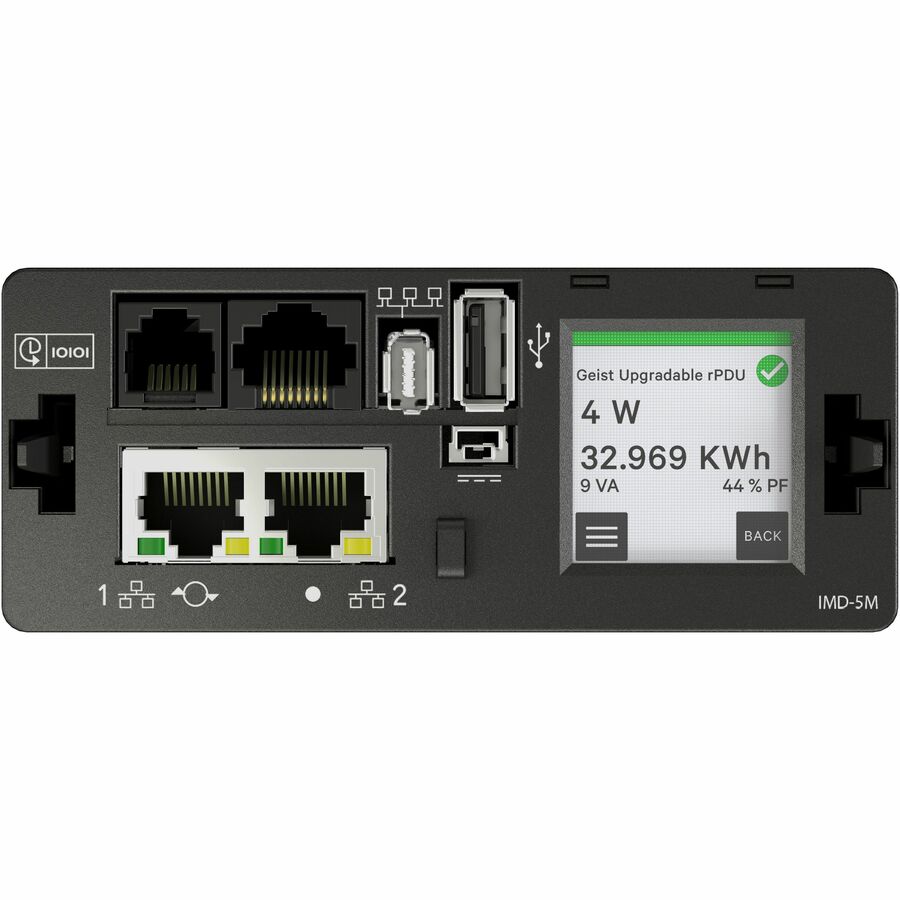

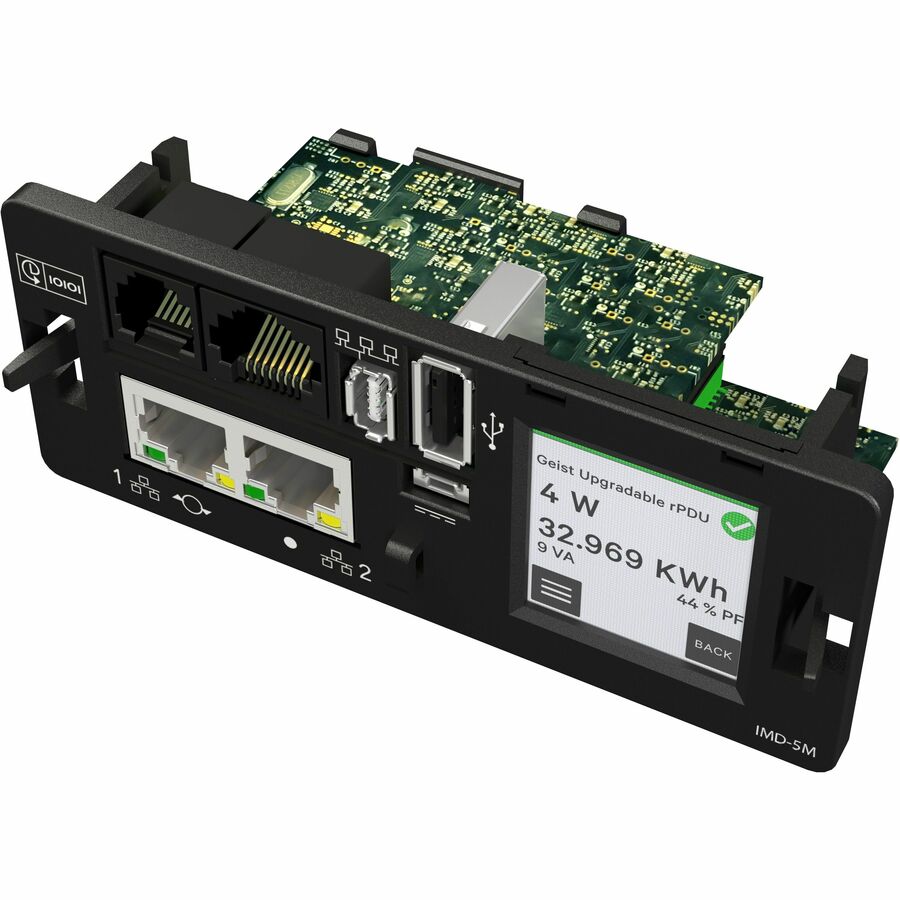

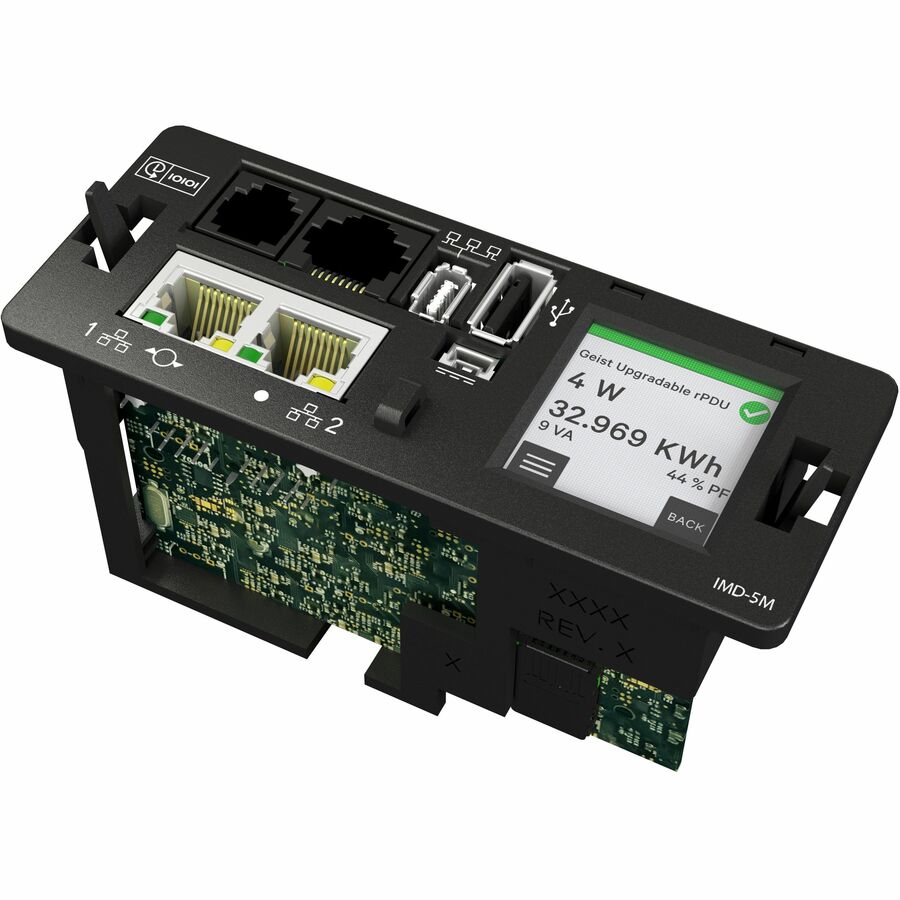

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
18 in stock
Regular price
$1,785.17
Sale price
$1,934
On Sale
Shipping calculated at checkout
The Vertiv Geist Switched RPDU VP5N31A0 is a 30A, 120V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (12) NEMA 5-20R receptacles and a NEMA L5-30P plug providing 2.8kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N31A0 is a 30A, 120V, rack mount PDU with (12) NEMA 5-20R receptacles and a NEMA L5-30P plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Cord Length:
10 ft
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
LCD Display,Touch Screen Display
Form Factor:
Rack
Input Current:
30 A
Input Voltage:
120 V AC
Input Voltage Range:
100 V AC - 120 V AC
Limited Warranty:
5 Year
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Number of Protected Output Receptacles:
12
Output Voltage Range:
100 V AC - 120 V AC
PDU Type:
Switched
Phase:
Single Phase
Plug/Connector Detail:
1 x NEMA L5-30P
Plug/Connector Type:
NEMA L5-30P
Power Rating (Watt):
2800 W
Product Color:
Black
Product Line:
Geist Upgradeable
Product Model:
MNS3E1R6-12S203-3TL5A0H10-S
Product Series:
N
Product Type:
PDU
Protection Type:
Overcurrent Protection
Rack Height:
1U
Receptacle Detail:
12 x NEMA 5-20R
Receptacle Type:
NEMA 5-20R
Remote Outlet Switching:
Yes
TAA Compliant:
Yes
