Vertiv Geist Monitored RPDU with Next-Generation IMD | 30A | 120V | 0U Rack | (24) NEMA 5-20R receptacles | NEMA L5-30P Plug | 2.8kW | VP4N30AP
SKU: VP4N30AP
The Vertiv Geist Monitored Rack PDU VP4N30AP is a 30A, 120V, 0U, vertical rack power distribution unit with input power monitoring and breaker-level current monitoring. It has (24) NEMA 5-20R receptacles and an L5-30P plug providing 2.8kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

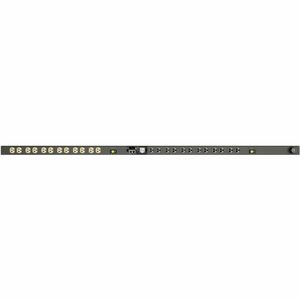

- VP4N30AP is a vertical rack mount PDU with (24) NEMA 5-20R receptacles and an L5-30P plug

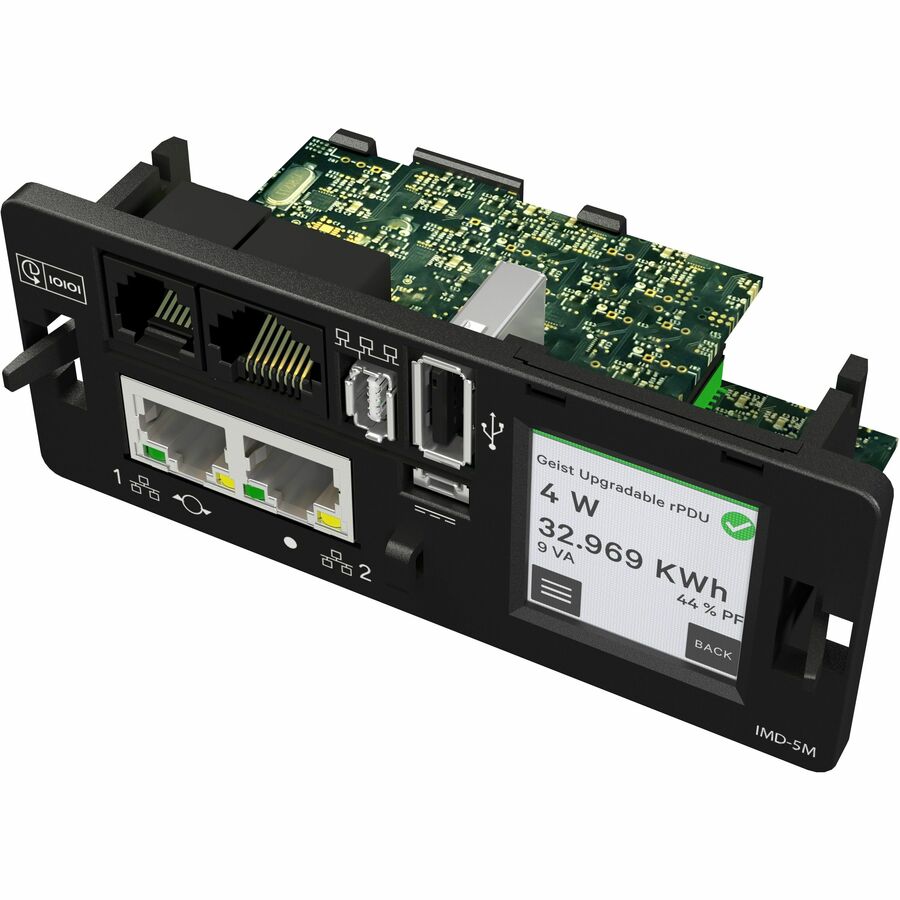

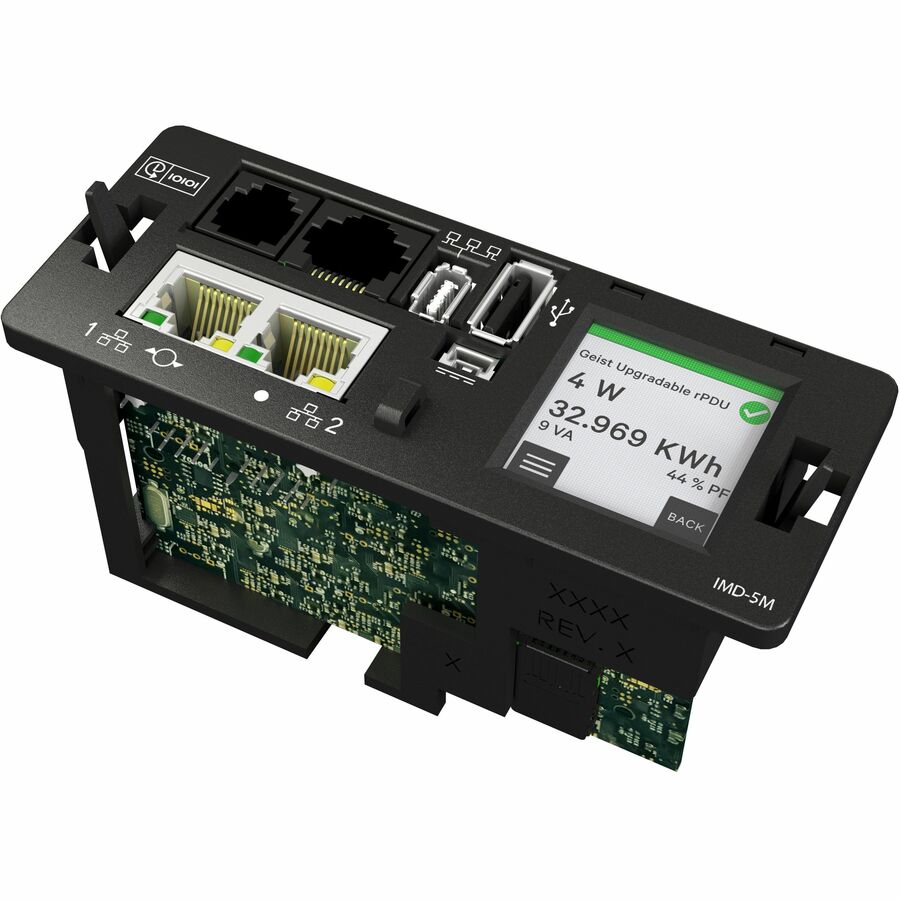

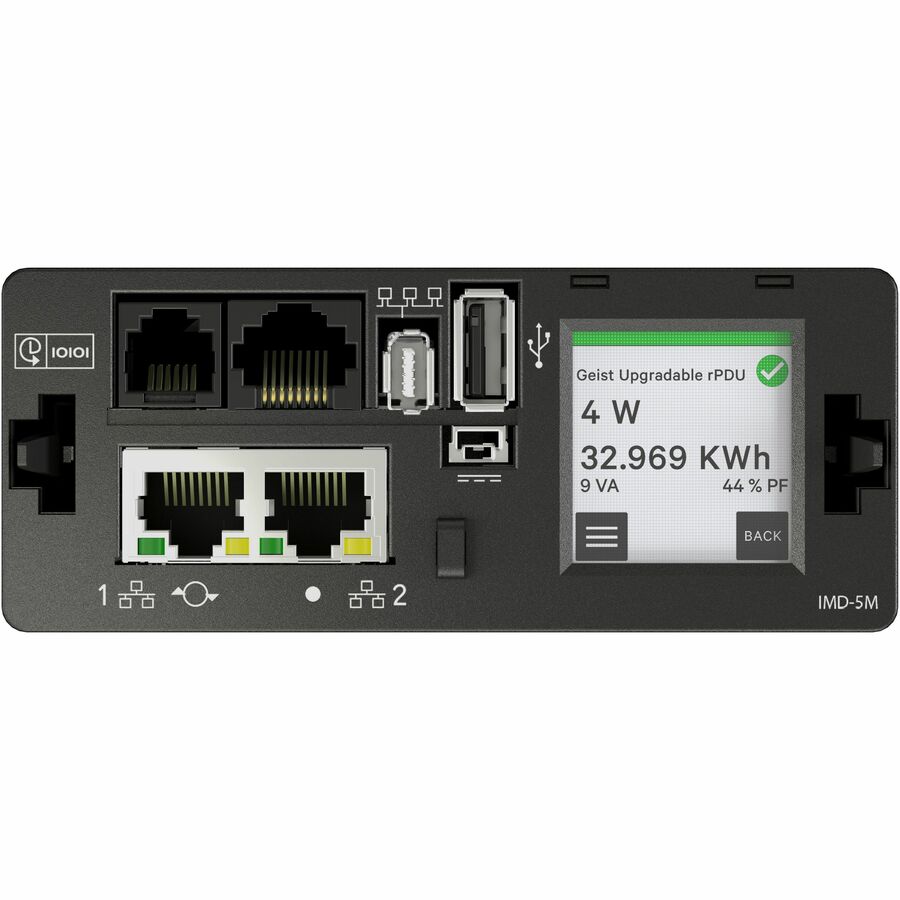

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
5 in stock
Regular price
$1,188.88
Sale price
$1,288
On Sale
Shipping calculated at checkout
The Vertiv Geist Monitored Rack PDU VP4N30AP is a 30A, 120V, 0U, vertical rack power distribution unit with input power monitoring and breaker-level current monitoring. It has (24) NEMA 5-20R receptacles and an L5-30P plug providing 2.8kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP4N30AP is a vertical rack mount PDU with (24) NEMA 5-20R receptacles and an L5-30P plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Cord Length:
10 ft
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Features:
LCD Display,Touch Screen Display
Form Factor:
Rack
Input Current:
30 A
Input Voltage:
120 V AC
Input Voltage Range:
100 V AC - 120 V AC
Length:
2"
Limited Warranty:
5 Year
Management:
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage Range:
100 V AC - 120 V AC
PDU Type:
Monitored
Plug/Connector Detail:
1 x NEMA L5-30P
Plug/Connector Type:
NEMA L5-30P
Power Rating (Watt):
2800 W
Product Line:
Geist Upgradeable
Product Series:
N
Product Type:
PDU
Rack Height:
0U
Receptacle Detail:
24 x NEMA 5-20R
Receptacle Type:
NEMA 5-20R
Remote Outlet Switching:
No
TAA Compliant:
Yes
