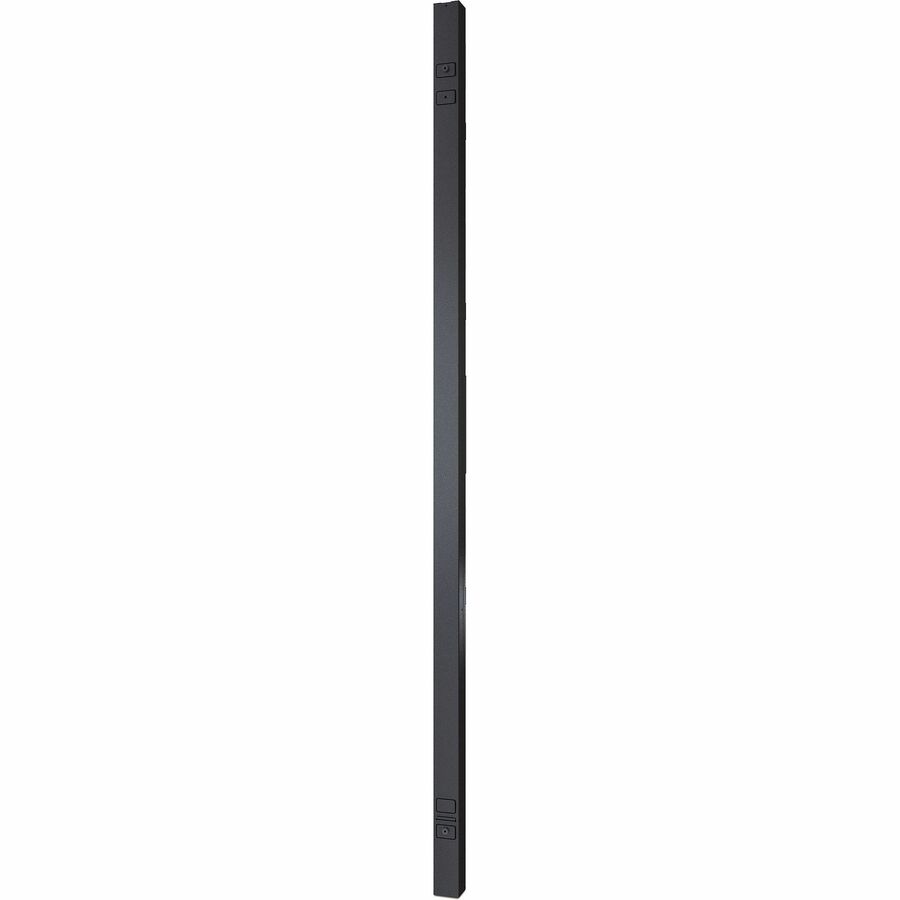

Rack PDU 2G, Metered-by-Outlet, ZeroU, 20A, 208V, (21) C13 & (3) C19

SKU: AP8459NA3

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

  • Ideal for high density server and networking applications
  • Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
  • Extensive list of compatible products and accessories
  • Stay on top by defining alarm thresholds in order to avoid overloaded circuits
  • Zero U toolless installation

Only 1 in stock

Regular price $2,463.97 Sale price $2,745
On Sale

Shipping calculated at checkout

Details

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

  • Ideal for high density server and networking applications
  • Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
  • Extensive list of compatible products and accessories
  • Stay on top by defining alarm thresholds in order to avoid overloaded circuits
  • Zero U toolless installation
Specifications
Additional Warranty Information:
2 years repair or replace
Color Family:
Black
Cord Length:
9.84 ft
Country of Origin:
India
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Input Current:
20 A
Input Voltage:
200 V,208 V,230 V
Input Voltage Range:
120 V AC - 230 V AC
Limited Warranty:
2 Year
Management:
  • Web
  • SNMP
  • Telnet
Manufacturer:
Schneider Electric SA
Manufacturer Website Address:
http://www.schneider-electric.com
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Output Voltage:
208 V AC
Package Contents:
  • Metered-by-Outlet Rack PDU
  • CAN port terminator
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • PDU Type:
    Metered-by-Outlet
    Placement:
    Side
    Plug/Connector Type:
    NEMA L6-20P
    Product Color:
    Black
    Product Type:
    PDU
    Rack Height:
    0U
    Receptacle Detail:
    21 x IEC 60320 C13,3 x IEC 60320 C19
    Receptacle Type:
    IEC 60320 C13,IEC 60320 C19
