Eaton Tripp Lite Series 7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
SKU: PDUMNH32HV
PDUMNH32HV Monitored 32A 2U horizontal rackmount PDU supports 7.4kW maximum capacity at 230V. Includes attached Blue 230V IEC-309 32A (2P+E) input plug and 16 230V outlets (12 C13, 4 C19) arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each 8 outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
- Temperature, humidity and contact-closure monitoring options

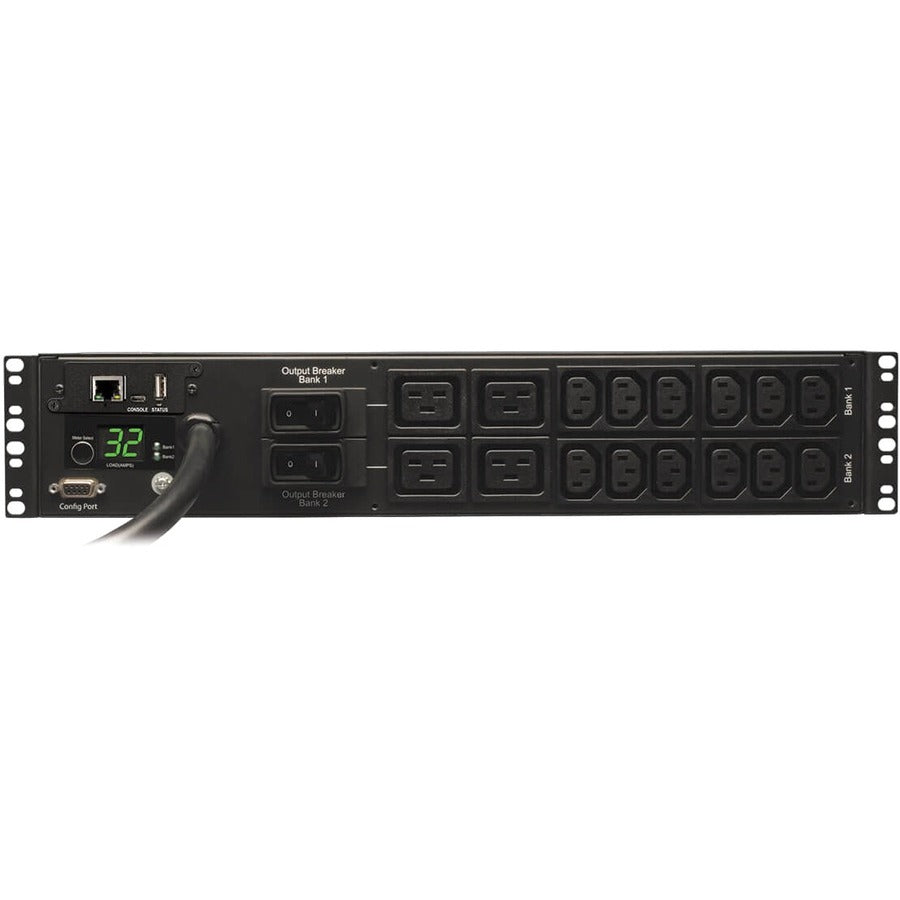

- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Visual current meter, Reversible housing

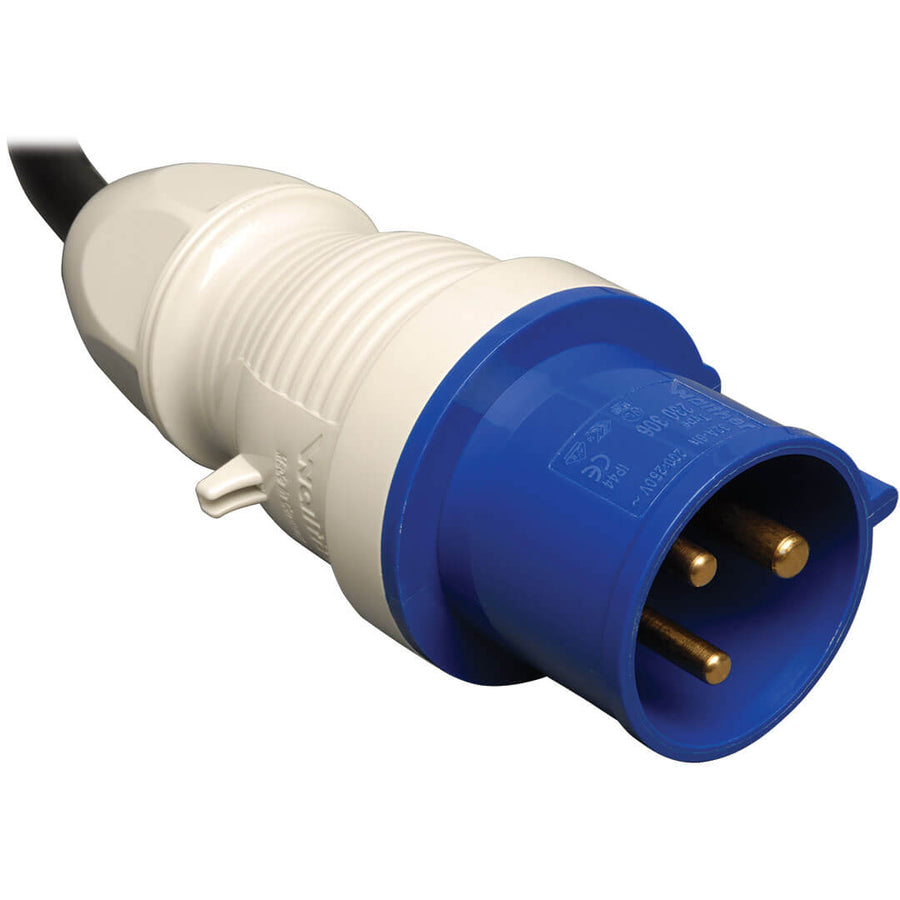

- Blue 230V IEC-309 32A (2P+E) input plug
- Reports voltage, frequency & load level via ethernet interface
- Monitored 32A 230V PDU, 2U horizontal rackmount
Call for Availability
Regular price
$927.85
Sale price
$1,150
On Sale
Shipping calculated at checkout
PDUMNH32HV Monitored 32A 2U horizontal rackmount PDU supports 7.4kW maximum capacity at 230V. Includes attached Blue 230V IEC-309 32A (2P+E) input plug and 16 230V outlets (12 C13, 4 C19) arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each 8 outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
- Temperature, humidity and contact-closure monitoring options
- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Visual current meter, Reversible housing
- Blue 230V IEC-309 32A (2P+E) input plug
- Reports voltage, frequency & load level via ethernet interface
- Monitored 32A 230V PDU, 2U horizontal rackmount
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Input Voltage:
230 V AC
Limited Warranty:
2 Year
Management:
Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- FTP
- DHCP
- BOOTP
- NTP
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Output Voltage:
230 V AC

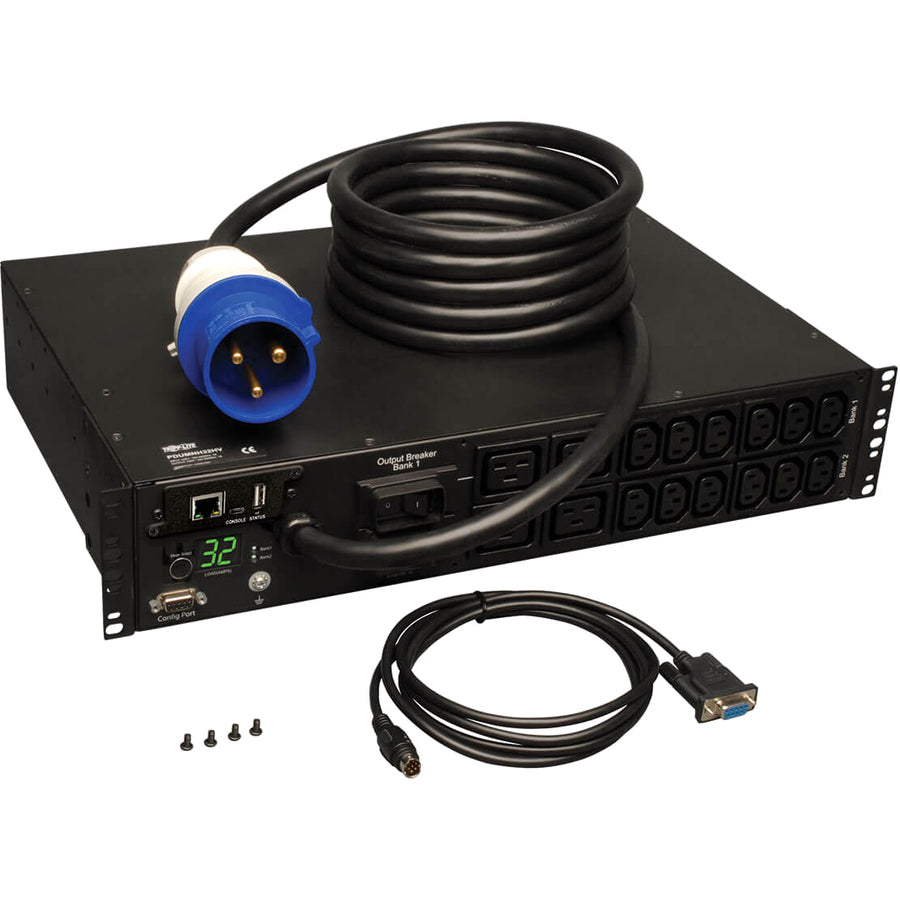

Package Contents:
- Metered PDUMNH32HV 16-Outlets 7.4kW PDU
- Rack Installation Brackets
- Cable Retention Brackets
- SNMPWEBCARD Configuration Cable
- PowerAlert Software Kit
- User Manual
Power Rating (Watt):
7400 W
Product Model:
PDUMNH32HV
Product Series:
Metered
Product Type:
PDU
Protection Type:
Overload Protection
Rack Height:
2U
Receptacle Detail:
4 x IEC 60320 C19,12 x IEC 60320 C13
Receptacle Type:
IEC 60320 C19,IEC 60320 C13
TAA Compliant:
Yes
