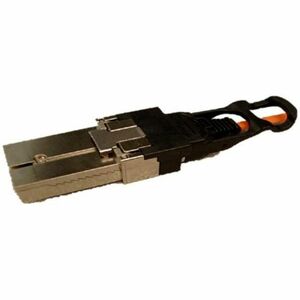

Cisco 100GBASE-SR10 CXP Module for MMF Compliant to 10GBASE-SR
The Cisco® CXP 100GBASE modules offer customers a wide variety of high-density 100Gbps connectivity solutions for short-reach data center networking, high-performance computing networks, enterprise core aggregation, and service provider transport applications.
Features and Benefits
Primary features of Cisco CXP 100GBASE modules include:
- Support for 100 Gigabit Ethernet
- Hot-swappable input/output device that plugs into a Cisco CXP-module-based switch, router, or optical platform port
- Flexibility of interface choice
- Support for a "pay-as-you-grow" model
- Support for digital optical monitoring (DOM)
- CXP-100G-SR10 and CXP-100G-SR12 are both interoperable with any IEEE-compliant 100GBASE-SR10 form factors
- Support for the Cisco quality identification (ID) feature, which enables a Cisco platform to identify whether the module is certified and tested by Cisco
- Easy-to-use pull-release handle that is color coded for reach identification
- Capable of supporting 120Gb/s by utilizing all 12 optical lanes for high-density interconnect applications
- CXP-100G-SR10 supports breakout applications; each lane complies with 10GBASE-SR requirements and OTN rates up to 11.25Gb/s
- CXP-100G-SR10 and CXP-100G-SR12 both support breakout applications for 40GBASE-SR4
- Operating distance of maximum 100 meters over OM3 fibers or maximum 150 meters over OM4 fibers
- Power consumption of maximum 3.5W
- Operating case temperature of 0�C to 70�C
- MPO-24 optical receptacle
- CXP offers enhanced dependability with maximum productivity
- With 100GBase-SR10 technology, get up to 100Gbps data transfer rate over optical fiber cable
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
- CXP with optical network application/usage for reliability and maximum efficiency
Call for Availability
Shipping calculated at checkout
The Cisco® CXP 100GBASE modules offer customers a wide variety of high-density 100Gbps connectivity solutions for short-reach data center networking, high-performance computing networks, enterprise core aggregation, and service provider transport applications.
Features and Benefits
Primary features of Cisco CXP 100GBASE modules include:
- Support for 100 Gigabit Ethernet
- Hot-swappable input/output device that plugs into a Cisco CXP-module-based switch, router, or optical platform port
- Flexibility of interface choice
- Support for a "pay-as-you-grow" model
- Support for digital optical monitoring (DOM)
- CXP-100G-SR10 and CXP-100G-SR12 are both interoperable with any IEEE-compliant 100GBASE-SR10 form factors
- Support for the Cisco quality identification (ID) feature, which enables a Cisco platform to identify whether the module is certified and tested by Cisco
- Easy-to-use pull-release handle that is color coded for reach identification
- Capable of supporting 120Gb/s by utilizing all 12 optical lanes for high-density interconnect applications
- CXP-100G-SR10 supports breakout applications; each lane complies with 10GBASE-SR requirements and OTN rates up to 11.25Gb/s
- CXP-100G-SR10 and CXP-100G-SR12 both support breakout applications for 40GBASE-SR4
- Operating distance of maximum 100 meters over OM3 fibers or maximum 150 meters over OM4 fibers
- Power consumption of maximum 3.5W
- Operating case temperature of 0�C to 70�C
- MPO-24 optical receptacle
- CXP offers enhanced dependability with maximum productivity
- With 100GBase-SR10 technology, get up to 100Gbps data transfer rate over optical fiber cable
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
- CXP with optical network application/usage for reliability and maximum efficiency
