Kingston ValueRAM RAM Module

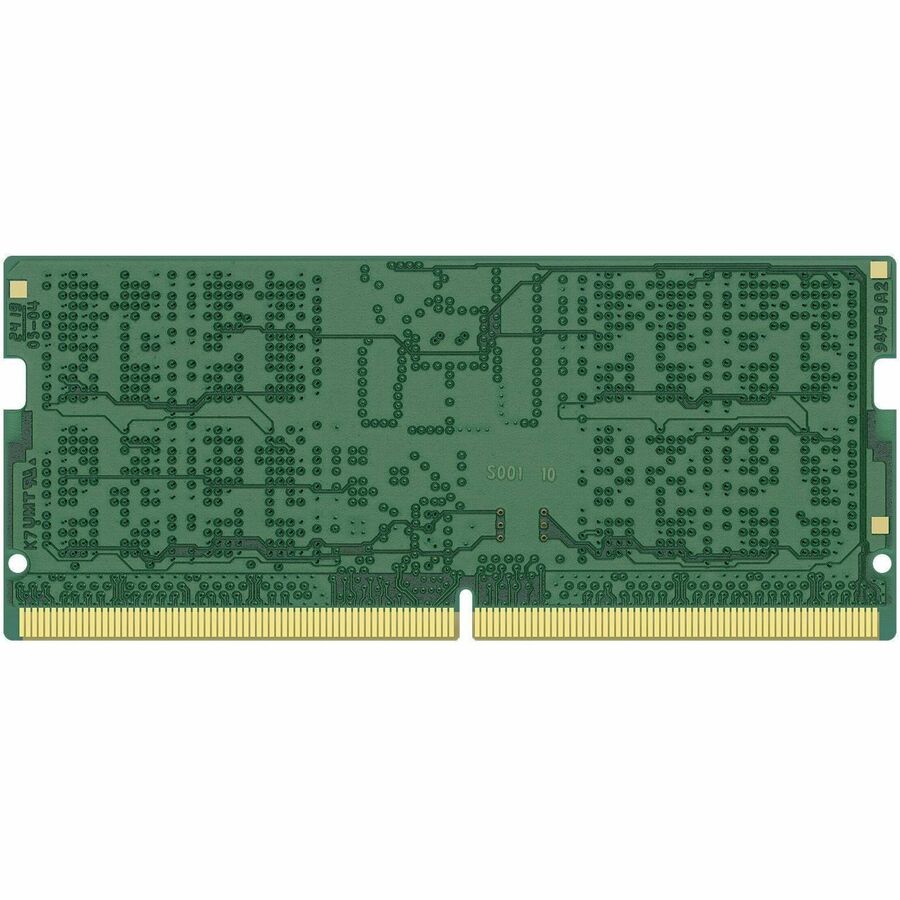

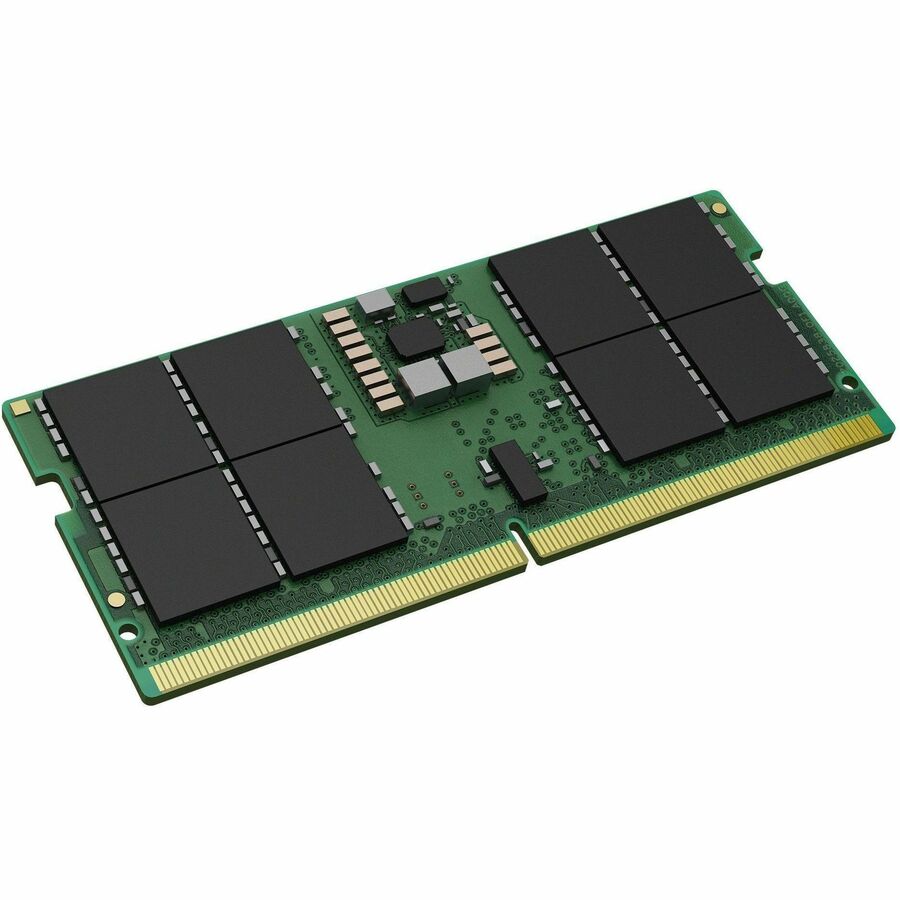

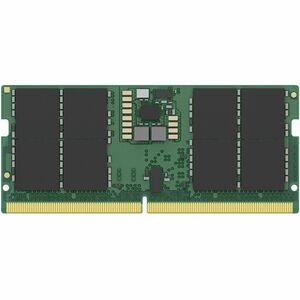

This document describes ValueRAM's KVR64V52BS8-32 is a 4G x 64-bit (32GB) DDR5-6400 CL52 Clocked Small Outline DIMMs (CSODIMMs), 1Rx8, memory module, based on eight 4G x 8-bit FBGA components and one Clock Driver (CKD). The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 262-pin CSODIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18" (30.00mm)
- RoHS Compliant and Halogen-Free
- With Clock Driver
Call for Availability
Shipping calculated at checkout
This document describes ValueRAM's KVR64V52BS8-32 is a 4G x 64-bit (32GB) DDR5-6400 CL52 Clocked Small Outline DIMMs (CSODIMMs), 1Rx8, memory module, based on eight 4G x 8-bit FBGA components and one Clock Driver (CKD). The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 262-pin CSODIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18" (30.00mm)
- RoHS Compliant and Halogen-Free
- With Clock Driver
