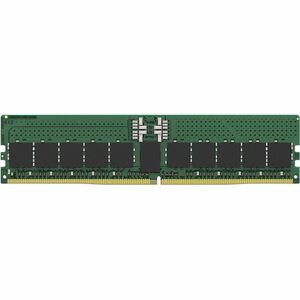

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM
SKU: KSM56R46BS4PMI-48HMI
Kingston's KSM56R46BS4PMI-48HMI is a 6G x 80-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 5600 MHz speed with registered signal for playing the latest games and using heavy software
- DIMM 48 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- 288-pin for optimal performance and maximum reliability
- CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- DIMM form factor with 288-pin and 48 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
- Registered signal processing provides increased processing power to allow maximum productivity
Call for Availability
Regular price
$451.87
Sale price
$555
On Sale
Shipping calculated at checkout
Kingston's KSM56R46BS4PMI-48HMI is a 6G x 80-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 5600 MHz speed with registered signal for playing the latest games and using heavy software
- DIMM 48 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- 288-pin for optimal performance and maximum reliability
- CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- DIMM form factor with 288-pin and 48 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
- Registered signal processing provides increased processing power to allow maximum productivity
CAS Latency:
CL46
Compatibility:
- ASRock - Server Board SPC741D16QM3-2L2Q
- ASRock - Server Board SPC741D8-2L2T/BCM
- ASRock - Server Board SPC741D8HM3
- ASRock - Server Board SPC741D8QM3-2T
- ASRock - Server Board SPC741D8QM3-2T/X550
- ASRock - Server Board SPC741D8UD-2T/X550
- Gigabyte - MS33-AR0 Motherboard
- Gigabyte - MS33-AR1 Motherboard
- Supermicro - B13DEE Motherboard
- Supermicro - B13DET Motherboard
- Supermicro - B13SEE-CPU-25G Motherboard
- Supermicro - B13SEG Motherboard
- Supermicro - Blade SBI-421E-1T3N (B13DET)
- Supermicro - Blade SBI-421E-5T3N (B13DET)
- Supermicro - Blade SBI-611E-1C2N (B13SEE-CPU-25G)
- Supermicro - Blade SBI-611E-1T2N (B13SEE-CPU-25G)
- Supermicro - Blade SBI-611E-5T2N (B13SEE-CPU-25G)
- Supermicro - Blade SBI-621E-1C3N (B13DEE)
- Supermicro - Blade SBI-621E-1T3N (B13DEE)
- Supermicro - Blade SBI-621E-5T3N (B13DEE)
- Supermicro - CloudDC SuperServer SYS-121C-TN10R (Super X13DDW-A)
- Supermicro - CloudDC SuperServer SYS-121C-TN2R (Super X13DDW-A)
- Supermicro - CloudDC SuperServer SYS-611C-TN4R (Super X13DDW-A)
- Supermicro - CloudDC SuperServer SYS-621C-TN12R (Super X13DDW-A)
- Supermicro - GPU SuperServer SYS-221GE-NR (Super X13DEH)
- Supermicro - GPU SuperServer SYS-421GE-TNRT (Super X13DEG-OA)
- Supermicro - GPU SuperServer SYS-421GE-TNRT3 (Super X13DEG-OA)
- Supermicro - GPU SuperServer SYS-421GU-TNXR (Super X13DGU)
- Supermicro - GPU SuperServer SYS-521GE-TNRT (Super X13DEG-OA)
- Supermicro - GPU SuperServer SYS-521GU-TNXR (Super X13DGU)
- Supermicro - GPU SuperServer SYS-741GE-TNRT (Super X13DEG-QT)
- Supermicro - GPU SuperServer SYS-751GE-TNRT (Super X13DEG-QT)
- Supermicro - GPU SuperServer SYS-751GE-TNRT-NV1 (Super X13DEG-QT)
- Supermicro - GPU SuperServer SYS-821GE-TNHR (Super X13DEG-OAD)
- Supermicro - GPU SuperServer SYS-821GV-TNR (Super X13DEG-PVC)
- Supermicro - Hyper SuperServer SYS-121H-TNR (Super X13DEM)
- Supermicro - Hyper SuperServer SYS-221H-TN24R (Super X13DEM)
- Supermicro - Hyper SuperServer SYS-221H-TNR (Super X13DEM)
- Supermicro - Hyper SuperServer SYS-621H-TN12R (Super X13DEM)
- Supermicro - Iot SuperServer SYS-111E-FWTR (Super X13SEW-TF)
- Supermicro - IoT SuperServer SYS-211E-FRDN13P (Super X13SEVR-SP13F)
- Supermicro - IoT SuperServer SYS-211E-FRDN2T (Super X13SEM-TF)
- Supermicro - IoT SuperServer SYS-211E-FRN2T (Super X13SEM-TF)
- Supermicro - IoT SuperServer SYS-221HE-FTNR (Super X13DEM)
- Supermicro - IoT SuperServer SYS-221HE-FTNRD (Super X13DEM)
- Supermicro - IoT SuperServer SYS-221HE-TNR (Super X13DEM)
- Supermicro - Mainstream SuperServer SYS-221P-C9R (Super X13DEI)
- Supermicro - Mainstream SuperServer SYS-221P-C9RT (Super X13DEI-T)
- Supermicro - Mainstream SuperServer SYS-621P-TR (Super X13DEI)
- Supermicro - Mainstream SuperServer SYS-621P-TRT (Super X13DEI-T)
- Supermicro - Mainstream SuperServer SYS-741P-TR (Super X13DEI-T)
- Supermicro - Mainstream SuperServer SYS-741P-TRT (Super X13DEI-T)
- Supermicro - Storage SuperServer SSG-121E-NE316R (Super X13DSF-A)
https://www.kingston.com/en/memory/search/systemdevices?partid=KSM56R46BS4PMI-48HMI
Device Supported:
Server,Motherboard
Environmentally Friendly:
Yes
Environmental Certification:
Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Error Checking:
ECC
Form Factor:
DIMM
Length:
5.3"
Limited Warranty:
Lifetime
Manufacturer:
Kingston Technology Company
Manufacturer Website Address:
http://www.kingston.com
Memory Rank:
Single-rank
Memory Size:
48 GB
Memory Speed:
5600 MHz
Memory Standard:
DDR5-5600/PC5-44800
Memory Technology:
DDR5 SDRAM
Memory Voltage:
1.10 V
Number of Pins:
288-pin
Product Type:
RAM Module
Signal Processing:
Registered
Thickness:
151.6 mil
