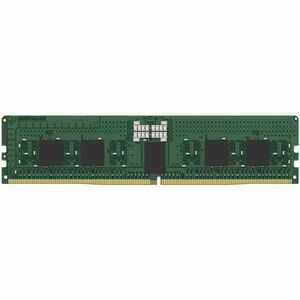

Kingston 32GB DDR5 5600MT/s ECC Registered DIMM
SKU: KSM56R46BS4PMI-32MDI
Kingston's KSM56R46BS4PMI-32MDI is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 5600 MHz speed with CL46 latency for playing the latest games and using heavy software
- 32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- DDR5 SDRAM memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity
- 288-pin for enhanced, dependable system performance with maximum usability
- CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- Server device support for your ram module to allow enhanced performance and reliable memory solution
- DIMM form factor with 288-pin and 32 GB memory size for enhanced performance and speed to allow maximum usability
- Registered signal processing for dependable programmability of the processor for easy optimization of digital signals
Call for Availability
Regular price
$291.76
Sale price
$358
On Sale
Shipping calculated at checkout
Kingston's KSM56R46BS4PMI-32MDI is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 5600 MHz speed with CL46 latency for playing the latest games and using heavy software
- 32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- DDR5 SDRAM memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity
- 288-pin for enhanced, dependable system performance with maximum usability
- CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- Server device support for your ram module to allow enhanced performance and reliable memory solution
- DIMM form factor with 288-pin and 32 GB memory size for enhanced performance and speed to allow maximum usability
- Registered signal processing for dependable programmability of the processor for easy optimization of digital signals
CAS Latency:
CL46
Compatibility:
- ASRock - Server 1U12E-EGS/2L2Q
- ASRock - Server 1U12E-EGS2
- ASRock - Server 1U4L4E-EGS/2T
- ASRock - Server 1U4L-EGS/2T
- ASRock - Server 1U8S4E-EGS/2T
- ASRock - Server 2U24E-EGS2
- ASRock - Server 2U4G8E-EGS2
- ASRock - Server 4U10G-EGS2
- ASRock - Server 4U36L6E-EGS/2T
- ASRock - Server 4U8G-EGS2
- ASRock - Server Board SP2C741D16-2T
- ASRock - Server Board SP2C741D16HM3
- ASRock - Server Board SP2C741D16NQM3-2Q
- ASRock - Server Board SP2C741D16X-2T
- ASRock - Server Board SP2C741D32G-2L+
- ASRock - Server Board SP2C741D32TM3
- ASRock - Server Board SPC741D16QM3-2L2Q
- ASRock - Server Board SPC741D8-2L2T/BCM
- ASRock - Server Board SPC741D8HM3
- ASRock - Server Board SPC741D8QM3-2T
- ASRock - Server Board SPC741D8QM3-2T/X550
- ASRock - Server Board SPC741D8UD-2T/X550
- ASRock - TRX50 WS Motherboard
- ASRock - W790 WS Motherboard
- ASRock - W790D8H-2T/X550 Motherboard
- ASRock - W790D8HM3 Motherboard
- ASRock - W790D8UD-1L1N2T/BCM Motherboard
- ASRock - WRX90 WS EVO Motherboard
- ASUS - EG500-E11-RS2-F Server
- ASUS - EG500-E11-RS2-R Server
- ASUS - EG500-E11-RS4-F Server
- ASUS - EG500-E11-RS4-R Server
- ASUS - ESC N8-E11 Server
- ASUS - ESC4000-E11 Server
- ASUS - ESC8000-E11 Server
- ASUS - ESC8000-E11P Server
- ASUS - Pro WS TRX50-SAGE WIFI Motherboard
- ASUS - Pro WS W790-ACE Motherboard
- ASUS - Pro WS W790E-SAGE SE Motherboard
- ASUS - Pro WS WRX90E-SAGE SE Motherboard
- ASUS - RS700-E11-RS12U Server
- ASUS - RS700-E11-RS4U Server
- ASUS - RS720-E11-RS12U Server
- ASUS - RS720-E11-RS24U Server
- ASUS - RS720Q-E11-IM Server
- ASUS - RS720Q-E11-RS8U Server
- ASUS - RS723Q-E11-RS24 Server
- ASUS - Z13PE-D16 Motherboard
- Gigabyte - E163-S30 Server (MS33-DC0)
- Gigabyte - E263-S30 Server (MS33-DC0)
- Gigabyte - E283-S90 Server (MS93-FS0)
- Gigabyte - G293-S4x Server (MS43-G20)
- Gigabyte - G363-SR0 Server (MS63-HD2)
- Gigabyte - G493-SBx Server (MSB3-G40)
- Gigabyte - MS03-CE0 Motherboard
- Gigabyte - MS33-AR0 Motherboard
- Gigabyte - MS33-AR1 Motherboard
- Gigabyte - MS73-HB0 Motherboard
- Gigabyte - MS73-HB1 Motherboard
- Gigabyte - MS73-HB2 Motherboard
- Gigabyte - TRX50 AERO D Motherboard
- Supermicro - B13DEE Motherboard
- Supermicro - B13DET Motherboard
- Supermicro - B13SEE-CPU-25G Motherboard
- Supermicro - B13SEG Motherboard
- Supermicro - Blade SBI-421E-1T3N (B13DET)
- Supermicro - Blade SBI-421E-5T3N (B13DET)
- Supermicro - Blade SBI-611E-1C2N (B13SEE-CPU-25G)
- Supermicro - Blade SBI-611E-1T2N (B13SEE-CPU-25G)
- Supermicro - Blade SBI-611E-5T2N (B13SEE-CPU-25G)
- Supermicro - Blade SBI-621E-1C3N (B13DEE)
- Supermicro - Blade SBI-621E-1T3N (B13DEE)
- Supermicro - Blade SBI-621E-5T3N (B13DEE)
https://www.kingston.com/en/memory/search/systemdevices?partid=KSM56R46BS4PMI-32MDI
Device Supported:
Server,Motherboard
Environmentally Friendly:
Yes
Environmental Certification:
Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Error Checking:
ECC
Form Factor:
DIMM
Length:
5.3"
Limited Warranty:
Lifetime
Manufacturer:
Kingston Technology Company
Manufacturer Website Address:
http://www.kingston.com
Memory Rank:
Single-rank
Memory Size:
32 GB
Memory Speed:
5600 MHz
Memory Standard:
DDR5-5600/PC5-44800
Memory Technology:
DDR5 SDRAM
Memory Voltage:
1.10 V
Number of Pins:
288-pin
Product Type:
RAM Module
Signal Processing:
Registered
Thickness:
151.6 mil
