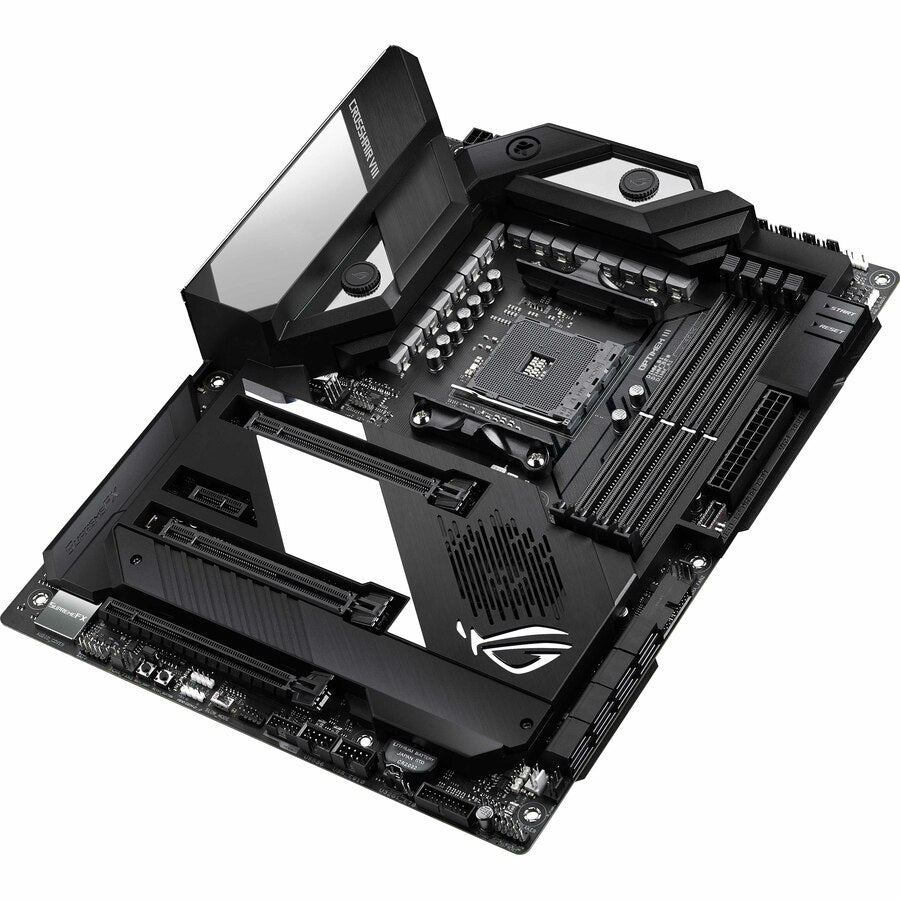

Asus ROG Crosshair VIII Formula Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX

AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, on-board Wi-Fi 6 (802.11ax), 5 Gbps LAN, USB 3.2, SATA, M.2, ASUS NODE and Aura Sync RGB lighting

• AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
• Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
• Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
• High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
• 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.

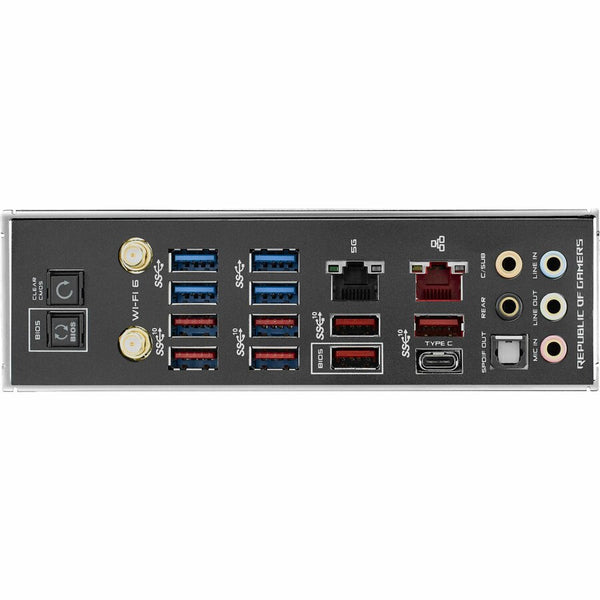

• DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
• Industry-leading ROG audio: SupremeFX S1220 and ESS® ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.

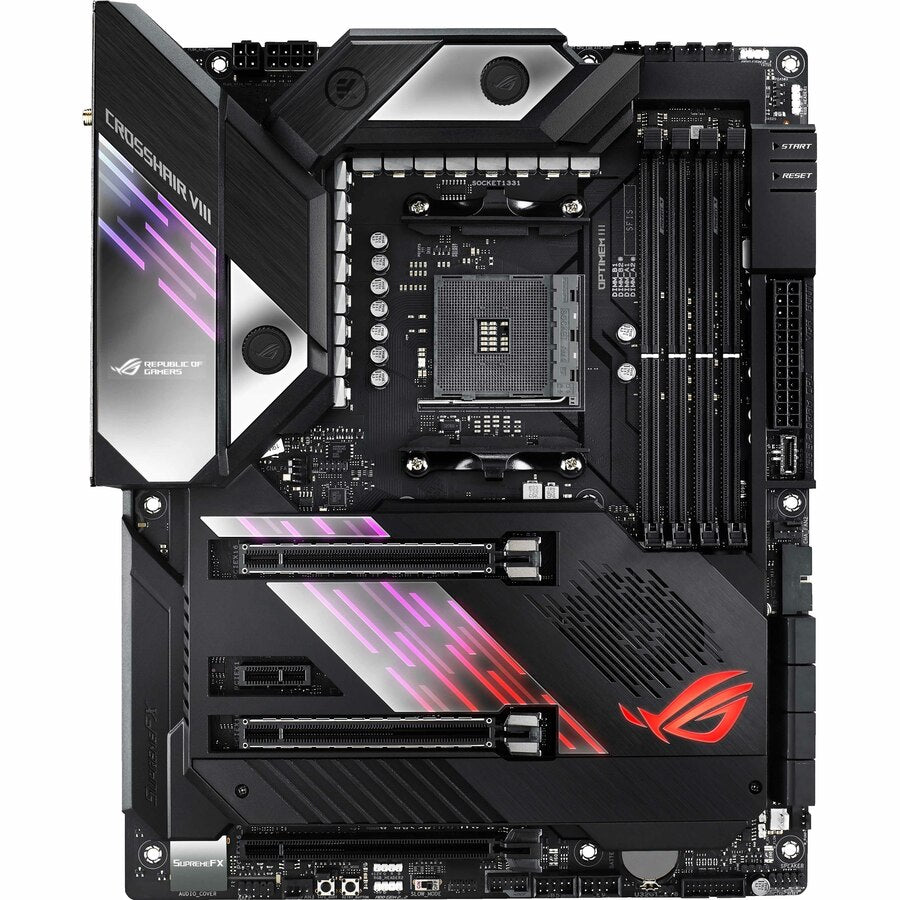

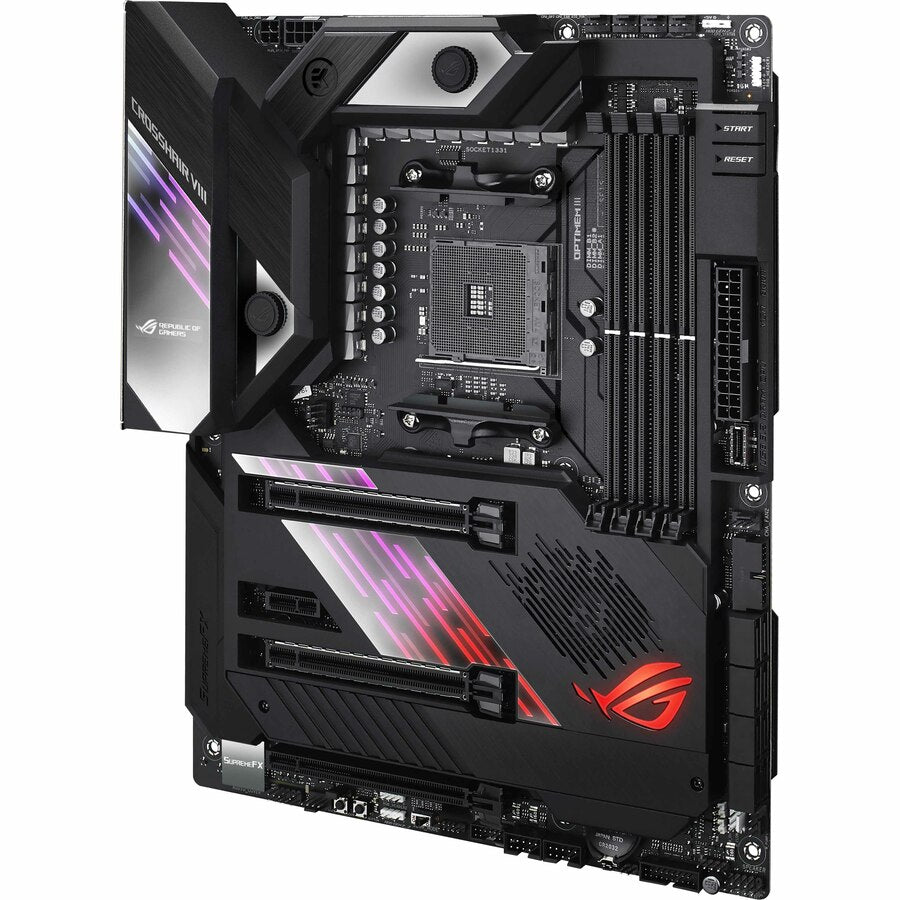

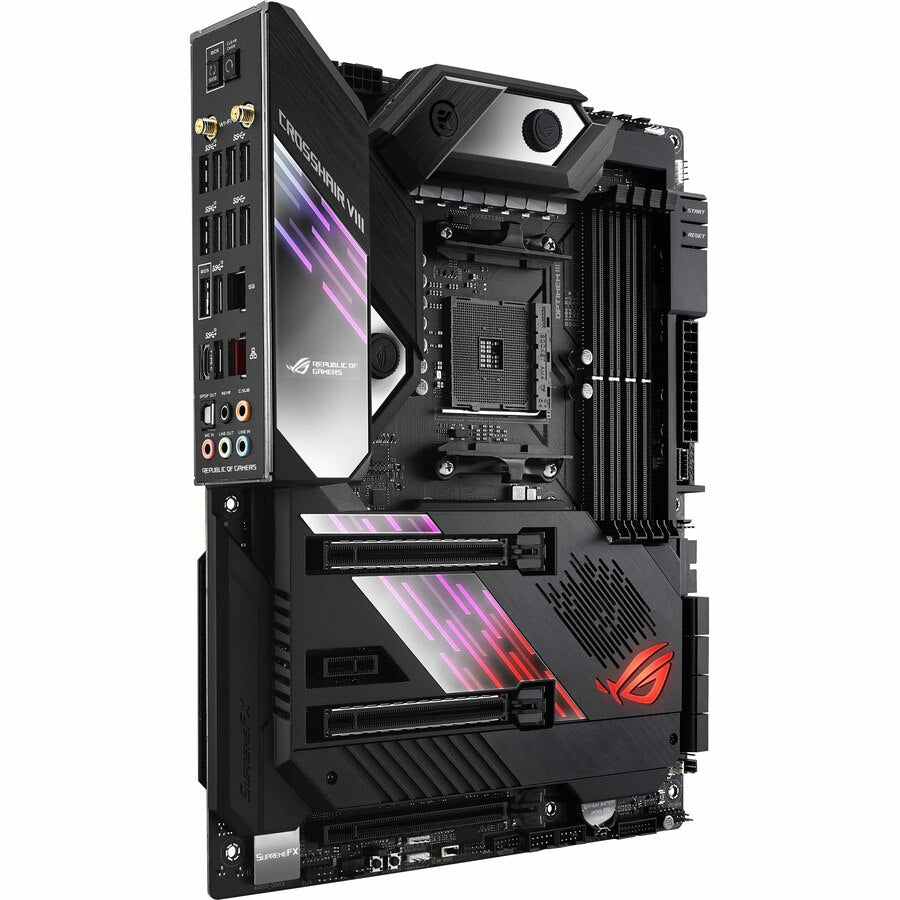

The Crosshair VIII Formula

ROG has partnered with EK Water Blocks to create an integrated VRM water-cooling solution that keeps the massive power of the latest AMD Ryzen processors under control. Keeping with the water-cooling theme, the ROG Crosshair VIII Formula features on-board lighting that casts a "rainfall" design which pops against the board's mirror finish and is accented by the ROG logo. With its incredible cooling performance and gamer-oriented features, ROG Crosshair VIII Formula is the perfect foundation for your next high-performance gaming rig.

COOLING

CHILLING DESIGN

Effective cooling is extremely important, so the ROG Crosshair VIII Formula provides comprehensive cooling features that enable higher performance at lower temperatures.

CROSSCHILL EK III

EXPERTLY TOOLED TOTALLY COOLED CROSSCHILL EK III

CrossChill EK III lets you cool with air and water. The redesigned cooling channels provide wider copper, delivering up to 29.3°C-lower MOSFET temperatures on water, and the standard G1/4" threaded fittings mean CrossChill EK III easily fits existing setups - so you can enjoy efficient, quiet cooling with the minimum effort.

COOLER BY DESIGN

COMPREHENSIVE COOLING ZONE

ROG Crosshair VIII Formula features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

HEATSINKS

HEATSINKS

Heatsinks are extremely important for motherboards, as they absorb heat from critical areas to ensure components do not stagger due to overheating. With VRM, chipset and M.2 heatsinks, ROG Crosshair VIII Formula ensures efficient and stable operation even when pushed hard.

ACTIVE CHIPSET HEATSINK

ACTIVE CHIPSET HEATSINK DESIGN

PCle 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation.
The Formula features an actively cooled heatsink to prevent throttling during sustained transfers.

• Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
• DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
• Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
• ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
