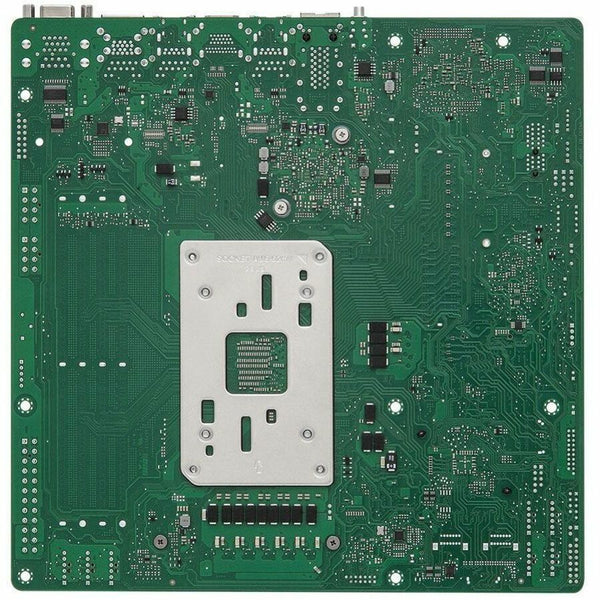

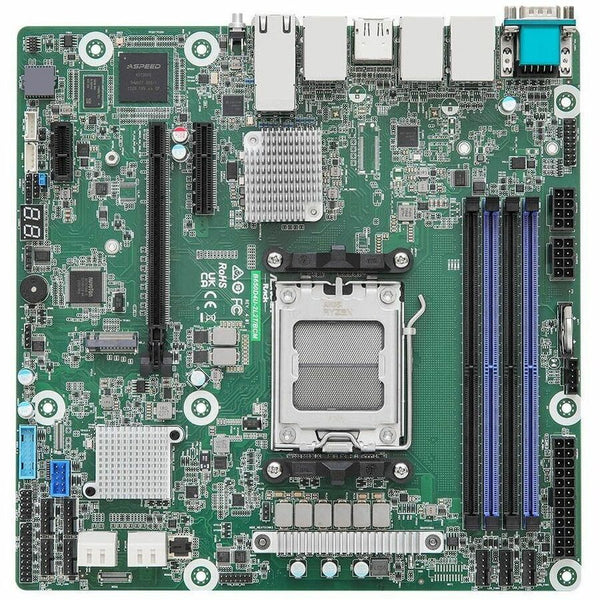

ASRock Rack B650D4U-2L2T/BCM Server Motherboard - AMD B650E Chipset - Socket AM5 - Micro ATX
SKU: B650D4U-2L2T/BCM
ASRock Rack B650D4U-2L2T/BCM Server Motherboard - AMD B650E Chipset - Socket AM5 - Micro ATX - EPYC, Ryzen 5, Ryzen 7, Ryzen 9 Processor Supported - 48 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
- Micro-ATX (9.6"x 9.6")
- Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
- Supports 1 M.2 (PCIe5.0 x4)

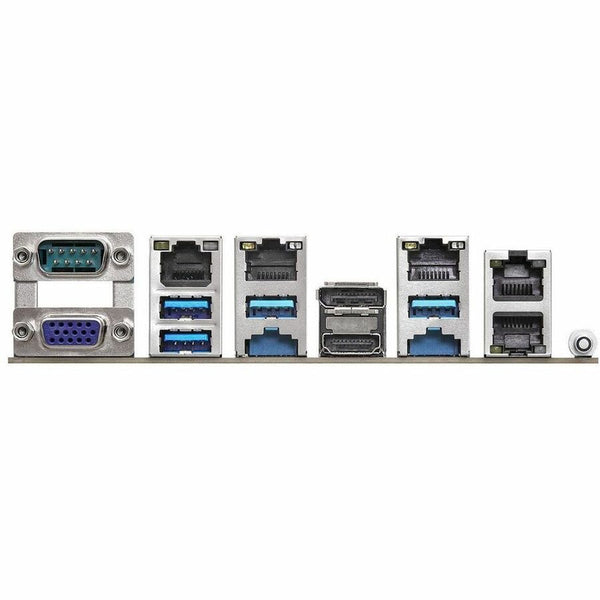

- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel®i210
- 4 SATA 6Gb/s
- 1 HDMI, 1 DisplayPort
- Remote management (IPMI)
Call for Availability
Regular price
$532.51
Shipping calculated at checkout
ASRock Rack B650D4U-2L2T/BCM Server Motherboard - AMD B650E Chipset - Socket AM5 - Micro ATX - EPYC, Ryzen 5, Ryzen 7, Ryzen 9 Processor Supported - 48 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
- Micro-ATX (9.6"x 9.6")
- Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
- Supports 1 M.2 (PCIe5.0 x4)
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel®i210
- 4 SATA 6Gb/s
- 1 HDMI, 1 DisplayPort
- Remote management (IPMI)
10Gigabit Ethernet:
Yes
Chipset Manufacturer:
AMD
Chipset Model:
B650E
Controller Type:
Serial ATA/600
DisplayPort:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Form Factor:
Micro ATX
Gigabit Ethernet:
Yes
Graphics Controller Model:
AST2600
HDMI:
Yes
Manufacturer:
ASRock Rack Inc
Manufacturer Website Address:
https://www.asrockrack.com/index.asp
Maximum Memory Supported:
48 GB
Memory Form Factor:
DIMM,UDIMM
Memory Speed Supported:
5200 MHz,3600 MHz
Memory Technology:
DDR5 SDRAM
Number of M.2 Interfaces:
1
Number of Memory Slots:
4
Number of Network (RJ-45) Ports:
5
Number of PCI Express x16 Slots:
1
Number of PCI Express x1 Slots:
1
Number of PCI Express x4 Slots:
1
Number of SATA Interfaces:
4
Number of USB 3.2 Gen 1 Type-A Ports:
4
Onboard Video:
CPU Dependent Video
PCI Express Standard:
PCI Express 4.0,PCI Express 5.0
Processor Socket:
Socket AM5
Processor Supported:
EPYC,Ryzen 5,Ryzen 7,Ryzen 9
Product Model:
B650D4U-2L2T/BCM
Product Type:
Server Motherboard
Total Number of Expansion Slots:
3
Total Number of PCI Express Slots:
3
Total Number of USB Ports:
4
Total Processor Supported:
1
VGA:
Yes
