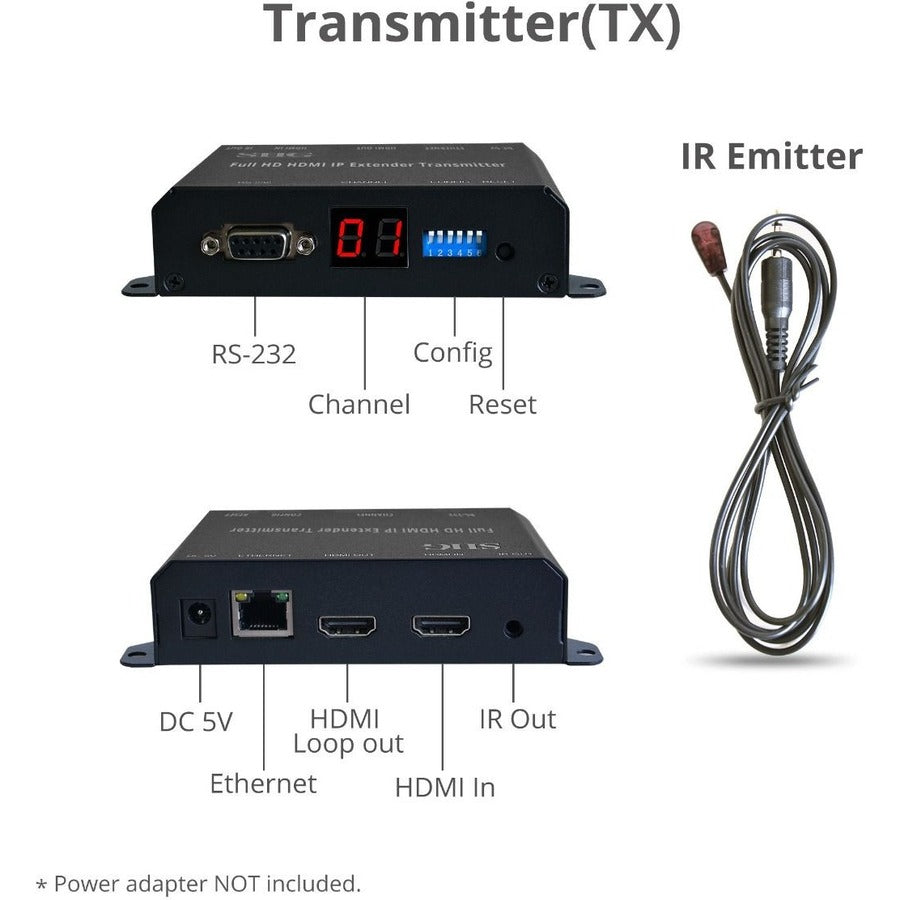

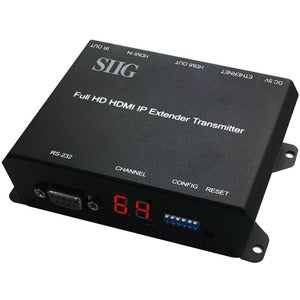

Full HD HDMI Extender over IP with PoE/RS-232 & IR - Encoder (TX)
SKU: CE-H26411-S1

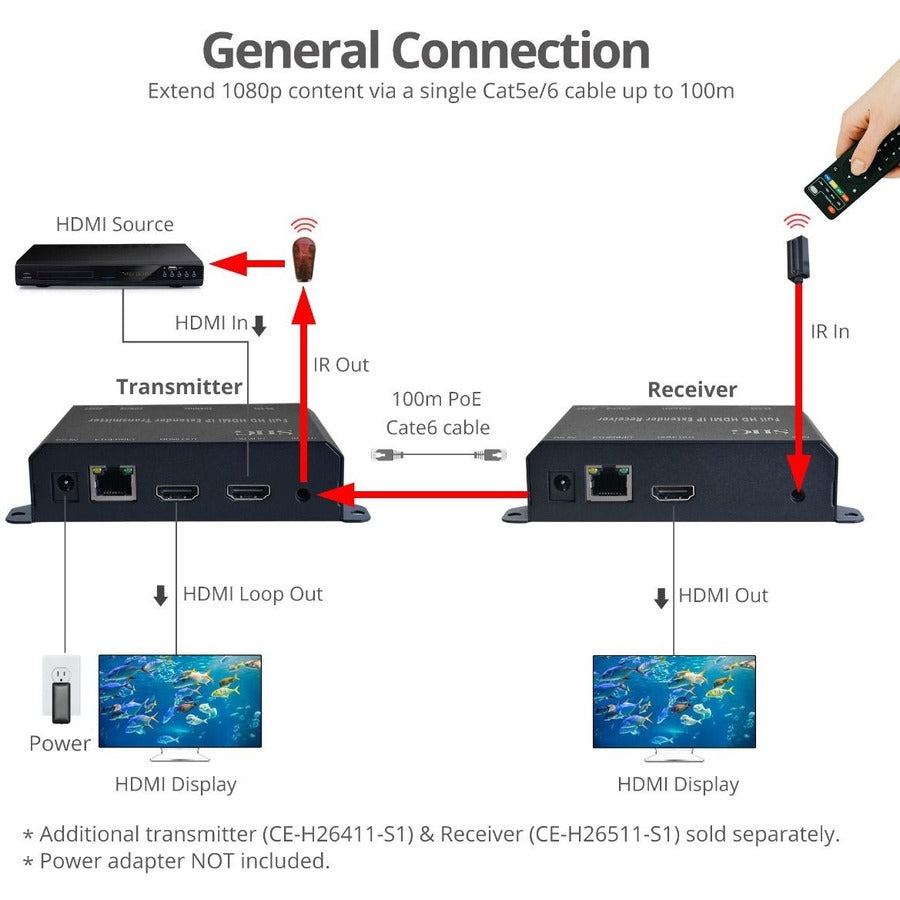

Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches
Features
Features
- Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Decoder (RX), part# CE-H26511-S1, sold separately

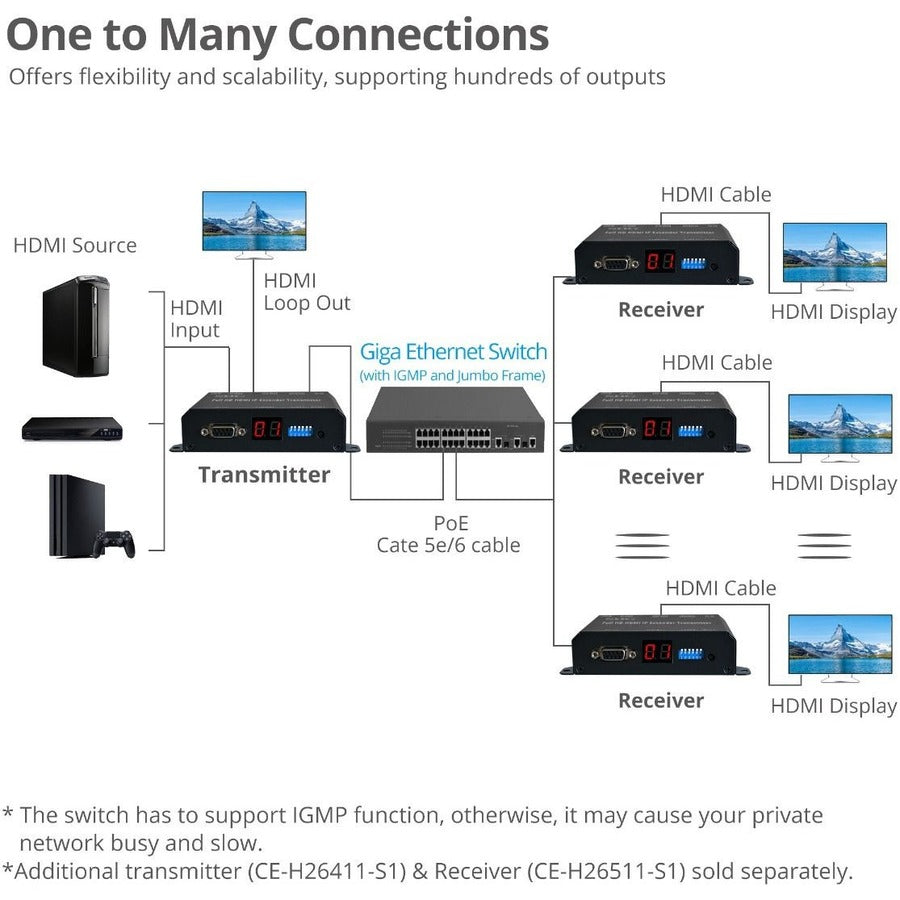

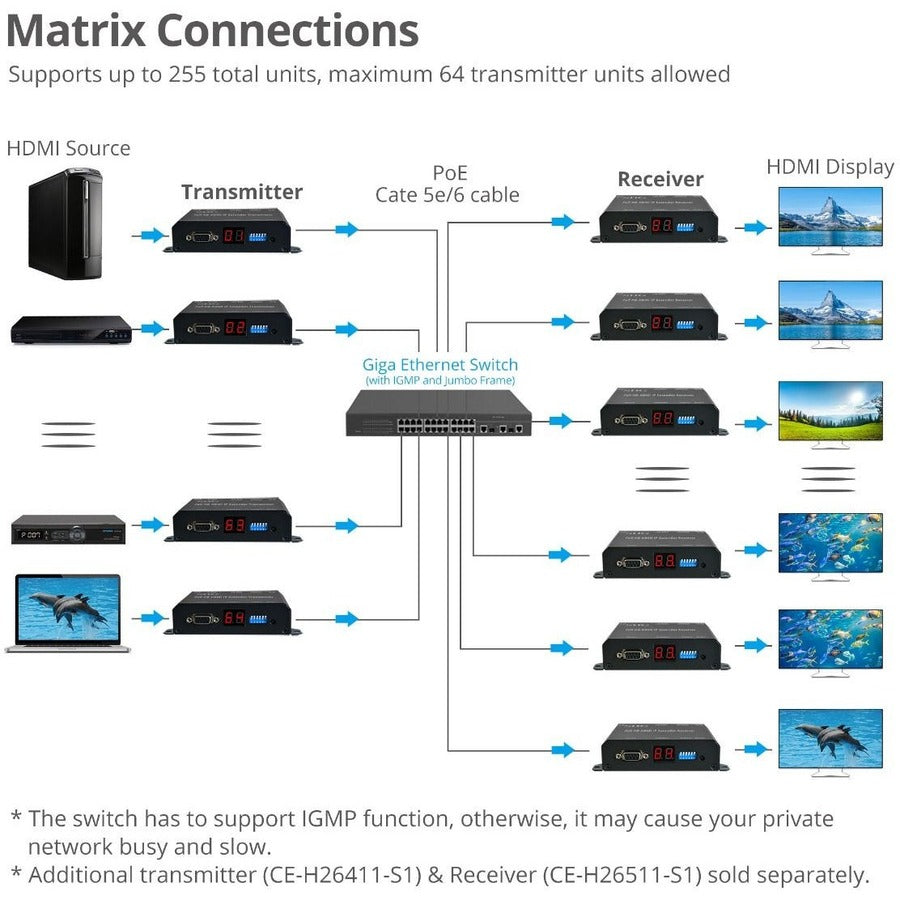

- Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
- Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
- Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
- Full HD 1080p video resolution delivers stunning and clear images
- Local HDMI loop-out allows you to monitor the extended display from the source location
- IR pass back function controls the source device from remote RX location
- Computer control software allows you to select and switch between source devices (Matrix mode only)
- Video protocol with H.264 compression over IP
- Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Call for Availability
Regular price
$166.45
Sale price
$194.95
On Sale
Shipping calculated at checkout
Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches
Features
Features
- Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Decoder (RX), part# CE-H26511-S1, sold separately
- Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
- Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
- Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
- Full HD 1080p video resolution delivers stunning and clear images
- Local HDMI loop-out allows you to monitor the extended display from the source location
- IR pass back function controls the source device from remote RX location
- Computer control software allows you to select and switch between source devices (Matrix mode only)
- Video protocol with H.264 compression over IP
- Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Connectivity Technology:
Wired
Country of Origin:
China
Device Type:
KVM Extender
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Graphic Mode:
Full HD
HDMI:
Yes
Limited Warranty:
2 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Operating Distance:
328.08 ft
Maximum Video Resolution:
1920 x 1080
Network (RJ-45):
Yes
Number of Computers Supported:
1
Number of HDMI Ports:
2
Number of Local Users Supported:
1
Number of Network (RJ-45) Ports:
1

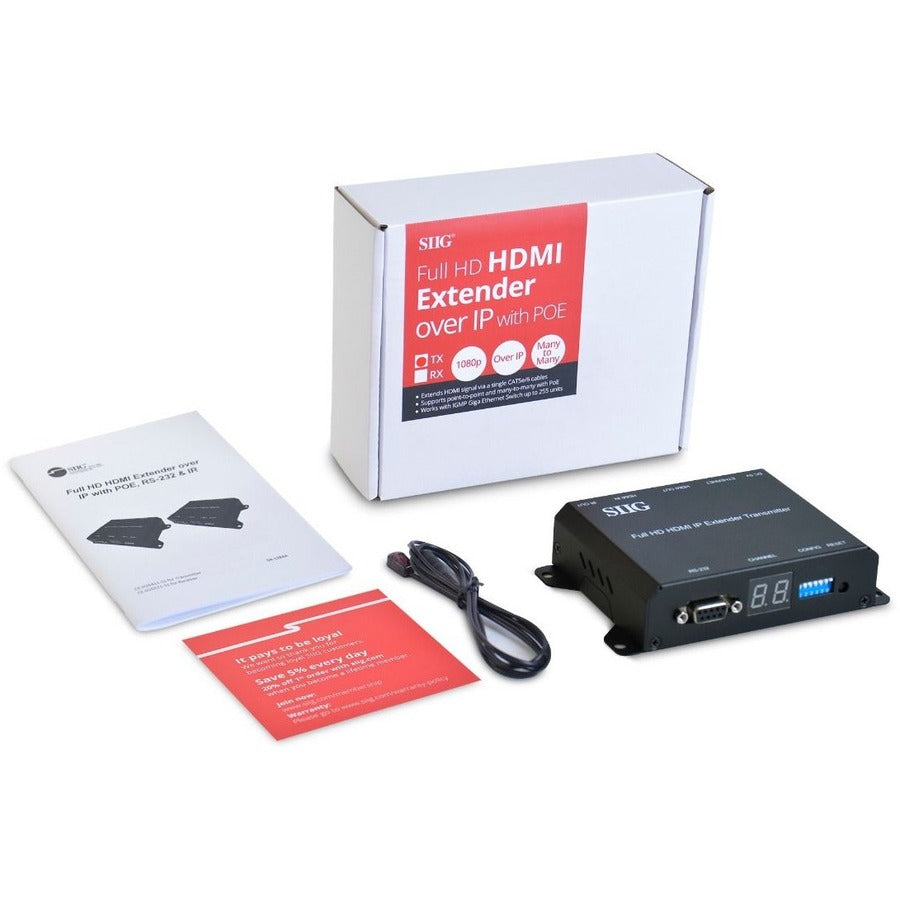

Package Contents:
- Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter
- 1 x IR Emitter cable
- Quick Start Guide
Product Color:
Black
Product Type:
KVM Extender Transmitter
Transmitter Depth:
1.19"
Transmitter Height:
3.23"
Transmitter Weight (Approximate):
10.24 oz
Transmitter Width:
5.12"
