Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna
SKU: MA240.LBI.001

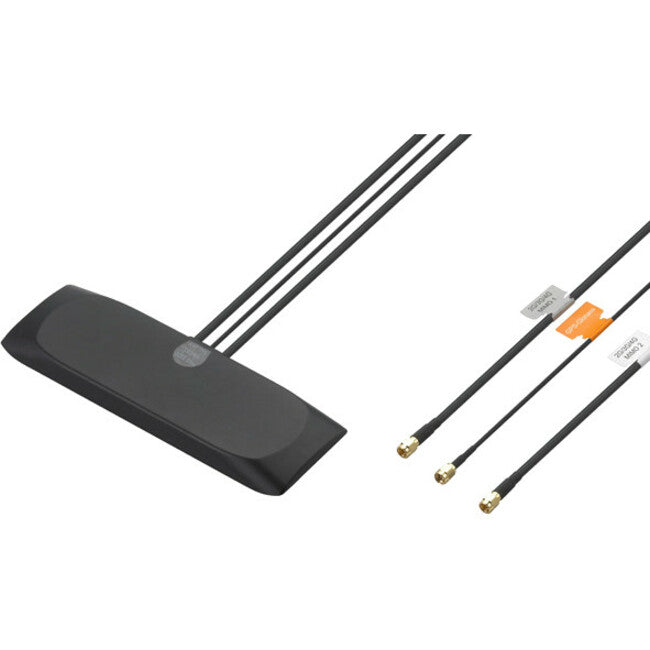

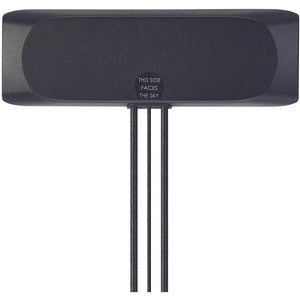

The MA.240 4G Genesis antenna is an omni-directional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications worldwide. It is designed to be mounted directly on glass or plastic in the interior of vehicles.
Typical applications
- HD Video over LTE
- First Responder and Emergency Services
- Automotive Vehicle Tracking and Telematics
This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz, plus GPS/GLONASS/GALILEO for next generation location accuracy.
4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller LTE antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.
Finally, if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals.
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
Typical applications
- HD Video over LTE
- First Responder and Emergency Services
- Automotive Vehicle Tracking and Telematics
This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz, plus GPS/GLONASS/GALILEO for next generation location accuracy.
4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller LTE antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.
Finally, if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals.
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
- RoHS Compliant
- Dimensions: 205.8mm x 58mm x 12.4mm
- 2 * LTE: 2 meter Low loss NFC-200 SMA(M)ST
- 1* GPS-GLONASS-GALILEO: 2 meter RG-174
- SMA(M)
- IP67 Antenna
Call for Availability
Regular price
$143.85
Shipping calculated at checkout
The MA.240 4G Genesis antenna is an omni-directional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications worldwide. It is designed to be mounted directly on glass or plastic in the interior of vehicles.
Typical applications
- HD Video over LTE
- First Responder and Emergency Services
- Automotive Vehicle Tracking and Telematics
This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz, plus GPS/GLONASS/GALILEO for next generation location accuracy.
4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller LTE antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.
Finally, if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals.
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
Typical applications
- HD Video over LTE
- First Responder and Emergency Services
- Automotive Vehicle Tracking and Telematics
This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz, plus GPS/GLONASS/GALILEO for next generation location accuracy.
4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller LTE antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.
Finally, if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals.
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
- RoHS Compliant
- Dimensions: 205.8mm x 58mm x 12.4mm
- 2 * LTE: 2 meter Low loss NFC-200 SMA(M)ST
- 1* GPS-GLONASS-GALILEO: 2 meter RG-174
- SMA(M)
- IP67 Antenna
Application/Usage:
GPS,GLONASS,Cellular Network
Connector Type:
SMA
Country of Origin:
Taiwan
Directivity:
Omni-directional
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Adhesive Mount
Limited Warranty:
1 Year
Manufacturer:
Taoglas
Manufacturer Website Address:
http://www.taoglas.com
Operating Frequency Range:
698 MHz to 803 MHz,824 MHz to 894 MHz,880 MHz to 960 MHz,1710 MHz to 1880 MHz,1850 MHz to 1990 MHz,1920 MHz to 2170 MHz,2490 MHz to 2690 MHz,3410 MHz to 3490 MHz
Packaged Quantity:
1
Product Color:
Black
Product Line:
Genesis
Product Model:
MA240
Product Type:
Antenna
