Panorama Antennas MAKO L[G]M[H]M4[B]-6-60[-24-58] Antenna

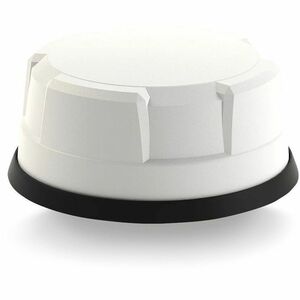

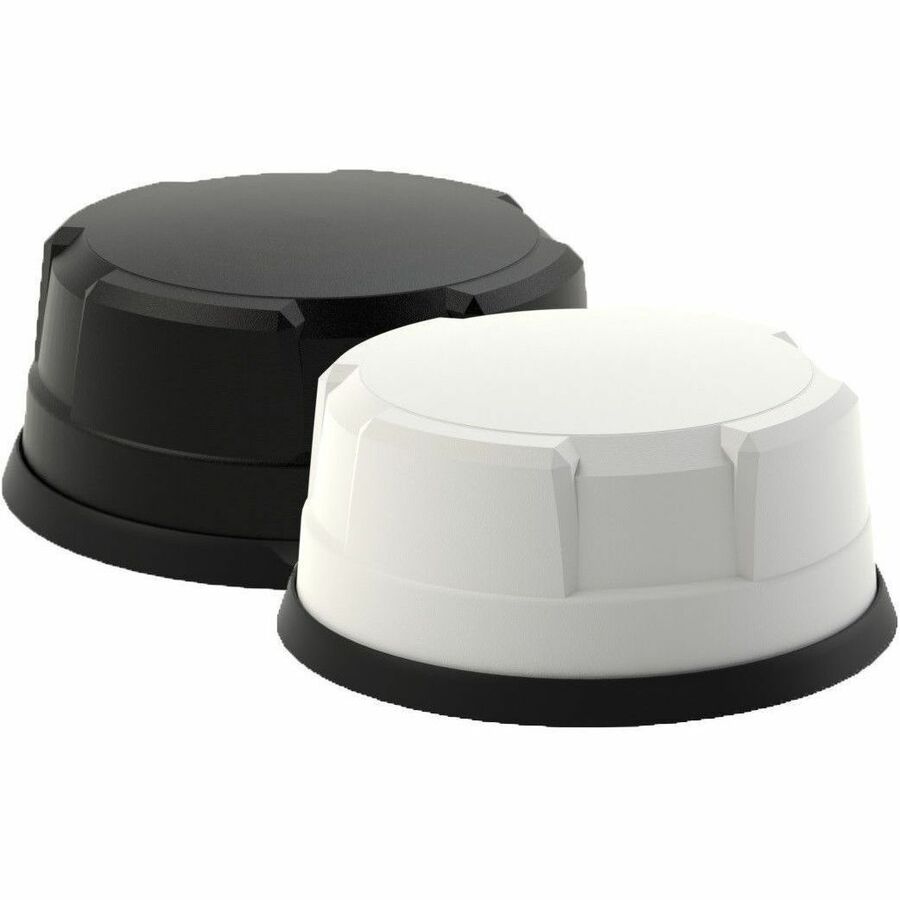

The MAKO® 5G Dome is a range of high-performance 4�4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2�2, 3�3 or 4�4, or 6�6 MiMo/Diversity at 2.4/5.0/7.2GHz. The MAKO® 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces. Although the LTE elements are designed for 4�4 MiMo operation, it is possible to utilize these as 2 pairs of 2�2 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable. Guidance on the correct connection of the LTE antennas is provided in the installation instructions. Please Note: This antenna is not intended for use with a router that has 2 SIMS to provide concurrent or aggregated data operation, as there is not sufficient isolation between the MiMo pairs.
- Delivers?enhanced performance at 617MHz to 960MHz operating frequency range
- Dramatically enhance the performance of cellular network with this antenna
- Offers up to 26 dB gain
- Provides ease of management and installation thanks to its omni-direction feature
- Provides ease of installation without sacrificing performance one bit
5 in stock
Shipping calculated at checkout
The MAKO® 5G Dome is a range of high-performance 4�4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2�2, 3�3 or 4�4, or 6�6 MiMo/Diversity at 2.4/5.0/7.2GHz. The MAKO® 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces. Although the LTE elements are designed for 4�4 MiMo operation, it is possible to utilize these as 2 pairs of 2�2 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable. Guidance on the correct connection of the LTE antennas is provided in the installation instructions. Please Note: This antenna is not intended for use with a router that has 2 SIMS to provide concurrent or aggregated data operation, as there is not sufficient isolation between the MiMo pairs.
- Delivers?enhanced performance at 617MHz to 960MHz operating frequency range
- Dramatically enhance the performance of cellular network with this antenna
- Offers up to 26 dB gain
- Provides ease of management and installation thanks to its omni-direction feature
- Provides ease of installation without sacrificing performance one bit
