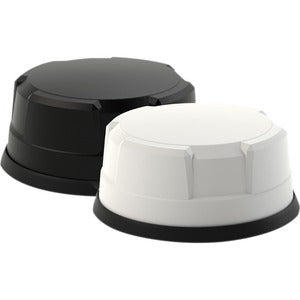

Panorama Antennas MAKO LGM Antenna
SKU: LGMDM4B-6-60-24-58
- Low Profile 4x4 4G/5G MiMo
- Up to 6x6 MiMo Dual Band WiFi
- Optional GPS/GNSS Active Antenna 26dB LNA
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
- Provides optimized pattern coverage with 617 MHz to 960 MHz operating frequency range
- Provides connectivity to your wireless data network, making it perfect for usage
- Operates at 26 dB gain
- Can be mounted as panel mount
Call for Availability
Regular price
$365.17
Shipping calculated at checkout
- Low Profile 4x4 4G/5G MiMo
- Up to 6x6 MiMo Dual Band WiFi
- Optional GPS/GNSS Active Antenna 26dB LNA
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
- Provides optimized pattern coverage with 617 MHz to 960 MHz operating frequency range
- Provides connectivity to your wireless data network, making it perfect for usage
- Operates at 26 dB gain
- Can be mounted as panel mount
Antenna Gain:
26 dB
Application/Usage:
Wireless Data Network,Cellular Network,GPS
Connector Type:
SMA,FME
Diameter:
7.09"
Form Factor:
Panel Mount
Manufacturer:
Panorama Antennas Ltd
Manufacturer Website Address:
http://www.panorama-antennas.com
Operating Frequency Range:
617 MHz to 960 MHz,1710 MHz to 3800 MHz,4900 MHz to 960 MHz,4.9 GHz to 7.2 GHz,1562 MHz to 1612 MHz
Product Color:
Black
Product Line:
MAKO
Product Series:
LGM
Product Type:
Antenna
