Panorama Antennas MAKO LGM Antenna
- Low Profile 4x4 4G/5G MiMo
- Up to 6x6 MiMo Dual Band WiFi
- Optional GPS/GNSS Active Antenna 26dB LNA
The L[G]M[X]M4[X]-6-60[-24-58] range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz or 4x4 WiFi 6E 2.4/4.9-7.2GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

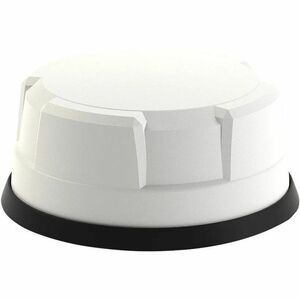

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
- Designed to operate at 617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 960 MHz 4.9 GHz to 7.2 GHz 1562 MHz to 1612 MHz frequency
- This antenna provides improved signals to your gps
- Provides gain of up to 26 dB
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Antenna can be mounted as panel mount
Call for Availability
Shipping calculated at checkout
- Low Profile 4x4 4G/5G MiMo
- Up to 6x6 MiMo Dual Band WiFi
- Optional GPS/GNSS Active Antenna 26dB LNA
The L[G]M[X]M4[X]-6-60[-24-58] range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz or 4x4 WiFi 6E 2.4/4.9-7.2GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
- Designed to operate at 617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 960 MHz 4.9 GHz to 7.2 GHz 1562 MHz to 1612 MHz frequency
- This antenna provides improved signals to your gps
- Provides gain of up to 26 dB
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Antenna can be mounted as panel mount
