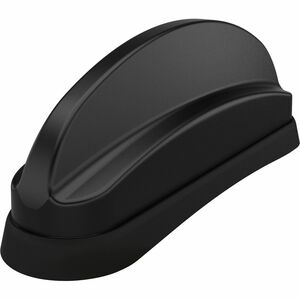

Panorama Antennas LP[G]AM[F]-6-60 Antenna
The LP[G]AM[F]-6-60 platform contains a 2�2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2�2, 3�3 or 4�4 MiMo dual-band WiFi, which supports WiFi 6E
An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.
This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.
- 2�2 MiMo 4G/5G LTE Antenna
- Low Profile Combination Product
- Up to 7 Antennas in 1 Housing
- Covers Wideband 600-6000MHz Frequencies
- Optional GPS/GNSS and up to 4�4 MiMo WiFi
- Meets IP69K Certification
5 in stock
Shipping calculated at checkout
The LP[G]AM[F]-6-60 platform contains a 2�2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2�2, 3�3 or 4�4 MiMo dual-band WiFi, which supports WiFi 6E
An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.
This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.
- 2�2 MiMo 4G/5G LTE Antenna
- Low Profile Combination Product
- Up to 7 Antennas in 1 Housing
- Covers Wideband 600-6000MHz Frequencies
- Optional GPS/GNSS and up to 4�4 MiMo WiFi
- Meets IP69K Certification
- LP[G]AM[F]-6-60 Antenna
- FR RG174 Cables
