Panorama Antennas Directional 2x2MiMo 4G/5G Antenna with GNSS
- 2x2 MiMo High Gain Directional Antenna for 4G/5G
- Frequency range 617-960/1710-6000MHz
- Integrated High Performance GPS/GNSS Antenna Module
- Suitable for wall or mast mounting

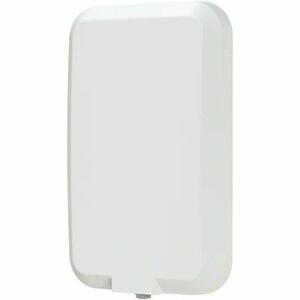

The WMM2GG-6-60 is a high gain directional 2x2 MiMo antenna for 4G and 5G networks. It incorporates two wideband element assemblies in a single housing and is designed to support fixed site client devices. It offers 6dBi peak gain for 617- 960MHz and 9dBi peak gain for 1710-6000MHz.
The antenna also includes an active, high performance GPS/GNSS antenna module with advanced filtering to give satellite acquisition resilience when used in LTE B13/14 and enables the user to have real time location of their asset.
The weather resistant housing is designed for wall or mast mounting with the supplied hardware.
The standard WMM2GG-6-60-5SP version has 5m length ultra-low loss CS32 type coaxial cables which eliminates exposed connector joints and simplifies the installation process.
The WMM2GG-6-60-05NJ version has 50cm length cables, fitted with N type jack, which is ideal for installations that require a longer cable run, where Panorama's CS240 or CS400 type coaxial cable can be used to minimise the cable insertion loss.
The WMM2GG-6-60 is a value added product for network operators and service providers by improving the link resilience to the router, achieving increased data rates for the subscriber, resulting in customer satisfaction and retention.
- Delivers?enhanced performance at 617 MHz to 960 MHz operating frequency range
- This antenna provides improved signals to your cellular network
- Operates at 26 dB gain
- With its directional feature, this antenna only picks up signals from a given direction, hence reducing interference levels
- Antenna can be mounted as mast
Call for Availability
Shipping calculated at checkout
- 2x2 MiMo High Gain Directional Antenna for 4G/5G
- Frequency range 617-960/1710-6000MHz
- Integrated High Performance GPS/GNSS Antenna Module
- Suitable for wall or mast mounting
The WMM2GG-6-60 is a high gain directional 2x2 MiMo antenna for 4G and 5G networks. It incorporates two wideband element assemblies in a single housing and is designed to support fixed site client devices. It offers 6dBi peak gain for 617- 960MHz and 9dBi peak gain for 1710-6000MHz.
The antenna also includes an active, high performance GPS/GNSS antenna module with advanced filtering to give satellite acquisition resilience when used in LTE B13/14 and enables the user to have real time location of their asset.
The weather resistant housing is designed for wall or mast mounting with the supplied hardware.
The standard WMM2GG-6-60-5SP version has 5m length ultra-low loss CS32 type coaxial cables which eliminates exposed connector joints and simplifies the installation process.
The WMM2GG-6-60-05NJ version has 50cm length cables, fitted with N type jack, which is ideal for installations that require a longer cable run, where Panorama's CS240 or CS400 type coaxial cable can be used to minimise the cable insertion loss.
The WMM2GG-6-60 is a value added product for network operators and service providers by improving the link resilience to the router, achieving increased data rates for the subscriber, resulting in customer satisfaction and retention.
- Delivers?enhanced performance at 617 MHz to 960 MHz operating frequency range
- This antenna provides improved signals to your cellular network
- Operates at 26 dB gain
- With its directional feature, this antenna only picks up signals from a given direction, hence reducing interference levels
- Antenna can be mounted as mast
