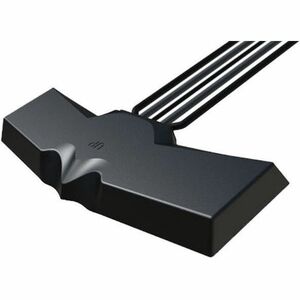

Panorama Antennas BATGM Antenna
The Panorama BAT is range of internal discrete/covert 'all in one' antennas with 2�2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2�2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e.
The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
- Designed to operate at 617MHz - 960MHz operating frequency range
- This antenna is ideal for use and provide connectivity to your vehicle
- Offers up to 26 dB gain
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Can be mounted as dash mount
Call for Availability
Shipping calculated at checkout
The Panorama BAT is range of internal discrete/covert 'all in one' antennas with 2�2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2�2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e.
The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
- Designed to operate at 617MHz - 960MHz operating frequency range
- This antenna is ideal for use and provide connectivity to your vehicle
- Offers up to 26 dB gain
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Can be mounted as dash mount
