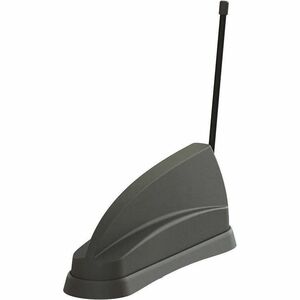

Panorama Antennas 4G/5G Sharkfin MiMo Antenna
The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential.
The GPSD 'Sharkee®' range has become a byword for industry leading technology in discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family.
The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.
The shark fin housing contains a 2�2 MiMo antenna function for 4G/5G (617- 960/1710-6000MHz) and the option of 2�2, 3�3, or 4�4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas. A blanking cap is supplied for when this is not required.
Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle's resale value.
- Covers 2�2 MiMo 4G/5G LTE
- OEM automotive style SharkFin housing
- Up to 4�4 MiMo WiFi and GPS/GNSS inside the distinctive sharkfin housing
- Single hole mounting - reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory fitted antenna
- Allows for a range of mobile radio whips
- Sleek semi-covert styling
- UN ECE R 118 Compliant Cable Feeds and IP69K Certified
Call for Availability
Shipping calculated at checkout
The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential.
The GPSD 'Sharkee®' range has become a byword for industry leading technology in discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family.
The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.
The shark fin housing contains a 2�2 MiMo antenna function for 4G/5G (617- 960/1710-6000MHz) and the option of 2�2, 3�3, or 4�4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas. A blanking cap is supplied for when this is not required.
Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle's resale value.
- Covers 2�2 MiMo 4G/5G LTE
- OEM automotive style SharkFin housing
- Up to 4�4 MiMo WiFi and GPS/GNSS inside the distinctive sharkfin housing
- Single hole mounting - reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory fitted antenna
- Allows for a range of mobile radio whips
- Sleek semi-covert styling
- UN ECE R 118 Compliant Cable Feeds and IP69K Certified
