Verkada

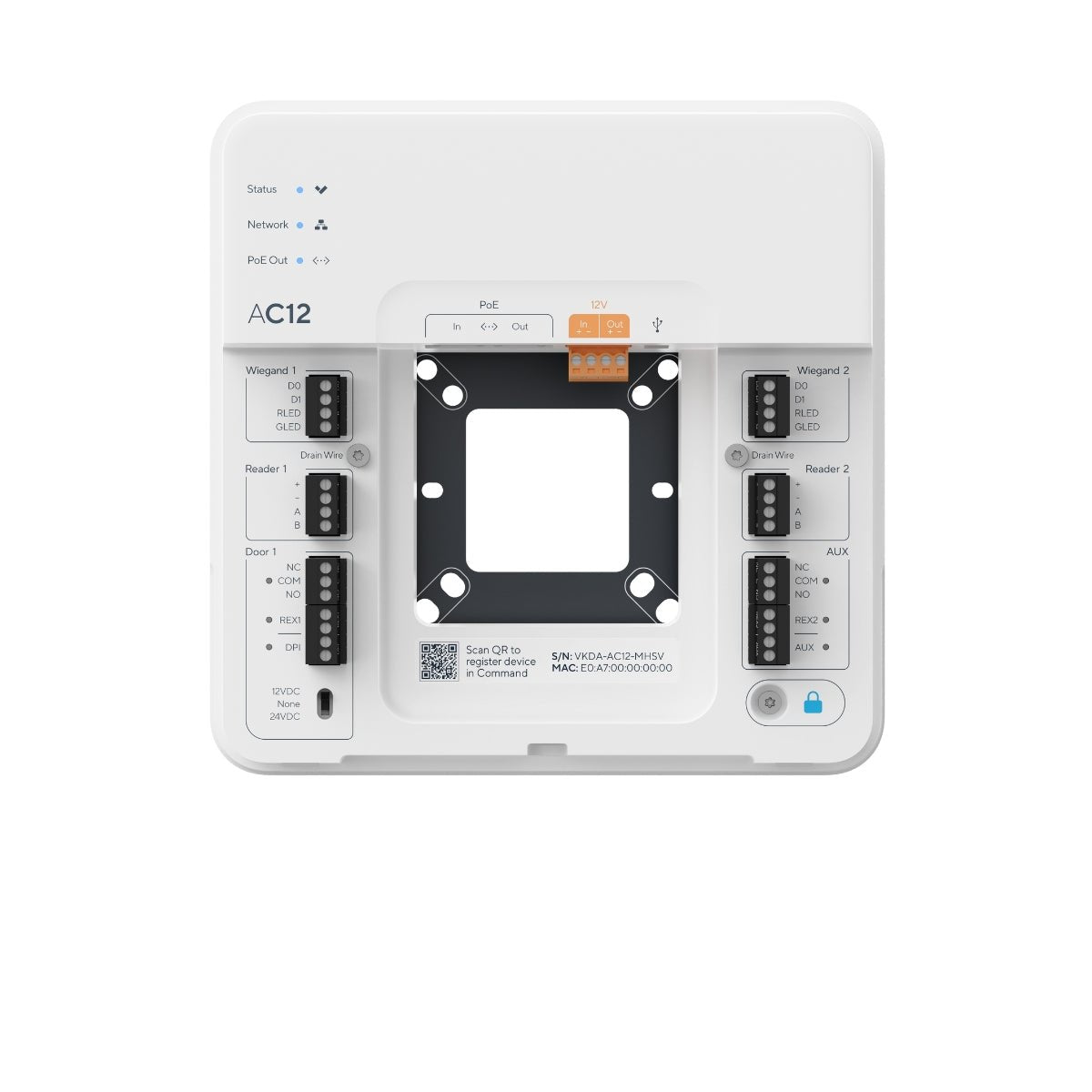

Verkada AC12 1 Door Controller

Name: Verkada AC12 1 Door Controller
Brand: Verkada
SKU: AC12-HW
Price: 699.0 USD
Availability: InStock

MFG SKU: AC12-HW

Remotely unlock functionality allows users to securely unlock any Verkada-secured door from Command or the Verkada Pass app.

Quantity:

Cloud License (Per Door)

1 Year $249

3 Year

5 Year

10 Year

In stock

Regular price $948

Shipping calculated at checkout

Submit Purchase Order

Request A Quote

Accessories

Product Specifications

Power and Network

Power Consumption	15W Max (on PoE) 28W Max (on PoE+) 60W Max (on PoE++ with PoE passthrough camera)
DC Power Output	1x 12VDC @ 100mA maximum

Inputs	2x REX dry inputs 1x DPI dry input 1x AUX input
Connectivity	Ethernet: 10/100/1000 Mbps RJ-45 for network connection USB 2.0

PoE Output	IEEE 802.3af/at PoE, PoE+ (37VDC - 57VDC), 600mA maximum

Reader and Relay Ports

Door Reader Ports	2x 12VDC @ 250mA Verkada / RS-485 ports, 2x 12VDC @ 250mA Wiegand ports
Relay Outputs	1x wet or dry relay Wet relay switch-selectable power: 12VDC operation 700mA max, 24VDC operation 350mA max

Relay Outputs (Aux Ports)	1x dry relay for auxiliary output with maximum pass-through power of 24VDC @ 2A (resistive load)

Compliance and Availability

Availability	USA, CAN, UK, EU
Compliance & Safety	FCC Part 15B Class B, ICES-003 Class B, CE, UKCA, VCCI, RCM, UL 294, CAN-ULC 60839-11-1, UL 62368-1, and CSA C22.2 No. 62368-1, IK06, compliant with requirements of UL 2043, indoor use only, to be used in controlled, protected, and/or restricted access areas.

General

Operating Temperature	0°C - 50°C (32°F - 122°F), 5 - 85% humidity
Weight	2.9 lbs (1.3 kg)

Dimensions	Length: 175.5mm / 6.9in Width: 55.3mm / 2.2in Height: 175.4mm / 6.9in
Mounting Options	Wall, ceiling, or Plenum mount

Included Accessories	T10 security Torx screwdriver, mounting hardware kit

Product Resources

Overview PDF Full Installation Guide

Play video

Why Verkada?

Verkada is leading the cloud-managed enterprise building security industry by enabling over 17,000 organizations in over 70 countries to protect their people and property in a way that respects individuals' privacy.

LEARN MORE

Play video

Watch Instant Demo

Simplify video security at scale. Verkada replaces obsolete equipment with technology that’s smart, secure and easy to manage. All cameras have built–in onboard storage, including extended storage options with up to 365 days of continuous recording in standard quality.

GET FREE TRIAL

Verkada AC12 1 Door Controller

Accessories

A Controller for Every Application

All Controllers Include

Automatic Firmware & Software Updates

Compute and Storage On-Device

10-Year Warranty

Automatic Cloud Backup

End-to-End Badge Solution

Remote Door Unlock

Normal Operation During Power / Internet Outages

Unlimited Users
