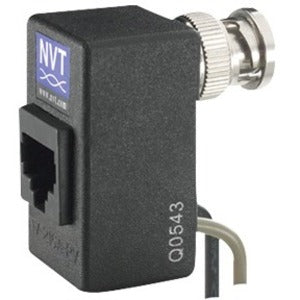

NVT Phybridge Power-Video Passive Transceiver

SKU: NV-216A-PV

NV-216A-PV Video Transceiver with Power is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

NV-216A-PV video transceiver allows transmission of CCTV video and low voltage power over UTP cable. The NV-216A-PV incorporates the transceiver engine of NVT's popular NV-214A-M video transceiver with the added value of camera power connections. Power and Video are routed via UTP and RJ45 connections. Used at the camera, the passive NV-216A-PV has a compact body, a male BNC for direct connection to the camera, and is compatible with NVT's PVD™ product line. Connect the RJ45 to 4-pair cable to be routed to the NVT Phybridge cable integrator and on to an active or passive receiver hub in the MDF/Control Room.

  • Is compliant with most standards and supports all kinds of audio embedding and de-embedding functions
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • The NV-216A-PV video extender transceiver provides plenty of freedom with wired connectivity
  • 3280.84 ft maximum operating distance for feasible operation and optimal coverage

Call for Availability

Regular price $57.89

Shipping calculated at checkout

Details

NV-216A-PV Video Transceiver with Power is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

NV-216A-PV video transceiver allows transmission of CCTV video and low voltage power over UTP cable. The NV-216A-PV incorporates the transceiver engine of NVT's popular NV-214A-M video transceiver with the added value of camera power connections. Power and Video are routed via UTP and RJ45 connections. Used at the camera, the passive NV-216A-PV has a compact body, a male BNC for direct connection to the camera, and is compatible with NVT's PVD™ product line. Connect the RJ45 to 4-pair cable to be routed to the NVT Phybridge cable integrator and on to an active or passive receiver hub in the MDF/Control Room.

  • Is compliant with most standards and supports all kinds of audio embedding and de-embedding functions
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • The NV-216A-PV video extender transceiver provides plenty of freedom with wired connectivity
  • 3280.84 ft maximum operating distance for feasible operation and optimal coverage
Specifications
Connectivity Technology:
Wired
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty:
Lifetime
Manufacturer:
Phybridge, Inc
Manufacturer Website Address:
http://www.phybridge.com
Maximum Operating Distance:
3280.84 ft
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Product Model:
NV-216A-PV
Product Type:
Video Extender Transceiver
