Black Box 4K USB 2.0 RS-232 Audio Video Extender DisplayPort

SKU: UVX-DP-TP-100M

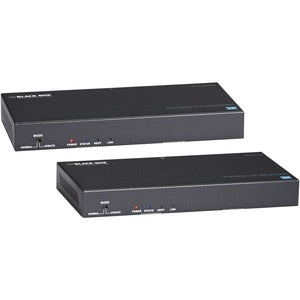

This Black Box DisplayPort & USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop, with USB 2.0 devices one can extend a keyboard, mouse and and other peripheral signals.

  • Simultaneously transmits bidirectional analog stereo audio
  • Access distant AV sources or even to control remote computers
  • Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color
  • Transmitting uncompressed video, native 4K@30 Hz UHD DisplayPort signals
  • Extend your signals as far as 100m over CAT6A/CAT7 cables
  • HDCP 2.2 compliant and supports EDID transmission
  • Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter
  • USB 2.0 passthrough

Call for Availability

Regular price $604.65

Shipping calculated at checkout

Details

This Black Box DisplayPort & USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop, with USB 2.0 devices one can extend a keyboard, mouse and and other peripheral signals.

  • Simultaneously transmits bidirectional analog stereo audio
  • Access distant AV sources or even to control remote computers
  • Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color
  • Transmitting uncompressed video, native 4K@30 Hz UHD DisplayPort signals
  • Extend your signals as far as 100m over CAT6A/CAT7 cables
  • HDCP 2.2 compliant and supports EDID transmission
  • Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter
  • USB 2.0 passthrough
Specifications
Connectivity Technology:
Wired
Country of Origin:
China
DisplayPort:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Graphics Modes:
4K
Limited Warranty:
3 Year
Manufacturer:
Black Box Corporation
Manufacturer Website Address:
http://www.blackbox.com
Maximum Operating Distance:
330 ft
Maximum Video Resolution:
3840 x 2160
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of Input Devices Supported:
1
Number of Network (RJ-45) Ports:
2
Number of Output Devices Supported:
1
Number of USB Ports:
3
Package Contents:
  • 1 x DisplayPort Transmitter
  • 1 x DisplayPort Receiver
  • 1 x 12-VDC, 2-A power supply with US, EU, UK, and AU power clips
  • 2 x 3.5-mm, 2-pin male Phoenix connectors
  • 2 x Mounting brackets
  • User manual
Product Condition:
New
Product Type:
Video Extender Transmitter/Receiver
Receiver Depth:
3.95"
Receiver Height:
0.99"
Receiver Weight (Approximate):
1.10 lb
Receiver Width:
7.91"
Transmitter Depth:
3.95"
Transmitter Height:
0.99"
Transmitter Weight (Approximate):
1.10 lb
Transmitter Width:
7.91"
Twisted Pair Cable Standard:
Category 7
USB:
Yes
