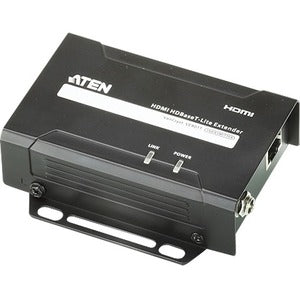

ATEN HDMI HDBaseT-Lite Transmitter (HDBaseT Class B)-TAA Compliant
SKU: VE801T

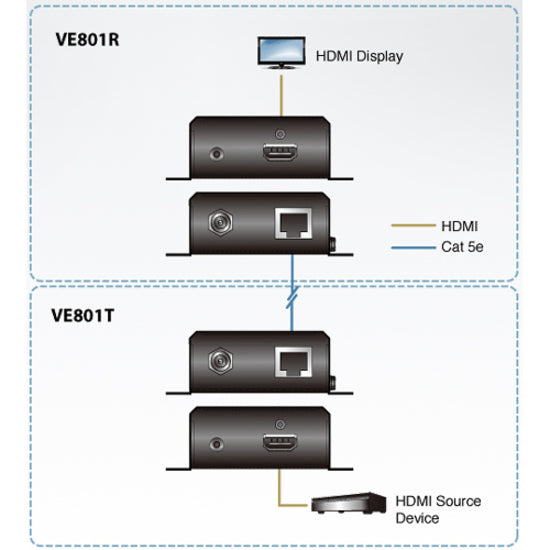

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.
- Plug-and-play
- Rack-mountable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
Call for Availability
Regular price
$147.46
Sale price
$150
On Sale
Shipping calculated at checkout
The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.
- Plug-and-play
- Rack-mountable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
Connectivity Technology:
Wired
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Form Factor:
Rack-mountable
Graphics Modes:
4K
HDMI In:
Yes
Manufacturer:
ATEN Technology, Inc
Manufacturer Website Address:
http://www.aten.com/us/en/
Maximum Operating Distance:
70.87"
Maximum Video Resolution:
4096 x 2160
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Inputs:
1
Number of Input Devices Supported:
1
Number of Network (RJ-45) Ports:
2
Package Contents:
- VE801T HDMI HDBaseT-Lite Extender
- 1 x Power Adapters
- 1 x User Instructions
Product Line:
VanCryst
Product Model:
VE801T
Product Type:
Video Extender Transmitter
Transmitter Depth:
3.88"
Transmitter Height:
1.18"
Transmitter Weight (Approximate):
8.47 oz
Transmitter Width:
3.43"
Twisted Pair Cable Standard:
Category 6a
