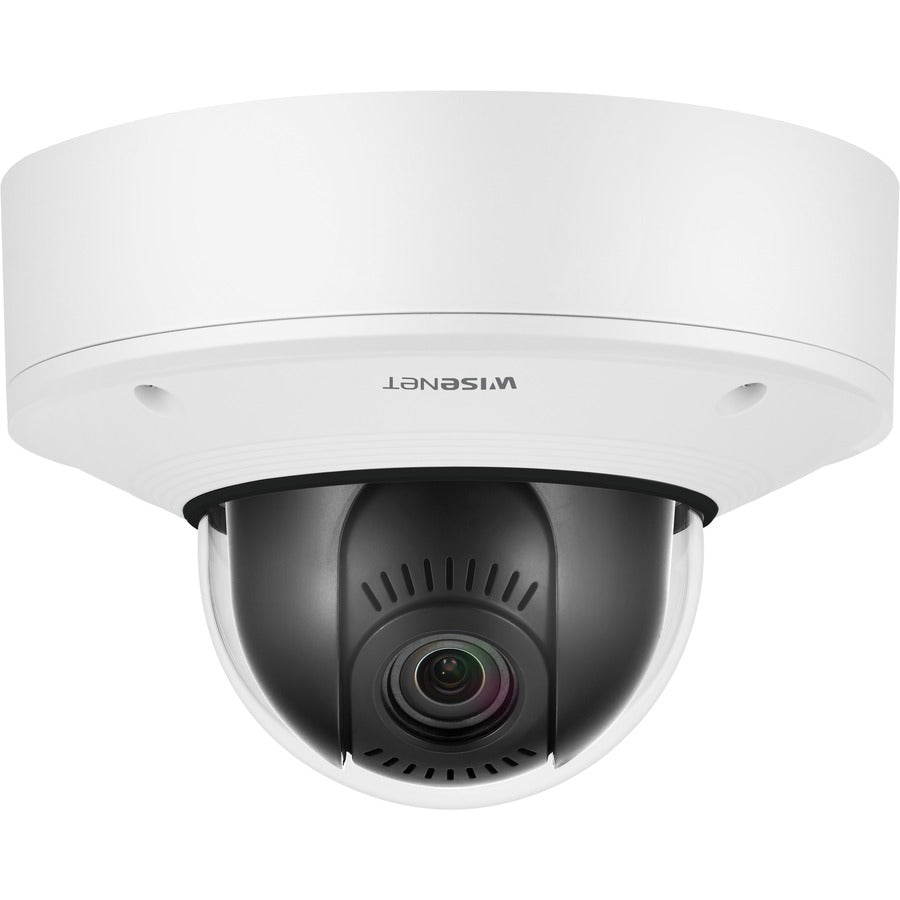

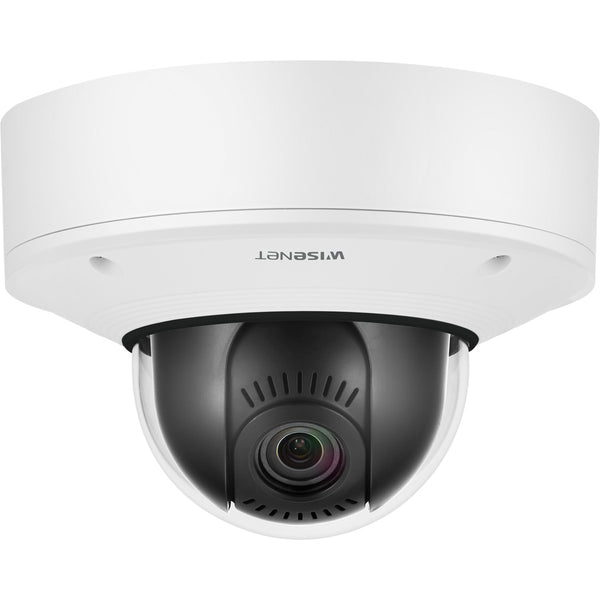

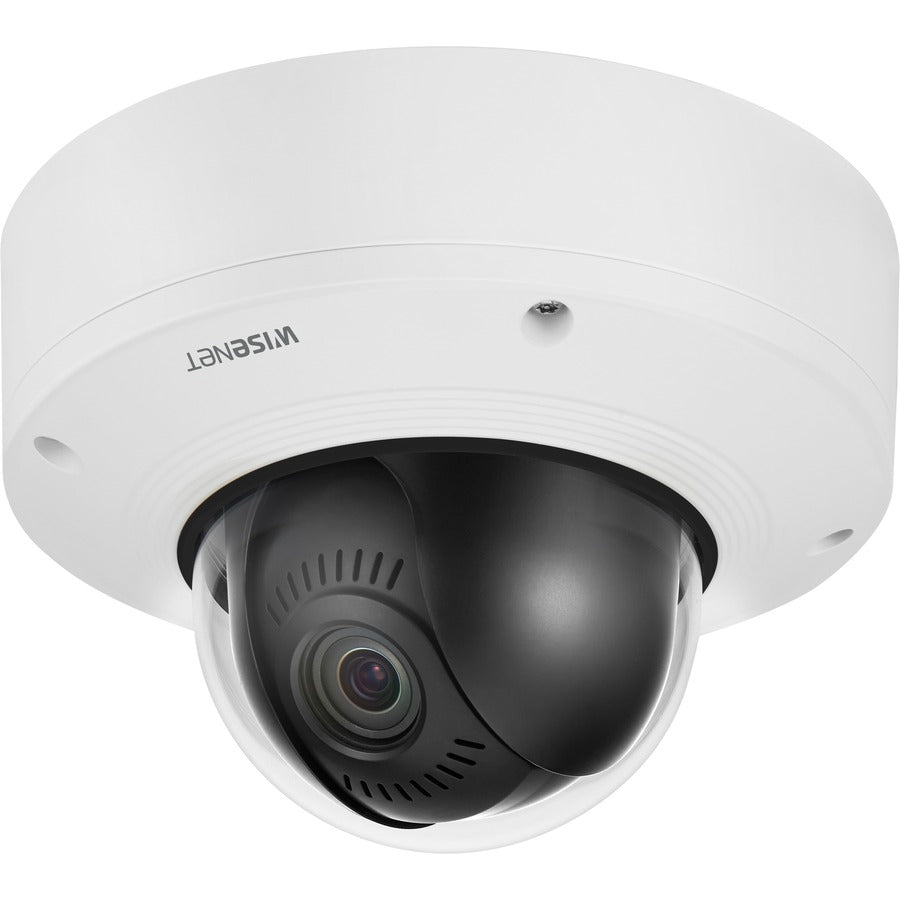

Wisenet XNV-8081Z 5 Megapixel Outdoor Network Camera - Color, Monochrome - Dome - White

SKU: 5533025

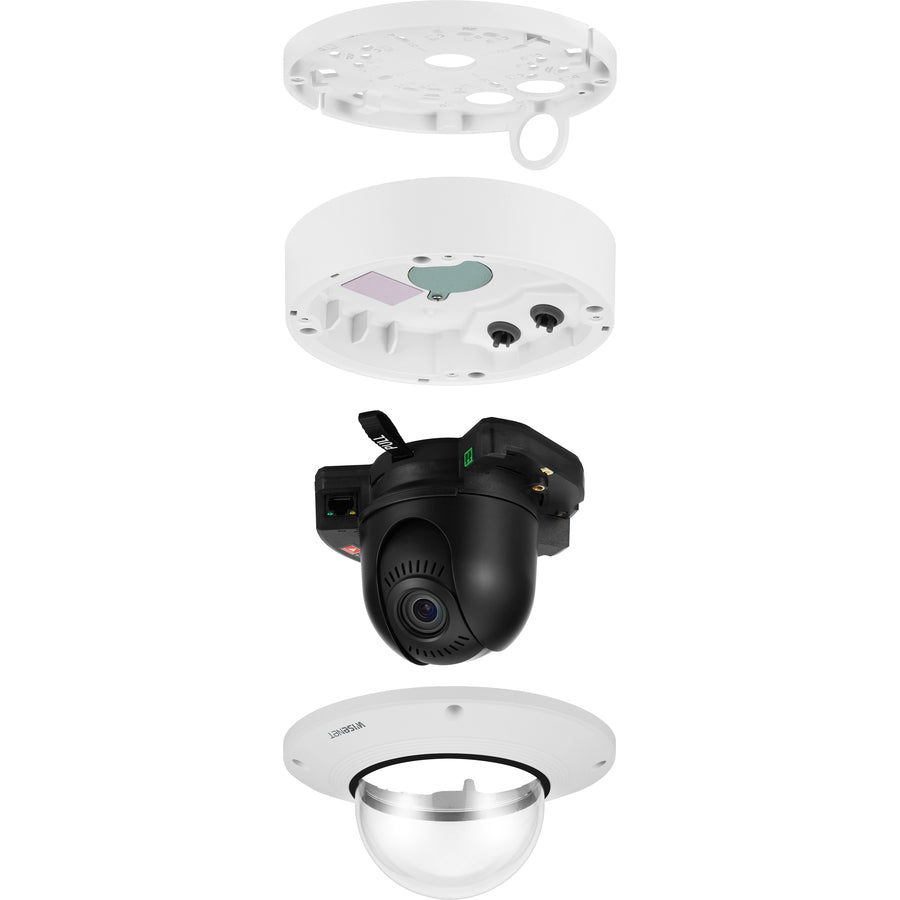

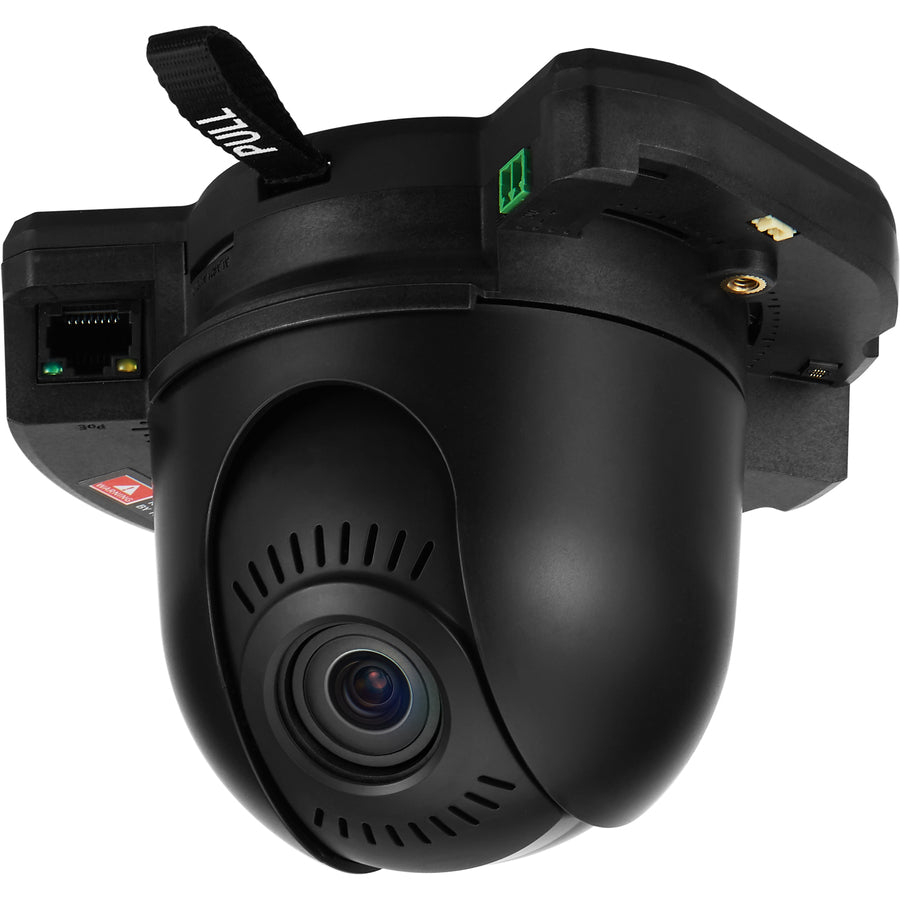

The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

  • LDC support (Lens Distortion Correction)
  • Hallway view, WiseStreamII support, IP67/IP66/IP6K9K, IK10+, NEMA 4X
  • Dual SD/SDHC/SDXC memory slots (Max. 512GB)
  • Motion detection, Handover, Audio event playback
  • Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Day & Night (ICR), WDR (120dB), Defog
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • 30fps@all resolutions (H.265/H.264)
  • 2.6x (3.6~9.4mm) motorized varifocal lens with PTRZ
  • 5 megapixel resolution

Call for Availability

Regular price $1,850

Shipping calculated at checkout

Details

The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

  • LDC support (Lens Distortion Correction)
  • Hallway view, WiseStreamII support, IP67/IP66/IP6K9K, IK10+, NEMA 4X
  • Dual SD/SDHC/SDXC memory slots (Max. 512GB)
  • Motion detection, Handover, Audio event playback
  • Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Day & Night (ICR), WDR (120dB), Defog
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • 30fps@all resolutions (H.265/H.264)
  • 2.6x (3.6~9.4mm) motorized varifocal lens with PTRZ
  • 5 megapixel resolution
Specifications
Color Family:
White
Color Supported:
Color,Monochrome
Connectivity Technology:
Wired
Diameter:
7.1"
Durability:
Vandal Resistant
Effective Camera Resolution:
5 Megapixel
Features:
SD Card Local Storage,Defog,Gain Control,White Balance,Wide Dynamic Range,Day/Night,Motion Detection,Audio Compression,Privacy Masking,Digital Noise Reduction
Field of View:
H : 102.5°(Wide)~38.7°(Tele) V : 74.2°(Wide)~29.0°(Tele) D : 135.5°(Wide)~48.6°(Tele)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10+
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
IP67,IP66,IP6K9K
Input Voltage:
24 V AC
Lens Included:
Yes
Lens Type:
Zoom
Limited Warranty:
3 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/2.4
Maximum Focal Length:
9.40 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
90%
Maximum Operating Temperature:
140°F (60°C)
Maximum Video Resolution:
2560 x 1920
Minimum Aperture:
f/1.2
Minimum Focal Length:
3.60 mm
Minimum Operating Temperature:
-58°F (-50°C)
Mount Type:
Ceiling Mount,Roof Mount,Parapet Mount,Wall Mount,Pole Mount,Box Mount
Network (RJ-45):
Yes
Optical Zoom:
2.6x
Package Contents:
  • 5MP Vandal-Resistant Outdoor Network Dome PTRZ Camera
  • Weathercap
  • Ivory Skin
Product Color:
White
Product Model:
XNV-8081Z
Product Series:
X
Product Type:
Network Camera
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
Video Formats:
MJPEG,H.264,H.265
